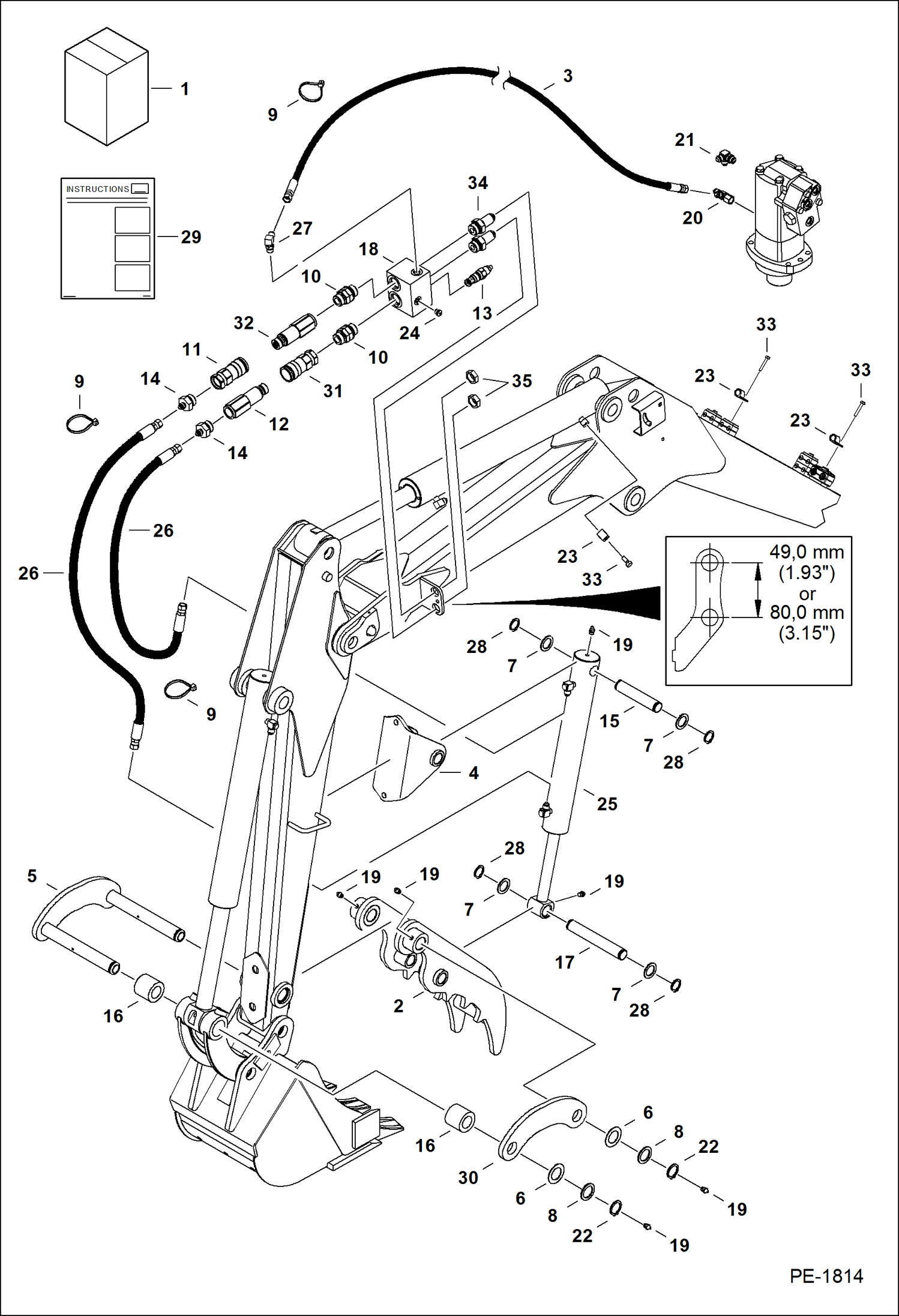

Запчасти Bobcat CLAMPS CLAMP (320,322,323) Экскаваторы

1

CLAMP KIT SALES - Clamp kit - Sales # 7110207 - Was Sales # 6812999 - A

2

6810917

CLAMP

3

6813303

HOSE

4

6812851

MOUNT

5

6812920

LINK

6

6533856

SHIM

7

6573567

WASHER

8

6589699

WASHER

9

6624289

STRAP, TIE

10

6655444

ADAPTER

11

6672960

COUPLER, FF FEMALE straight

12

6674688

COUPLER, FF MALE straight

13

6678571

VALVE relief

14

15KB0612

FITTING, HYD CONNECTOR

15

6812913

PIN

16

6812923

BUSHING

17

6812929

PIN

18

6813231

BLOCK

19

10H25

FITTING, GREASE 5

20

13K5

TEE Use on 320, 322, & 323

20

7102019

CROSS Use on 324

21

17KB0606

FITTING

22

22J16

SNAP RING

23

22J19

SNAP RING

24

30H30

CLAMP

25

90K3

PLUG

26

6901764

INSTRUCTIONS

27

6810475

CYLINDER See Illustration CLAMP/ B14357 Was 6807513 - A

28

7162588

HOSE, HYD Was 7110208 - B

29

6589229

LINK

30

BOLT not in kit

31

ADAPTER not in kit

32

COUPLER not in kit

33

COUPLER not in kit

34

SPACER not in kit

35

BOLT not in kit
