Запчасти Bobcat CHIPPER 8B CHIPPER (Pump) (A02B00158 - 00364) Loader

1

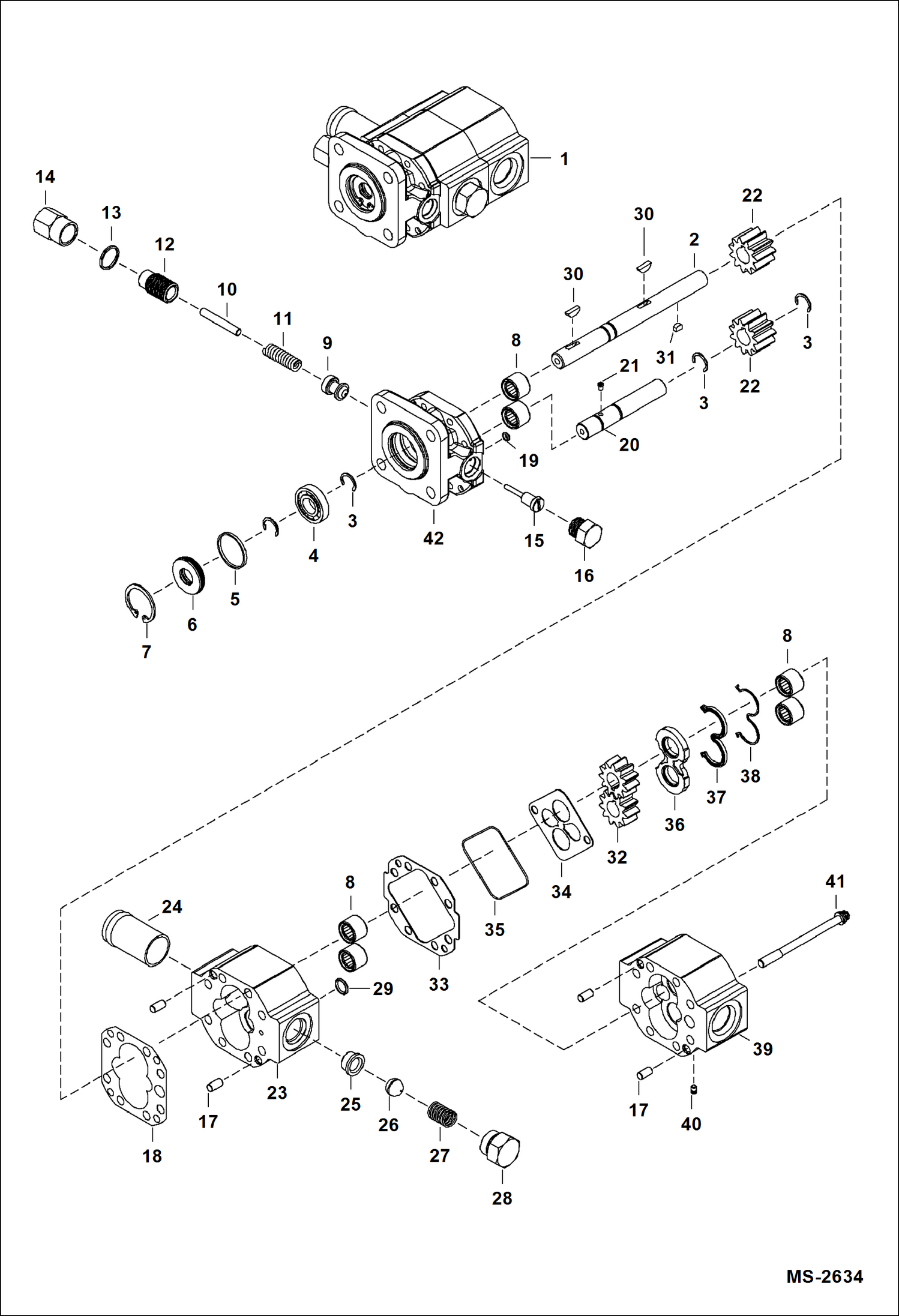

PUMP See Illustration 8B CHIPPER/ NA6278 - NLA - Model 36015-00 - Order 7023115 pump & (2) of 7023116 clamps - Was 7000347 - A

2

SHAFT NLA - Was 6693456 - A

3

RING NLA - Was 6693445 - A

4

BEARING NLA - Was 6693463 - A

5

SPACER NLA - Was 6693462 - A

6

SEAL NLA - Was 6693434 - A

7

SNAP RING NLA - Was 6693461 - A

8

BEARING NLA - Was 6693424 - A

9

PLUNGER NLA - Was 6693439 - A

10

PIN NLA - Was 6693443 - A

11

SPRING NLA - Was 6693430 - A

12

SCREW NLA - Was 6693435 - A

13

GASKET NLA - Was 6693447 - A

14

NUT NLA - Was 6693437 - A

15

VALVE NLA - Was 6693438 - A

16

PLUG NLA - Was 6693457 - A

17

PIN NLA - Was 6693444 - A

18

KIT NLA - Was 6693452 - A

18

GASKET NLA - amber - Was 6693453 - A

18

GASKET NLA - gold - Was 6693454 - A

18

GASKET NLA - silver - Was 6693455 - A

19

SEAL NLA - Was 6693432 - A

20

SHAFT NLA - Was 6693423 - A

21

PIN NLA - Was 6693442 - A

22

GEAR NLA - Was 6693441 - A

23

7000351

HOUSING, GEAR ASSY

24

7000352

FITTING, HYD STRAIGHT

25

SEAT NLA - Was 6693428 - A

26

BALL NLA - Was 6693459 - A

27

SPRING NLA - Was 6693431 - A

28

CAP NLA - Was 6693458 - A

29

SEAL NLA - Was 6693433 - A

30

KEY NLA - Was 6693446 - A

31

KEY NLA - Was 6693460 - A

32

GEAR NLA - Was 6693440 - A

33

7000353

PLATE, SEAL

34

7000354

PLATE, WEAR

35

7000355

SEAL

36

7000356

PLATE, PRESSURE

37

7000357

SEAL

38

7000358

SEAL

39

7000359

HOUSING, GEAR ASSY

40

PLUG NLA - Was 6693464 - A

41

BOLT NLA - Was 6693436 - A

42

STATOR NLA - Was 6693429 - A
