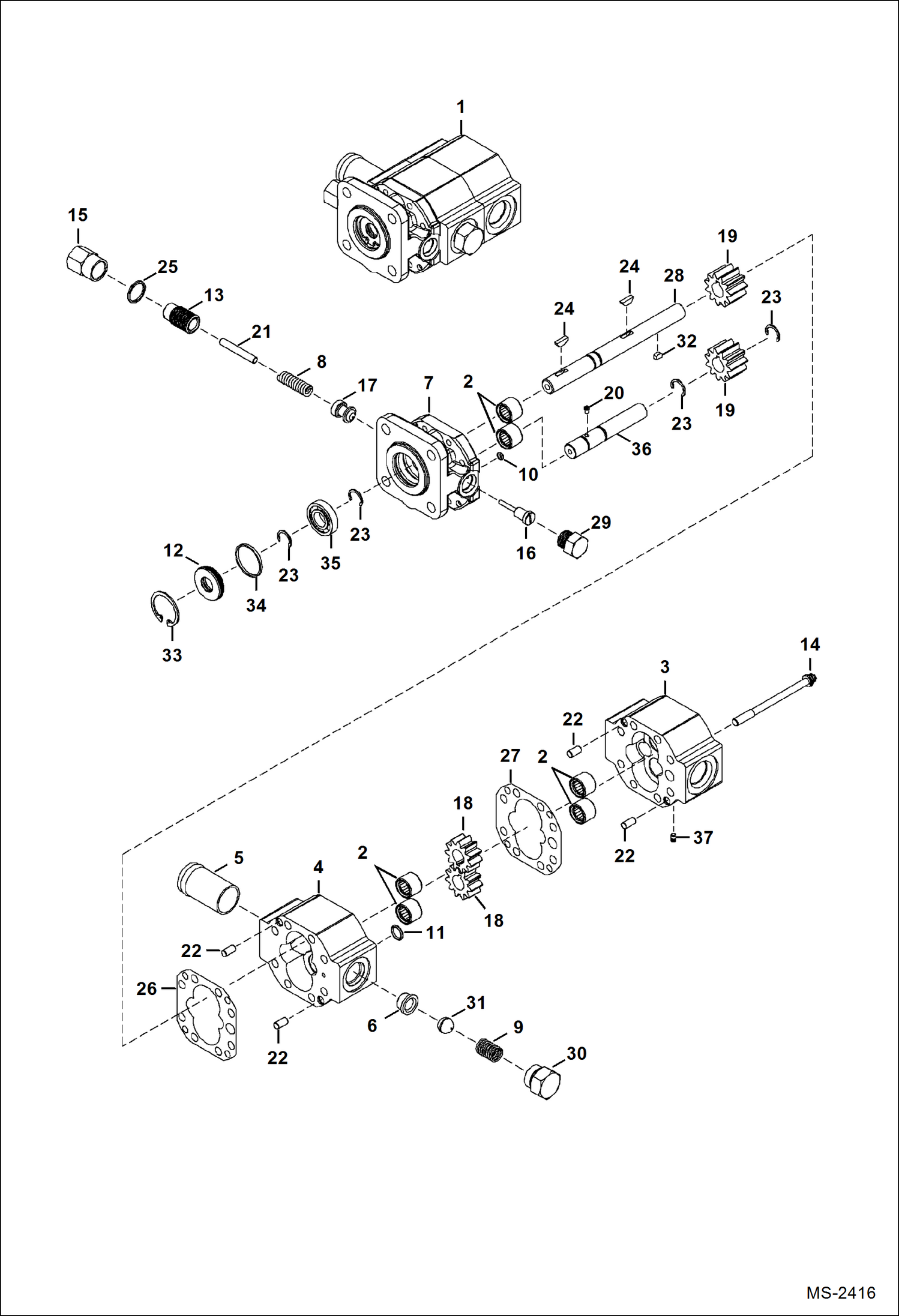

Запчасти Bobcat CHIPPER 8B CHIPPER (Pump) (A02B00101 - 00157) Loader

1

PUMP See Illustration 8B CHIPPER/ MS2634 - NLA - Model 18525-00 - Order 7023115 pump, 7000348 hose, 7000349 adapter & (2) of 7023116 clamps - Was 6692404 - A

2

BEARING NLA - Was 6693424 - A

3

HOUSING NLA - Was 6693425 - A

4

HOUSING NLA - Was 6693426 - A

5

TUBE NLA - Was 6693427 - A

6

SEAT NLA - Was 6693428 - A

7

STATOR NLA - Was 6693429 - A

8

SPRING NLA - Was 6693430 - A

9

SPRING NLA - Was 6693431 - A

10

SEAL NLA - Was 6693432 - A

11

SEAL NLA - Was 6693433 - A

12

SEAL NLA - Was 6693434 - A

13

SCREW NLA - Was 6693435 - A

14

BOLT NLA - Was 6693436 - A

15

NUT NLA - Was 6693437 - A

16

VALVE NLA - Was 6693438 - A

17

PLUNGER NLA - Was 6693439 - A

18

GEAR NLA - Was 6693440 - A

19

GEAR NLA - Was 6693441 - A

20

PIN NLA - Was 6693442 - A

21

PIN NLA - Was 6693443 - A

22

PIN NLA - Was 6693444 - A

23

RING NLA - Was 6693445 - A

24

KEY NLA - Was 6693446 - A

25

GASKET NLA - Was 6693447 - A

26

KIT NLA - Was 6693448 - A

26

GASKET NLA - silver - Was 6693449 - A

26

GASKET NLA - amber - Was 6693450 - A

26

GASKET NLA - gold - Was 6693451 - A

27

KIT NLA - Was 6693452 - A

27

GASKET NLA - amber - Was 6693453 - A

27

GASKET NLA - gold - Was 6693454 - A

27

GASKET NLA - silver - Was 6693455 - A

28

SHAFT NLA - Was 6693456 - A

29

PLUG NLA - Was 6693457 - A

30

CAP NLA - Was 6693458 - A

31

BALL NLA - Was 6693459 - A

32

KEY NLA - Was 6693460 - A

33

SNAP RING NLA - Was 6693461 - A

34

SPACER NLA - Was 6693462 - A

35

BEARING NLA - Was 6693463 - A

36

SHAFT NLA - Was 6693423 - A

37

PLUG NLA - Was 6693464 - A
