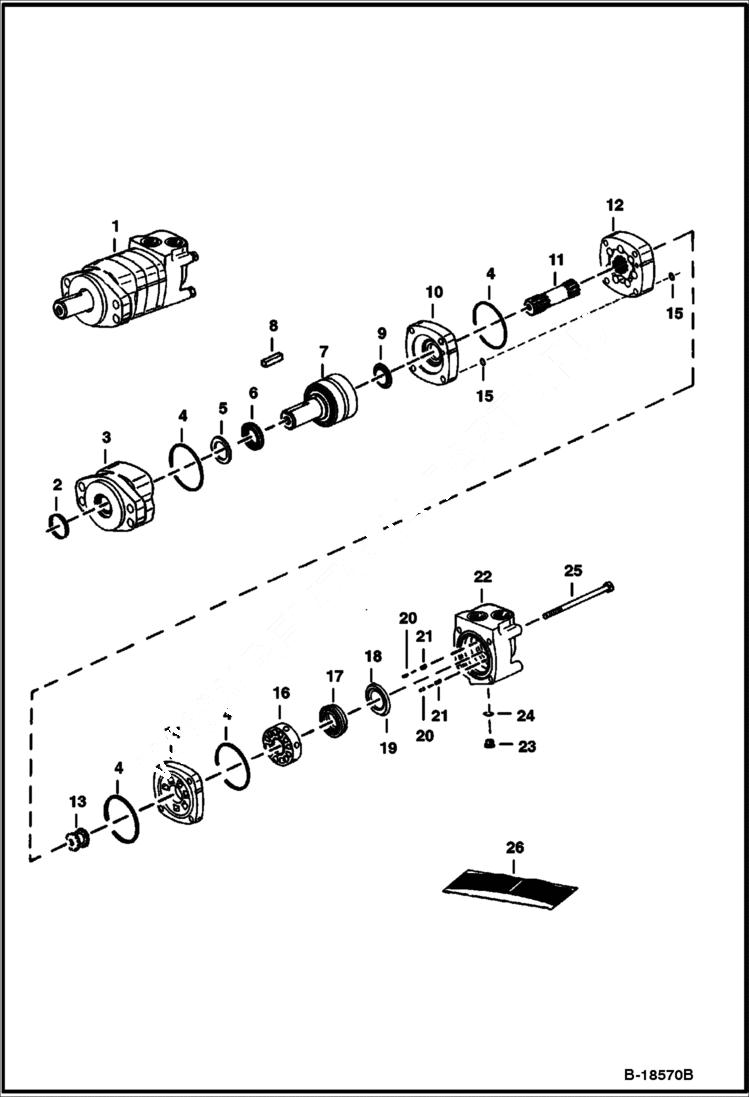

Запчасти Bobcat CHIPPER 8B CHIPPER Feed Roller Motor - Eaton (04-3579-006) Loader

1

6675267

MOTOR

2

6630029

SEAL shaft - 1.28'' ID x 1.57'' OD x .13'' wide

3

6675491

HOUSING

4

6662955

SEAL

5

6659511

BACKUP RING

6

6689096

SEAL shaft - Was 6665224 - A

7

6632290

SHAFT ASSY

8

6632292

KEY

9

1992098

SEAL

10

6632286

WEAR PLATE

11

6675492

SHAFT

12

6675493

GEROLER

13

1992084

DR VALVE

14

6656368

PLATE

15

O-RING NSS

16

6632288

VALVE

17

6630027

BALANCE RING

18

1992100

SEAL inner

19

SEAL NLA - Order Ref. 26 seal kit - Was 6653300 - A

20

1992102

PIN

21

1992088

SPRING

22

6632348

HOUSING

23

1992104

PLUG W/Ref. 24

24

6664822

O-RING

25

6675494

BOLT

26

6648973

KIT, SEAL W/Ref. 2, 4 - 6, 9, 15, 18, 19 & 24
