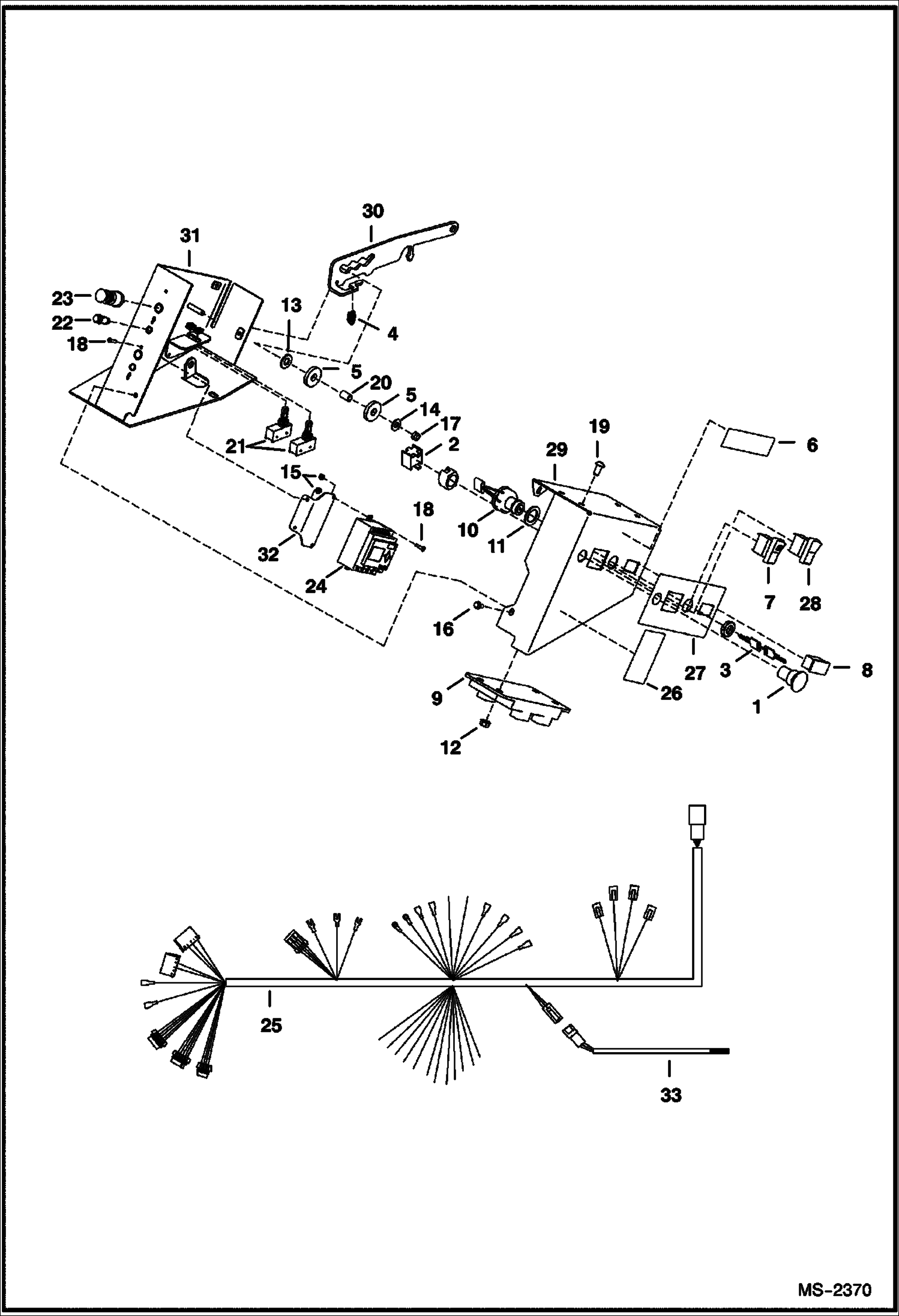

Запчасти Bobcat CHIPPER 8B CHIPPER Control Box Assembly Loader

1

6673180

SWITCH, E STOP

2

6673181

CONTACT

3

KEY NLA - ignition - includes two keys W/ring - Order 6693241 - Was 6709527 - A

3

6693241

KEY 10 single key W/O ring

4

6674458

SPRING

5

6674457

WASHER

6

6675411

DECAL, WARNING

7

6674995

SWITCH

8

6675242

PLUG

9

6678679

CONTROLLER

10

6675098

SWITCH

11

6573567

WASHER

12

6674506

NUT

13

25E21

WASHER 5

14

25E15

WASHER

15

50D8

NUT

16

6674459

BOLT

17

59D5

NUT 5

18

23G812

SCREW

19

25G612

SCREW

20

6675412

SPACER

21

6678556

SWITCH

22

6691652

LAMP

23

6696961

SWITCH Was 6691653 - D

24

6691654

RELAY - MODEL 8B CHIPPER

25

6691655

HARNESS

26

7131275

DECAL, INSTRUCTIONS feed reset

27

7136387

DECAL, CONTROL Bobcat remote attachment

28

6691651

SWITCH

29

6674453

COVER

30

6675584

LEVER

31

6678555

HOUSING

32

6691656

BRACKET

33

6691694

SENSOR
