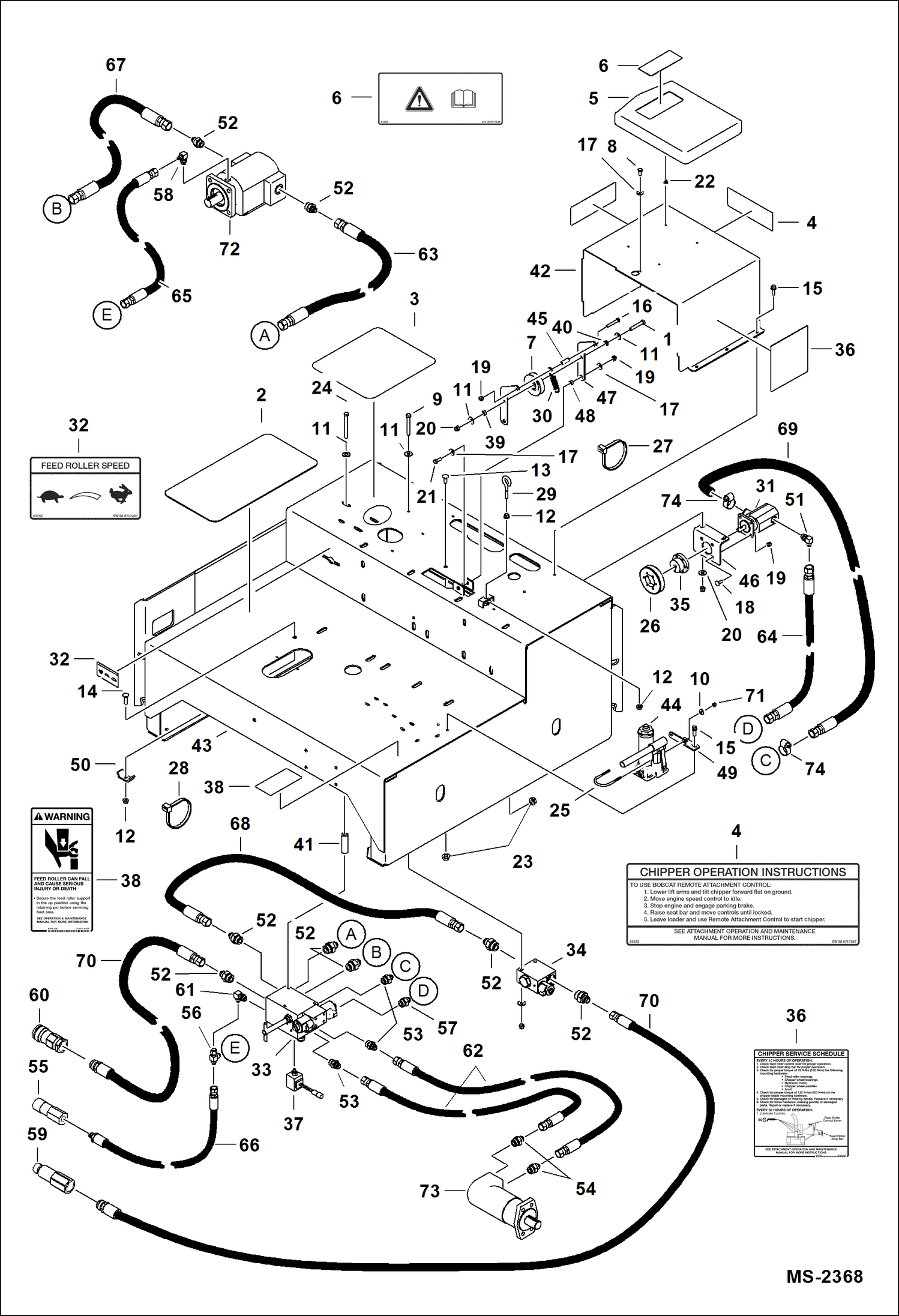

Запчасти Bobcat CHIPPER 8B CHIPPER Hydraulics Loader

1

17C636

BOLT

2

6674501

SAFETY TREAD

3

6674502

SAFETY TREAD

4

6717647

DECAL, INSTRUCTIONS chipper operation

5

6675615

BOX

6

6717648

DECAL, BOX MANUAL

7

6691685

PULLEY

8

17C512

BOLT 5

9

17C648

BOLT 5

10

25E14

WSHR

11

25E17

WASHER 5

12

6674506

NUT

13

10C616

BOLT 10

14

10C624

BOLT

15

84G3716

SCREW 5

16

17C532

BOLT 5

17

25E15

WASHER

18

37C516

BOLT

19

59D5

NUT 5

20

59D6

NUT

21

17C514

BOLT

22

6674512

RIVET

23

6675428

NUT

24

17C660

BOLT

25

6691687

BOLT

26

6691689

PULLEY

27

6675431

STRAP

28

6675432

STRAP

29

6691690

BOLT

30

6691692

SPRING

31

PUMP See Illustration 8B CHIPPER/ MS2416

32

6717407

DECAL, SPEED FEED ROLLER

33

6691637

VALVE ASSY See Illustration 8B CHIPPER/ MS2373

34

6691638

VALVE ASSY See Illustration 8B CHIPPER/ MS2372

35

6691695

BUSHING

36

7137225

DECAL, SERVICE schedule

37

6691697

SWITCH

38

7131274

DECAL, WARNING

39

6691698

TUBE

40

6691699

SPACER

41

6674489

SPACER

42

6674486

COVER

43

6674487

HOUSING

44

6691702

JACK

45

6691703

SPACER

46

6691705

BRACKET

47

6691706

PLATE

48

6691707

SPACER

49

6691710

PLATE

50

6674531

BRACKET

51

17KB0810

FITTING, HYD ELBOW

52

15KB1216

FITTING, HYD CONNECTOR

53

15KB0808

FITTING, HYD CONNECTOR

54

15KB0810

FITTING, HYD CONNECTOR

55

6667805

COUPLER, FF FEMALE straight

56

13K6

TEE

57

15KB1208

ADAPTER threaded

57

7000349

ADAPTER hose barb

58

17KB0604

ELBOW UNION

59

6688454

COUPLER, FF MALE straight

60

6687636

COUPLER, FF FEMALE straight

61

17KB0808

FITTING, HYD ELBOW

62

6674491

HOSE

63

6674494

HOSE

64

6691657

HOSE

65

6691658

HOSE

66

6691659

HOSE

67

6691660

HOSE

68

6691661

HOSE

69

6691662

HOSE

69

7000348

HOSE

70

6691663

HOSE

71

59D4

NUT 5

72

6692338

MOTOR See Illustration 8B CHIPPER/ B26468

73

6675267

MOTOR See Illustration 8B CHIPPER/ B18570B

74

7000350

CLAMP hose

74

7023116

CLAMP hose
