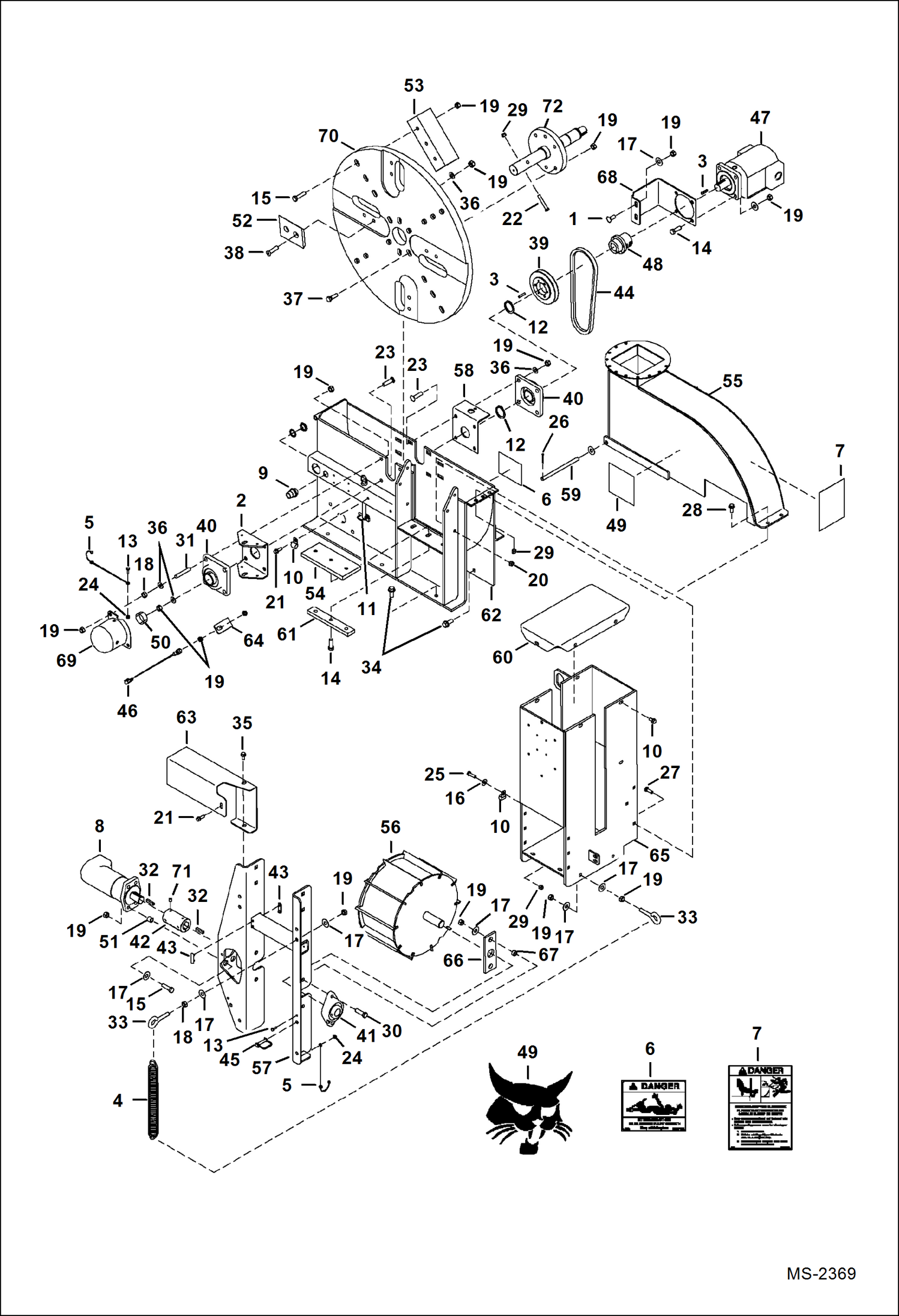

Запчасти Bobcat CHIPPER 8B CHIPPER Roller & Cutter Assembly Loader

1

10C820

BOLT

2

6691711

BRACKET

3

7J3104

KEY, SQ 1/4 X 1-1/4

4

6674490

SPRING Was 6691681 - A

5

6691682

CORD

6

6715361

DECAL, DANGER See Illustration CHIPPER/ NA6251 - rotating shaft

6

7214475

DECAL, DANGER See Illustration CHIPPER/ NA6251 - no-text

7

6717411

DECAL, DANGER

8

6675267

MOTOR See Illustration 8B CHIPPER/ B18570B

9

6675420

CAP PLUG

10

6674529

CLAMP

11

6691683

PIN

12

6691684

SNAP RING

13

17C412

BOLT 5

14

17C824

BOLT 5

15

17C832

BOLT

16

25E17

WASHER 5

17

25E21

WASHER 5

18

61D8

NUT 5

19

85D8

NUT, 5

20

6674506

NUT

21

84G3716

SCREW 5

22

17C640

BOLT 5

23

10C832

BOLT

24

59D4

NUT 5

25

17C620

BOLT

26

1F416

PIN

27

10C620

BOLT

28

6674510

BOLT

29

59D6

NUT

30

17C828

BOLT

31

6674511

STUD

32

7J4200

KEY

33

6674513

EYE BOLT

34

6675426

BOLT

35

6675429

BOLT

36

27E8

WASHER 10

37

17C840

BOLT

38

6674514

BOLT

39

6691688

PULLEY

40

6674516

BEARING

41

6674525

BEARING

42

6674526

COUPLER

43

6675433

WEAR PAD

44

6691691

BELT

45

6691693

PIN

46

6691694

SENSOR

47

6692338

MOTOR See Illustration 8B CHIPPER/ B26468

48

6691696

COUPLER

49

6700191

DECAL, LOGO BOBCAT HEAD bobcat logo - black

50

6692408

DECAL rotating shaft

51

6674461

SPACER

52

6674463

BLADE

53

6674464

MOUNT

54

6674465

PLATE

55

6674467

CAMSHAFT

56

6674470

ROLLER

57

6674471

BRACKET

58

6674472

BRACKET

59

6674473

SHAFT

60

6674474

COVER

61

6691700

SPACER

62

6674484

HOUSING

63

6675456

COVER

64

6691701

BRACKET

65

6675526

SUPPORT

66

6675457

BEARING

67

6675458

SPACER

68

6691704

BRACKET

69

6691708

CAP

70

6691709

DISK

71

6691686

SET SCREW

72

6693357

SHAFT
