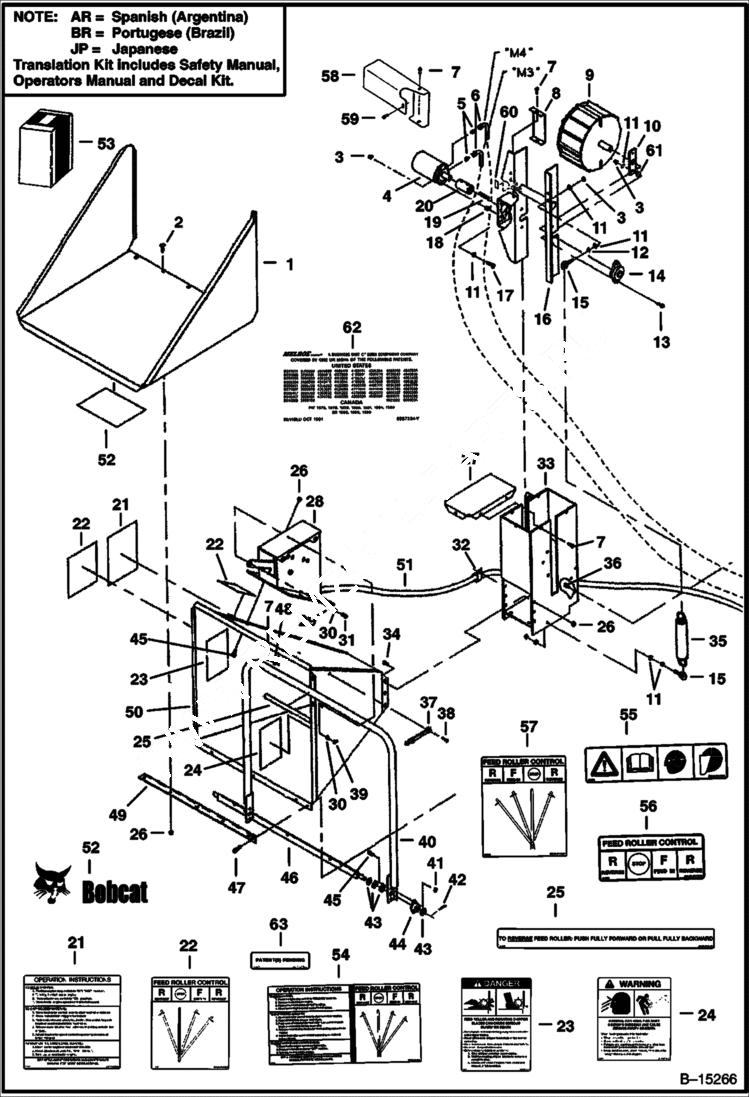

Запчасти Bobcat CHIPPER 8A CHIPPER Chute & Roller Assembly Loader

1

6674476

TRAY

2

6674532

BOLT

3

85D8

NUT, 5

4

MOTOR See Illustration 8A CHIPPER/ B18570A See Illustration 8A CHIPPER/ B15270 FEED ROLLER

5

6674504

ADAPTER

6

6674491

HOSE

7

6674510

BOLT

8

6674475

SHIELD

9

6674470

ROLLER

10

6674479

BEARING

10

6675457

BEARING

11

25E21

WASHER 5

12

61D8

NUT 5

13

17C828

BOLT

14

6674525

BEARING

15

6674513

EYE BOLT

16

6674471

BRACKET

17

17C832

BOLT

18

6674461

SPACER

19

7J4200

KEY

20

6674526

COUPLER

21

DECAL NLA - Operation - Order Ref. 54 - Was 6717408 - A

22

DECAL NLA - Feed Position - Order Ref. 54 - Was 6717406 - A

23

6717410

DECAL, DANGER

24

6717413

DECAL, WARNING

25

6717670

DECAL, INSTRUCTIONS roller

26

6674506

NUT

27

6674474

COVER

28

6674460

CONSOLE ASSY See Illustration 8A CHIPPER/ B18571 See Illustration 8A CHIPPER/ B15269

29

6674530

SPACER

30

25E15

WASHER

31

17C516

BOLT

32

6674529

CLAMP

33

6674469

SUPPORT

33

6675526

SUPPORT

34

10C616

BOLT 10 carriage

35

6674490

SPRING

36

10C620

BOLT carriage

37

6674505

STRAP

38

6674507

BOLT

39

59D5

NUT 5

40

6674488

ARM

41

59D6

NUT

42

1F416

PIN

43

25E25

WASHER 10

44

6674528

FLANGE

45

17C612

BOLT 5

46

6674478

PIVOT

47

17C620

BOLT

48

25E14

WSHR

49

6674477

HINGE

50

6674480

CHUTE

51

HARNESS See Illustration 8A CHIPPER/ B18571 See Illustration 8A CHIPPER/ B15269

52

6729098

DECAL 424 mm (16.7'') x 195 mm (7.7'') - Was 6703645 - B,D

53

6717671AR

KIT translation - SEE NOTE

53

6717671BR

KIT translation - SEE NOTE

53

6717672AR

KIT decal - SEE NOTE

53

6717672BR

KIT decal - SEE NOTE

53

6717672JP

KIT decal - SEE NOTE

54

6717964

DECAL, INSTRUCTIONS

55

6717965

DECAL, WARNING

56

6717966

DECAL

57

6717967

DECAL, CONTROL

58

6675456

COVER

59

84G3716

SCREW 5

60

6675433

WEAR PAD

61

6675458

SPACER

62

DECAL NLA - patent - Was 6557224 - C

63

DECAL PATENT PEND NLA - Was 6810666 - C
