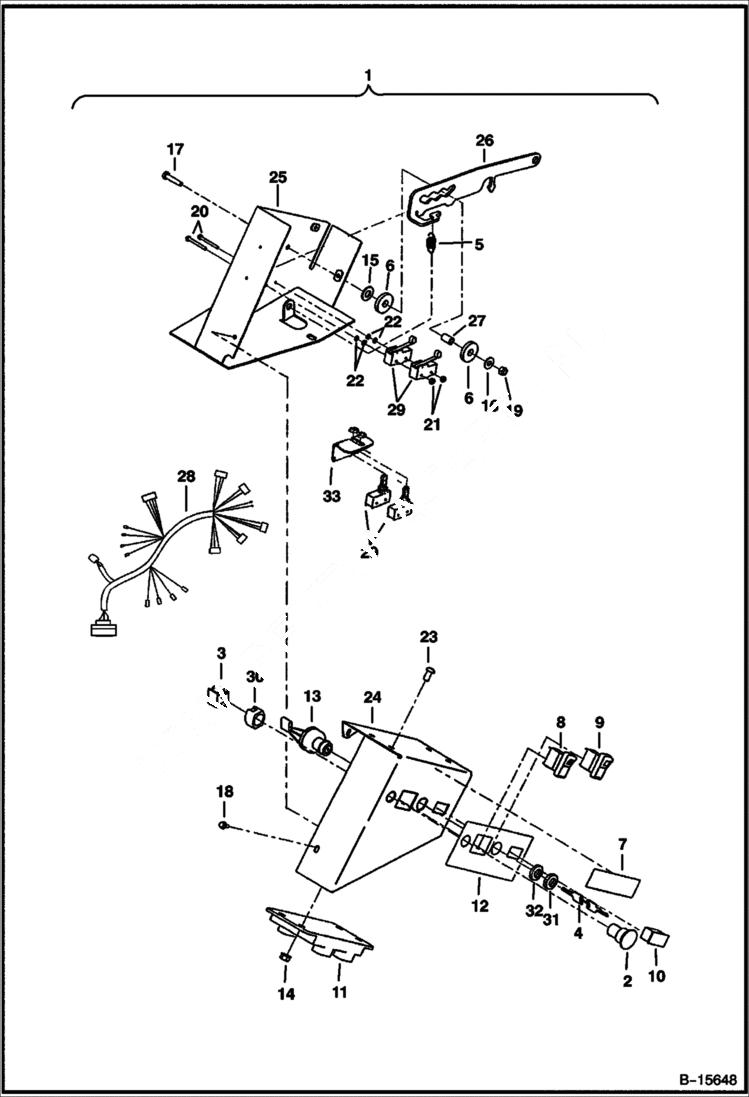

Запчасти Bobcat CHIPPER 5A CHIPPER Remote Control Box Assembly Loader

1

6674460

CONSOLE ASSY Ref. 2 - 30

2

6673180

SWITCH, E STOP W/Ref. 30

3

6673181

CONTACT

4

KEY NLA - ignition - includes two keys W/ring - Order 6693241 - Was 6709527 - A

4

6693241

KEY 10 single key W/O ring

5

6674458

SPRING

6

6674457

WASHER

7

6675411

DECAL, WARNING

8

6674995

SWITCH

9

6674996

SWITCH aux pressure release

10

6675242

PLUG illuminated

11

6675000

CONTROLLER

12

6719138

DECAL, CONTROL Bobcat remote attachment

13

6675098

SWITCH ignition

14

6674506

NUT

15

25E21

WASHER 5

16

25E15

WASHER

17

17C524

BOLT

18

6674459

BOLT

19

59D5

NUT 5

20

6675582

BOLT Was 85G000616B - B

21

50D8

NUT Was 12D000006B - B

22

25E8

WSHR Was 25E000006B - B

23

25G612

SCREW

24

6674453

COVER

25

HOUSING NLA - Order 6678555 & (2) of 6678556 switch - Was 6675583 - A

25

6678555

HOUSING

26

6675584

LEVER Was 6674455 - B

27

6675412

SPACER

28

6719140

HARNESS dual - 7 & 19 pin

29

SWITCH NLA - feed control - Order (2) 6678556 & Ref. 33 - Was 6674456 - A

29

6678556

SWITCH feed control

30

CONTACT NSS - Order Ref. 2

31

6598721

NUT

32

6573567

WASHER

33

6678557

MOUNT switch
