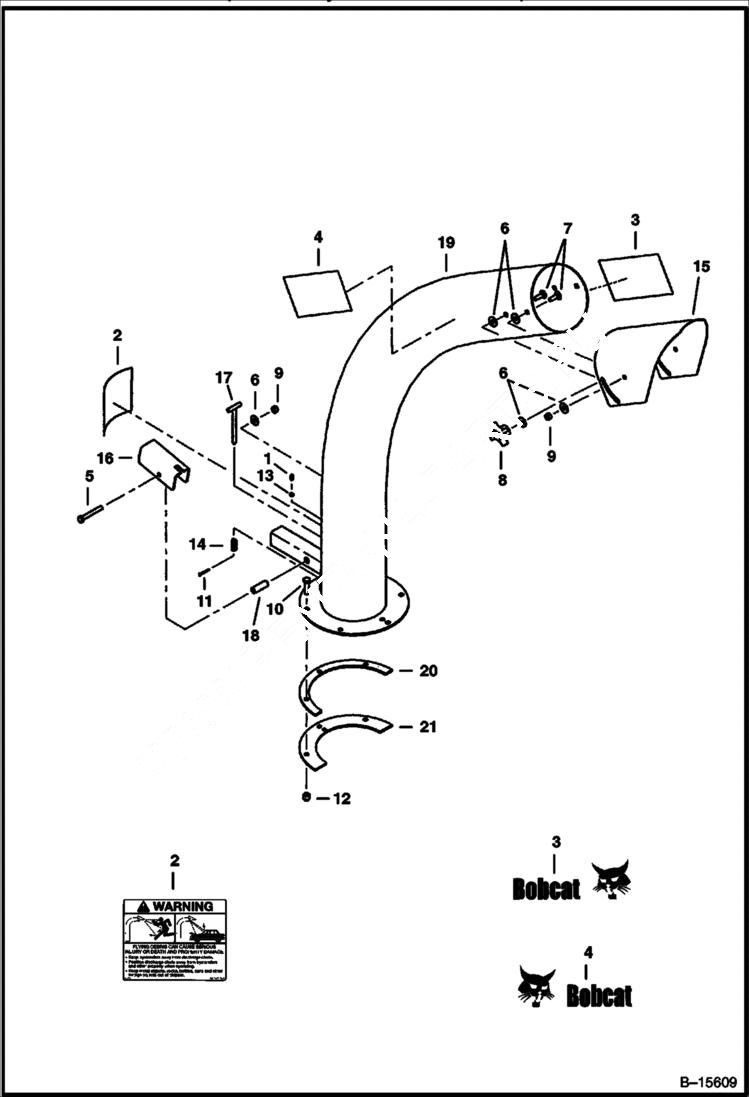

Запчасти Bobcat CHIPPER 5A CHIPPER Chute Assembly Loader

1

10H35

FITTING, GREASE 10

2

6717412

DECAL, WARNING debris

3

6727323

DECAL, LOGO BOBCAT AND HEAD LH - 210 mm (8.25'') x 80 mm (3.14'') - Was 6567987 - B

4

6727324

DECAL, LOGO BOBCAT AND HEAD RH - 210 mm (8.25'') x 80 mm (3.14'') - Was 6567988 - B

4

7109473

DECAL, LOGO BOBCAT AND HEAD Use on both sides - 210 mm (8.25'') x 68 mm (2,68'')

5

17C540

BOLT

6

25E15

WASHER

7

10C516

BOLT carriage

8

6675413

KNOB

9

59D5

NUT 5

10

17C620

BOLT

11

1F416

PIN

12

59D6

NUT

13

6674540

WASHER

14

6674541

SPRING

15

6675414

DEFLECTOR

16

6674535

LEVER

17

6674534

PIN

18

6674536

TUBE

19

6675415

CHUTE

20

6675416

SPACER

21

6675417

CLAMP
