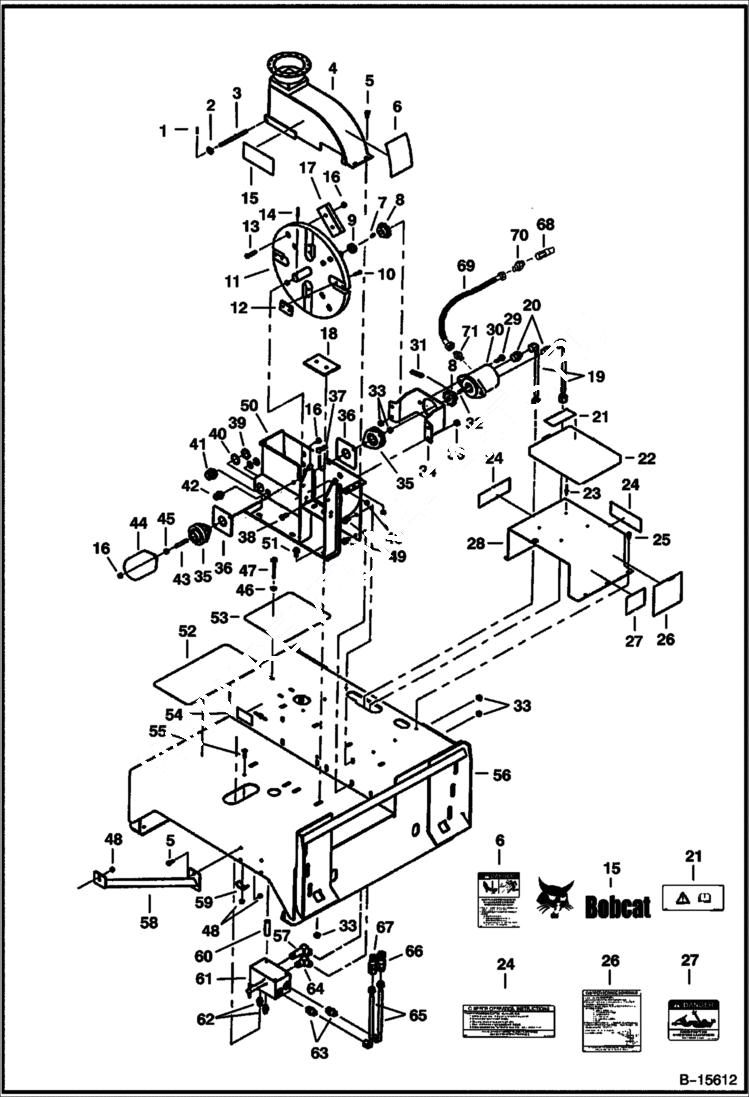

Запчасти Bobcat CHIPPER 5A CHIPPER Main Frame & Cutter Assembly Loader

1

1F416

PIN

2

25E21

WASHER 5

3

6675448

SHAFT

4

6675459

FRAME Was 6675441 - A

5

6674510

BOLT

6

6717411

DECAL, DANGER

7

7J2100

KEY

8

6675421

SPROCKET

9

6675439

SPACER

10

17C520

BOLT 5

11

6675452

ROTOR

12

6675434

BLADE

13

17C832

BOLT

14

6675423

PIN

15

6729098

DECAL 424 mm (16.7'') x 195 mm (7.7'') - Was 6703645 - B,D

15

6735900

DECAL, LOGO BOBCAT AND HEAD logo - 622 mm (24.5'') x 178 mm (7'')

16

85D8

NUT, 5

17

6675435

PADDLE

18

6675436

PLATE anvil

19

6674494

HOSE

20

6674500

ADAPTER

21

6717648

DECAL, BOX MANUAL

22

6675615

BOX Was 6708827 - A

23

6674512

RIVET

24

6717647

DECAL, INSTRUCTIONS chipper operation

25

84G3716

SCREW 5

26

6717409

DECAL, SERVICE

27

6715361

DECAL, DANGER See Illustration CHIPPER/ NA6251 - rotating shaft

27

7214475

DECAL, DANGER See Illustration CHIPPER/ NA6251 - no-text

28

6675453

COVER

29

6675427

BOLT

30

6675473

MOTOR ASSY See Illustration 5A CHIPPER/ C3524

31

6675422

CHAIN

32

6675455

KEY

33

6675428

NUT

34

6675451

MOUNT

35

6675418

BEARING

36

6675450

BRACKET

37

10C1032

BOLT carriage

38

6675424

BOLT

39

6664036

NUT

40

6664037

WASHER

41

6673680

RECEPTACLE, TWIST-LOC for 14-pin

42

6675420

CAP PLUG for 7-pin

43

6674511

STUD

44

6674515

CAP

45

61D8

NUT 5

46

25E17

WASHER 5

47

17C664

BOLT

48

6674506

NUT

49

6675425

BOLT

50

6675449

HOUSING

51

6675426

BOLT

52

6674501

SAFETY TREAD

53

6674502

SAFETY TREAD

54

6717407

DECAL, SPEED FEED ROLLER

55

10C624

BOLT carriage

56

6674487

HOUSING

57

6675419

ELBOW

58

6675454

BRACKET

59

6674531

BRACKET

60

6674489

SPACER

61

6675110

VALVE BLOCK See Illustration 5A CHIPPER/ B27889

62

6674503

ADAPTER

63

6674527

ADAPTER

64

6675430

ELBOW

65

6674492

HOSE

66

6672960

COUPLER, FF FEMALE straight

67

6674688

COUPLER, FF MALE straight - Was 6667808 - A

68

6667805

COUPLER, FF FEMALE straight

69

6686597

HOSE case drain - Was 6685849 - A

70

15KB0608

FITTING, HYD CONNECTOR

71

15KB0604

FTG HYD S CONNECTOR
