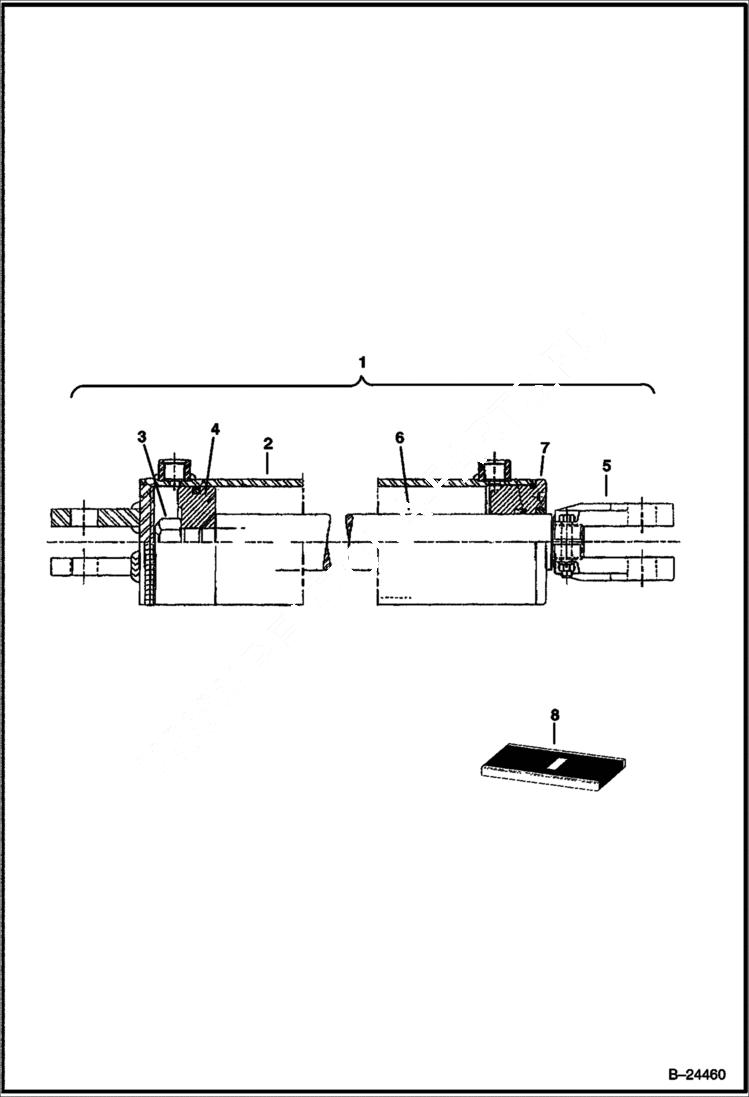

Запчасти Bobcat Бульдозеры DOZER (Hydraulic Cylinder) (96 224400101 - 01243) Loader

1

CYLINDER ASSY See Illustration DOZER/ B23909 - NLA - Ref. 2-7 - Order 7001939 cylinder kit - Was 6686675 - A

2

CASE See Illustration DOZER/ B23909 - NLA - Order 7001938 cylinder - Was 6686905 - A

3

6686906

NUT

4

6686907

PISTON

5

6686908

YOKE

6

6686909

ROD

7

6686910

CAP

8

6686911

SEAL KIT
