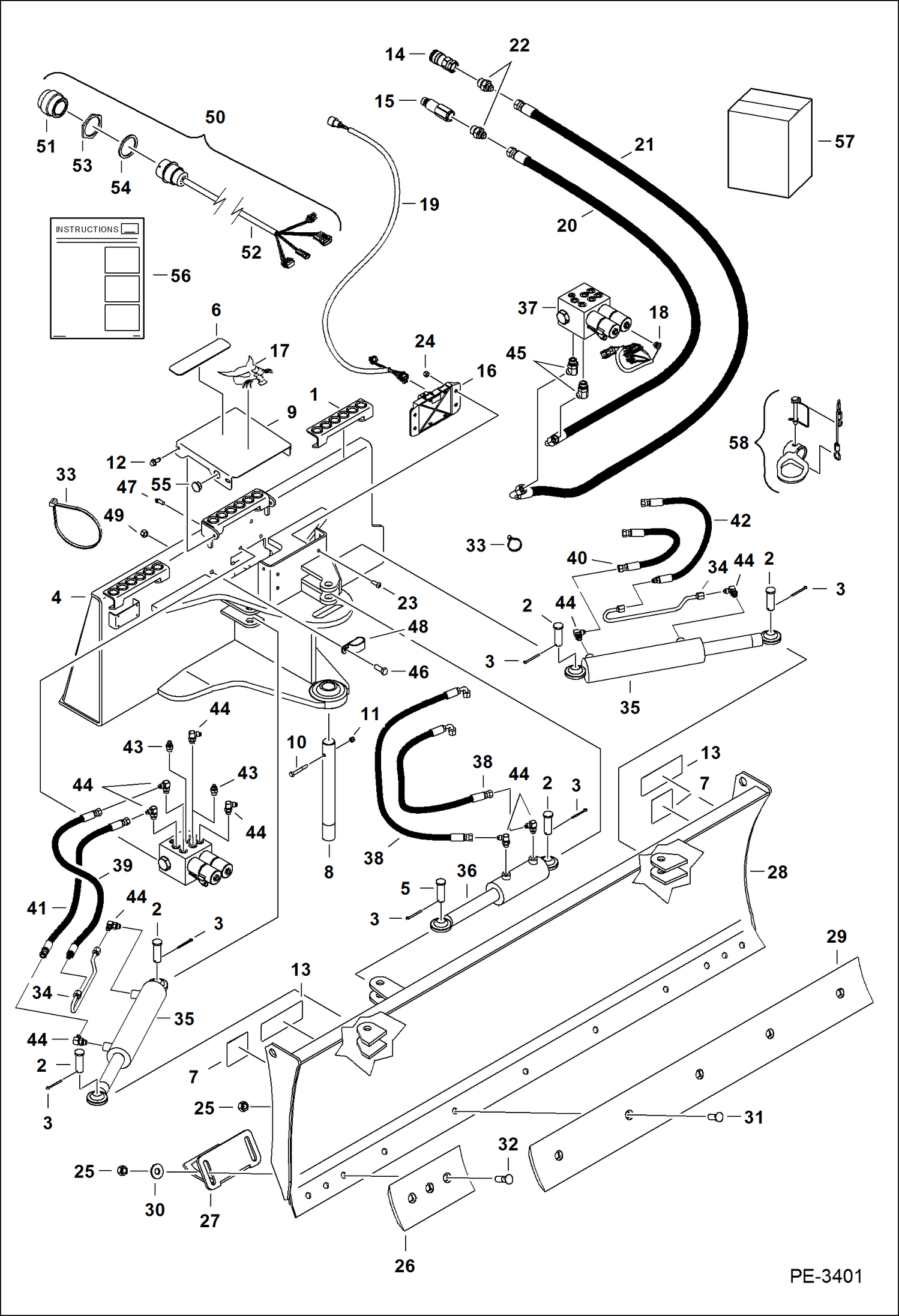

Запчасти Bobcat Бульдозеры DOZER (68 224300150 & Above) (80 232112929 & Above) (90 231912313 & Above) Loader

1

6905263

STEP

2

6648596

PIN

3

1F632

PIN

4

6905407

MAIN FRAME

5

6674413

PIN

6

6618318

SAF TREAD

7

6583862

DECAL, WARNING See Illustration DOZER/ NA6239A

7

7130132

DECAL, WARNING See Illustration DOZER/ NA6239A - no-text

8

6905395

PIVOT PIN

9

7121044

COVER

10

1C540

BOLT

11

59D5

NUT 5

12

84G3712

BOLT 5 Was 84G3716 - A

13

7109473

DECAL, LOGO BOBCAT AND HEAD

14

6672960

COUPLER, FF FEMALE straight

15

6674688

COUPLER, FF MALE straight

16

6678677

CONTROLLER, ACD BASE

17

6700191

DECAL, LOGO BOBCAT HEAD

18

6725234

HARNESS

19

6725368

HARNESS

20

7124910

HOSE

21

7124911

HOSE

22

15KB1012

FITTING, HYD CONNECTOR

23

25G616

SCREW

24

85D6

NUT, 5

25

85D10

NUT, 5 (10) for 68'' - Was 6674416 - A

25

85D10

NUT, 5 (11) for 80'' - Was 6674416 - A

25

85D10

NUT, 5 (12) for 90'' - Was 6674416 - A

26

6674418

EDGE, CUTTING BOLT ON RH 12''

27

6905540

GUIDE SHOE

28

7104584

MOLDBOARD 68''

28

6905871

BLADE80''DOZER 80''

28

6905184

BLADE 90''

29

7104589

EDGE, CUTTING BOLT ON BEVELED REV 44'' 68''

29

6674419

EDGE, CUTTING BOLT ON LH 56'' 80''

29

6905187

EDGE, CUTTING BOLT ON BEVELED 66'' 90''

30

25E26

WASHER

31

39C1028

BOLT, PLOW qty. 6 for 68''

31

39C1028

BOLT, PLOW qty. 7 for 80''

31

39C1028

BOLT, PLOW qty. 8 for 90''

32

39C1036

BOLT

33

6624289

STRAP, TIE

34

6674422

TUBELINE

35

6674426

CYLINDER See Illustration DOZER/ TS1717 angle

36

6674427

CYLINDER See Illustration DOZER/ TS1716 tilt

37

6686391

VALVE ASSY

38

7124908

HOSE

39

7124909

HOSE

40

7152682

HOSE

41

7152683

HOSE

42

7152684

HOSE

43

15KB0606

FITTING, HYD CONNECTOR

44

17KB0606

FITTING

45

18KB1012

FITTING, HYD ELBOW Was 18KB1010 - B

46

1C820

BOLT

47

25G616

SCREW

48

30H92

CLAMP INSL Was 31H48 - B

49

95D8

NUT

50

6725384

KIT T-harness 14 pin - for 7 pin dozer Use W/ 14 pin loader - Ref. 52-56

51

6673680

RECEPTACLE, TWIST-LOC

52

6725353

HARNESS T-harness 14 pin

53

6664036

NUT

54

6664037

WASHER

55

6675128

CAP

56

6901005

INSTRUCTIONS

57

6905558AR

KIT

57

6905558BR

KIT

57

6905559AR

KIT

57

6905559BR

KIT

57

6905559JP

KIT
