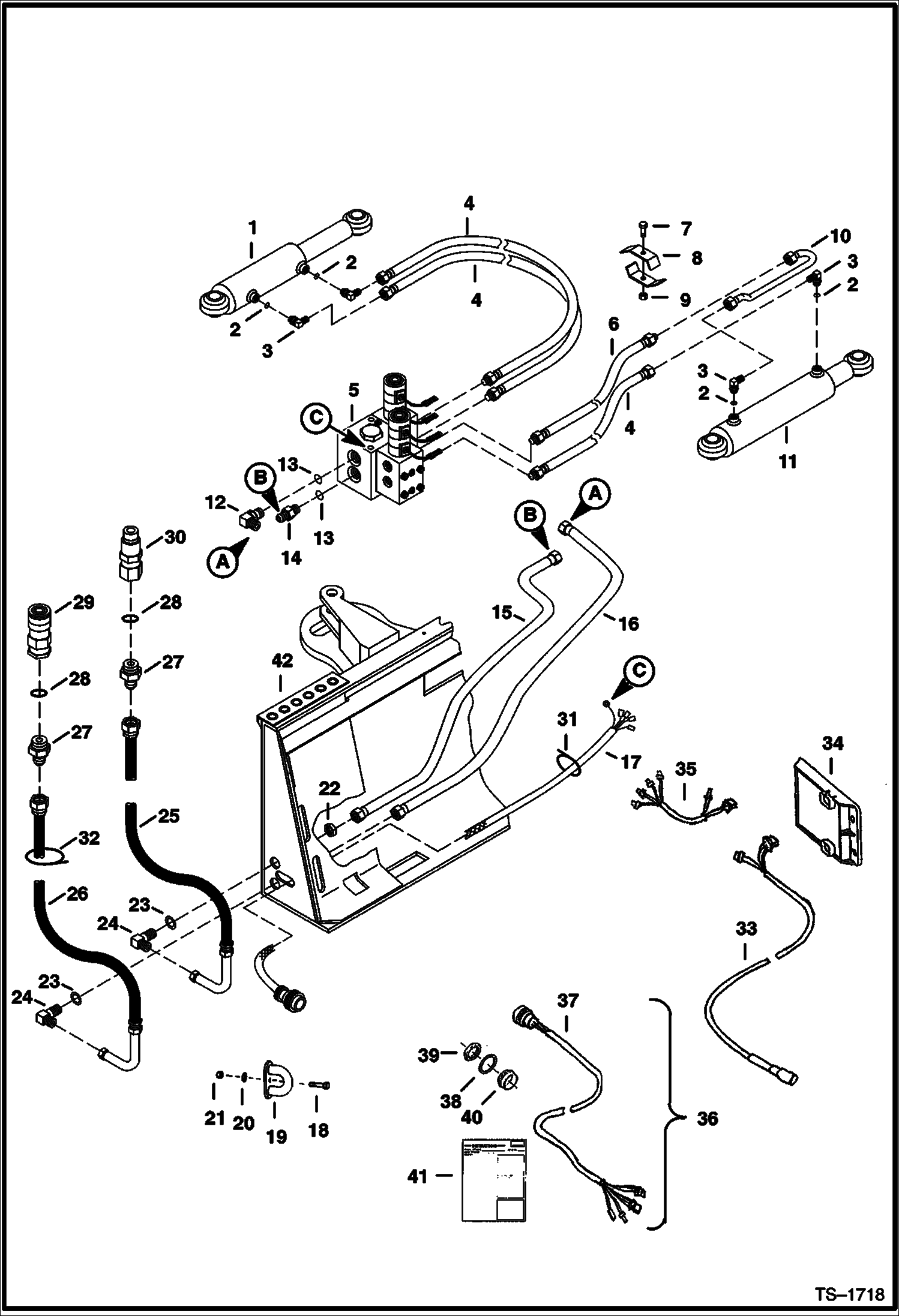

Запчасти Bobcat Бульдозеры DOZER (Hydraulics) (80 232111101 - 12928) (90 231911101 - 12312) Loader

1

6674427

CYLINDER See Illustration DOZER/ TS1716

2

99K6

O RING

3

6657211

ELBOW 80'' (2032mm)

3

17KB0606

FITTING 90'' (2286 mm) - Was 17KV00005B - A

4

6674420

HOSE 80'' (2032mm)

4

6905765

HOSE 90'' (2286mm)

5

6674417

VALVE See Illustration DOZER/ TS1715

6

6674421

HOSE 80'' (2032mm)

6

6905766

HOSE 90'' (2286mm)

7

17C524

BOLT

8

6660200

CLAMP

9

59D5

NUT 5

10

6674422

TUBELINE

11

6674426

CYLINDER See Illustration DOZER/ TS1717

12

17KB1212

FITTING, HYD ELBOW Was 17KV00008B - A

13

99K12

O RING

14

6674425

CHECK VALVE

15

6674931

TUBELINE

16

6674932

TUBELINE

17

6665869

WIRING HARNESS mount ground (C) with valve bolt - 14-pin harness

18

37C648

BOLT Use on 540's, 640's & 740's

18

37C656

BOLT Use on 750's

18

37C664

BOLT Use on 773 & 850's

19

6706160

GUIDE

20

872229

WASHER

21

85D6

NUT, 5

22

86F8

NUT 5

23

6905346

WASHER

24

88F8

FITTING Was 88FN00008B - A

25

6674930

HOSE

26

6674929

HOSE

27

15KB1012

FITTING, HYD CONNECTOR Was 6673322 - A

28

79K12

O RING 10

29

6672960

COUPLER, FF FEMALE straight

30

6674688

COUPLER, FF MALE straight - Was 6667808 - A

31

6624289

STRAP, TIE Was 6674415 - A

32

6624289

STRAP, TIE Was 6674414 Was 6674414 - A

33

6725368

HARNESS 7-pin

34

6674944

LEVER, PTO MID ACD

35

6725234

HARNESS ACD to valve

36

6725384

KIT 14-pin - for 7-pin dozer used with 14-pin loader-W/Ref. 37-41

37

6725353

HARNESS 14-pin conversion

38

6664037

WASHER

39

6664036

NUT

40

6673680

RECEPTACLE, TWIST-LOC

41

6901005

INSTRUCTIONS

42

6905263

STEP
