Запчасти Bobcat Бульдозеры DOZER (68 224300101 - 00149) Loader

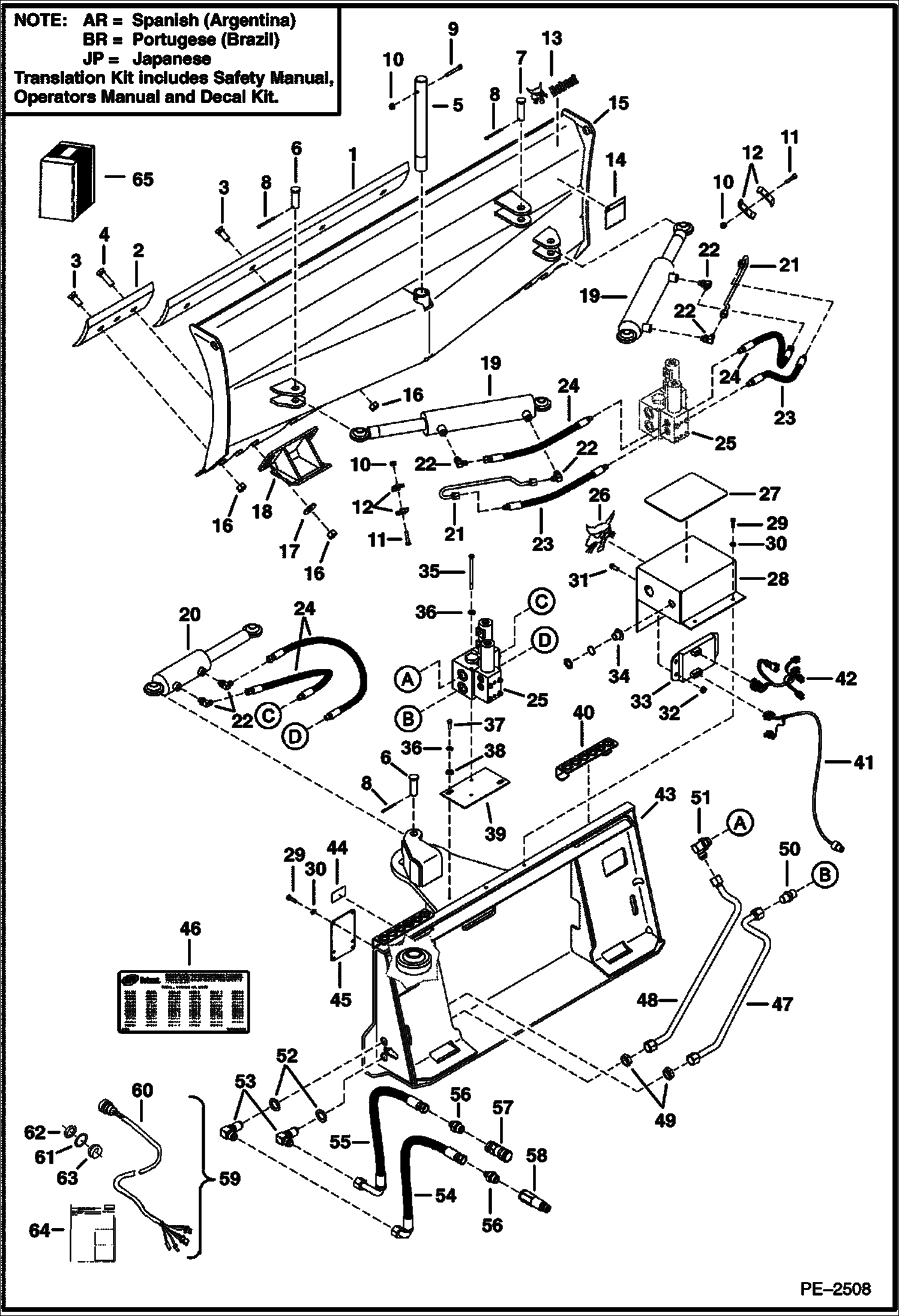

Схема запчастей Bobcat Бульдозеры - DOZER (68 224300101 - 00149) Loader

Артикул

Название

Примечание

Количество

1

7104589

EDGE, CUTTING BOLT ON BEVELED REV 44''

2

6674418

EDGE, CUTTING BOLT ON RH 12''

3

39C1028

BOLT, PLOW

4

39C1036

BOLT

5

6905395

PIVOT PIN

6

6648596

PIN 2.88'' long

7

6674413

PIN 3.12'' long

8

1F632

PIN

9

17C540

BOLT

10

59D5

NUT 5

11

17C524

BOLT

12

6660200

CLAMP

13

6727324

DECAL, LOGO BOBCAT AND HEAD

14

6583862

DECAL, WARNING See Illustration DOZER/ NA6239A

14

7130132

DECAL, WARNING See Illustration DOZER/ NA6239A - no-text

15

7104584

MOLDBOARD

16

85D10

NUT, 5 Was 6674416 - A

17

25E26

WASHER

18

6905540

GUIDE SHOE

19

6674426

CYLINDER See Illustration DOZER/ TS1717 angle

20

6674427

CYLINDER See Illustration DOZER/ TS1716 tilt

21

6674422

TUBELINE

22

17KB0606

FITTING

23

6905766

HOSE

24

6905765

HOSE

25

6674417

VALVE See Illustration DOZER/ TS1715

26

6700191

DECAL, LOGO BOBCAT HEAD

27

6905768

TREAD

28

6905458

VALVE COVER

29

17C416

BOLT

30

4E4

WASHER

31

25G616

SCREW

32

85D6

NUT, 5 Was 87D000006B - A

33

6678677

CONTROLLER, ACD BASE

34

6675128

CAP

35

17C580

BOLT

36

4E5

WASHER

37

17C516

BOLT

38

25E6

WSHR

39

6674412

VALVE PLATE

40

6905263

STEP

41

6725368

HARNESS 7-pin

42

6725234

HARNESS ACD to valve

43

6905407

MAIN FRAME

44

6657354

DECAL warning

45

6674411

PLATE

46

DECAL NLA - patent - Was 6557224 - C

47

6674931

TUBELINE

48

6674932

TUBELINE

49

86F8

NUT 5

50

6674425

CHECK VALVE

51

17KB1212

FITTING, HYD ELBOW

52

6905346

WASHER

53

88F8

FITTING

54

6674929

HOSE

55

6674930

HOSE

56

15KB1012

FITTING, HYD CONNECTOR

57

6672960

COUPLER, FF FEMALE straight

58

6674688

COUPLER, FF MALE straight

59

6725384

KIT T-Harness 14-pin - for 7-pin dozer used with 14-pin loader - W/Ref. 60-64

60

6725353

HARNESS T-Harness 14-pin

61

6664037

WASHER

62

6664036

NUT

63

6673680

RECEPTACLE, TWIST-LOC

64

6901005

INSTRUCTIONS

65

6905558AR

KIT translation

65

6905558BR

KIT translation

65

6905559AR

KIT decal

65

6905559BR

KIT decal

65

6905559JP

KIT decal

Выбрано товаров: 70
