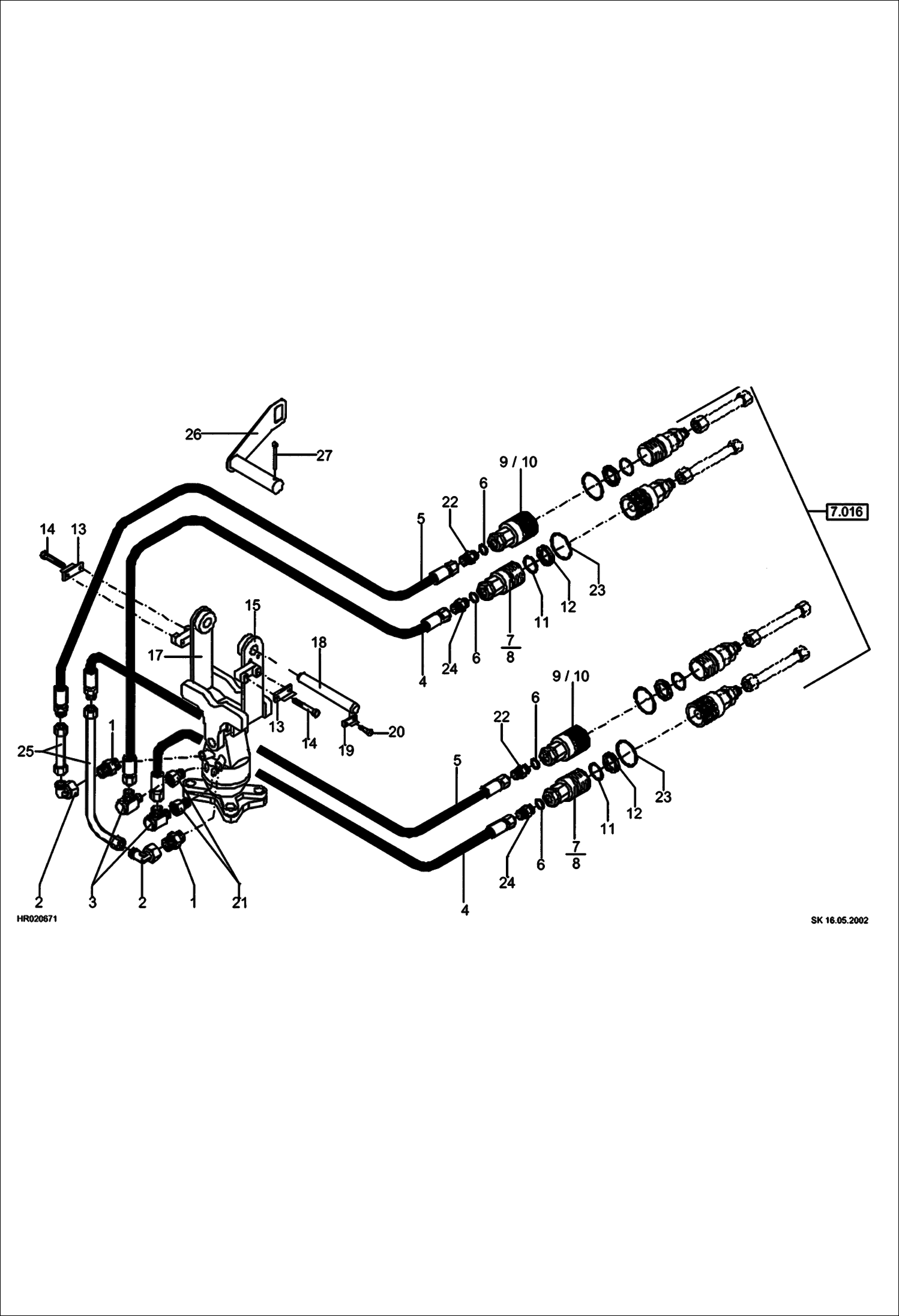

Запчасти Bobcat BUCKETS CLAMSHELL BUCKET (Grab Suspension W/Hydraulic Installation)(442) (Direct Mounted) (Type GM2) Экскаваторы

1

1915060264

FITTING

2

1924060154

ELBOW FITTING

3

1921060558

ELBOW

4

4260144359

HOSE 1400 MM

5

4262153383

HOSE 1520 MM

6

1970956719

O-RING

7

5260301140

COUPLING SOCKET

8

5260301147

COVER NUT

9

5260301145

COUPLING PLUG

10

5260301149

PLUG

11

1970956629

O-RING

12

5260301146

BACK UP RING

13

5440000407

FLAP

14

5440000412

BOLT

17

5440000410

SUSPENSION

18

5440000411

PIN

19

5440000276

AXLE HOLDER

20

1017341529

BOLT

21

5440000408

REDUCER

22

1915060564

FITTING

23

1970956830

O-RING

24

1915060562

FITTING

25

5440000409

TUBELINE

26

6190233505

PIN

27

1395707832

PIN
