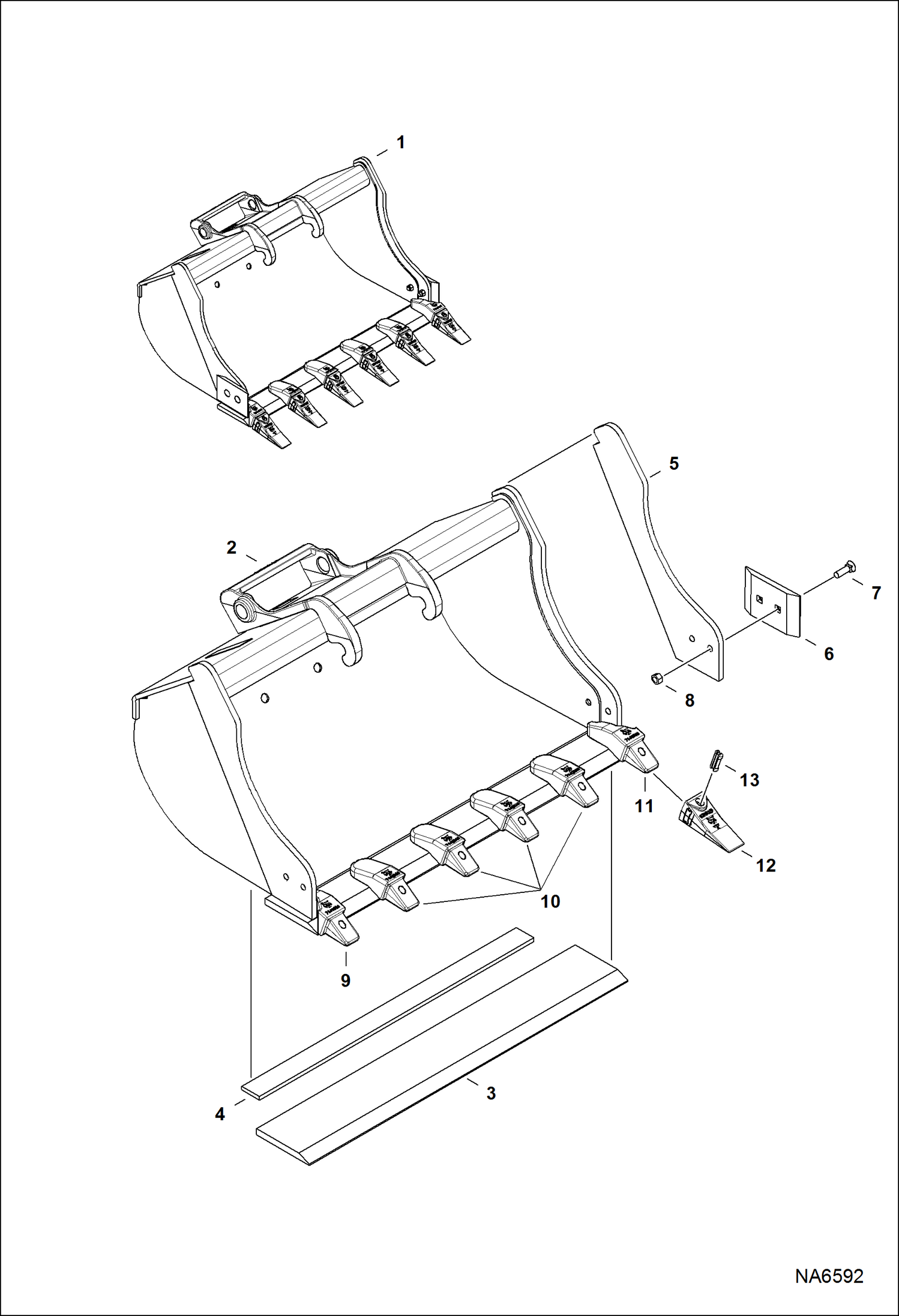

Запчасти Bobcat BUCKETS BUCKET (CL3) (X-Change) (36) Экскаваторы

1

BUCKET SALES #M7029-R01-C01 (7178530STXT) - 36'' standard W/teeth - Ref. 2-13

1

BUCKET SALES #M7029-R01-C02 (7178530STXS) - 36'' standard W/O teeth - Ref. 2-8

2

BUCKET, W/A NLA - Order Ref. 1

3

7137582

EDGE, CUTTING WELD-ON 36''

4

7141000

BAR, WEAR 36''

5

7137506

EDGE, CUTTING WELD-ON SIDE

6

6805464

EDGE, CUTTING BOLT-ON 4'' side

7

39C828

BOLT plow

8

63D8

NUT

9

7141014

SHANK, WELD-ON LH

10

7142535

SHANK, WELD-ON CENTER

11

7141013

SHANK, WELD-ON RH

12

6737325

TOOTH, BUCKET 10 140 mm (5.5'') long

13

6737326

PIN, FLEX BUCKET TOOTH
