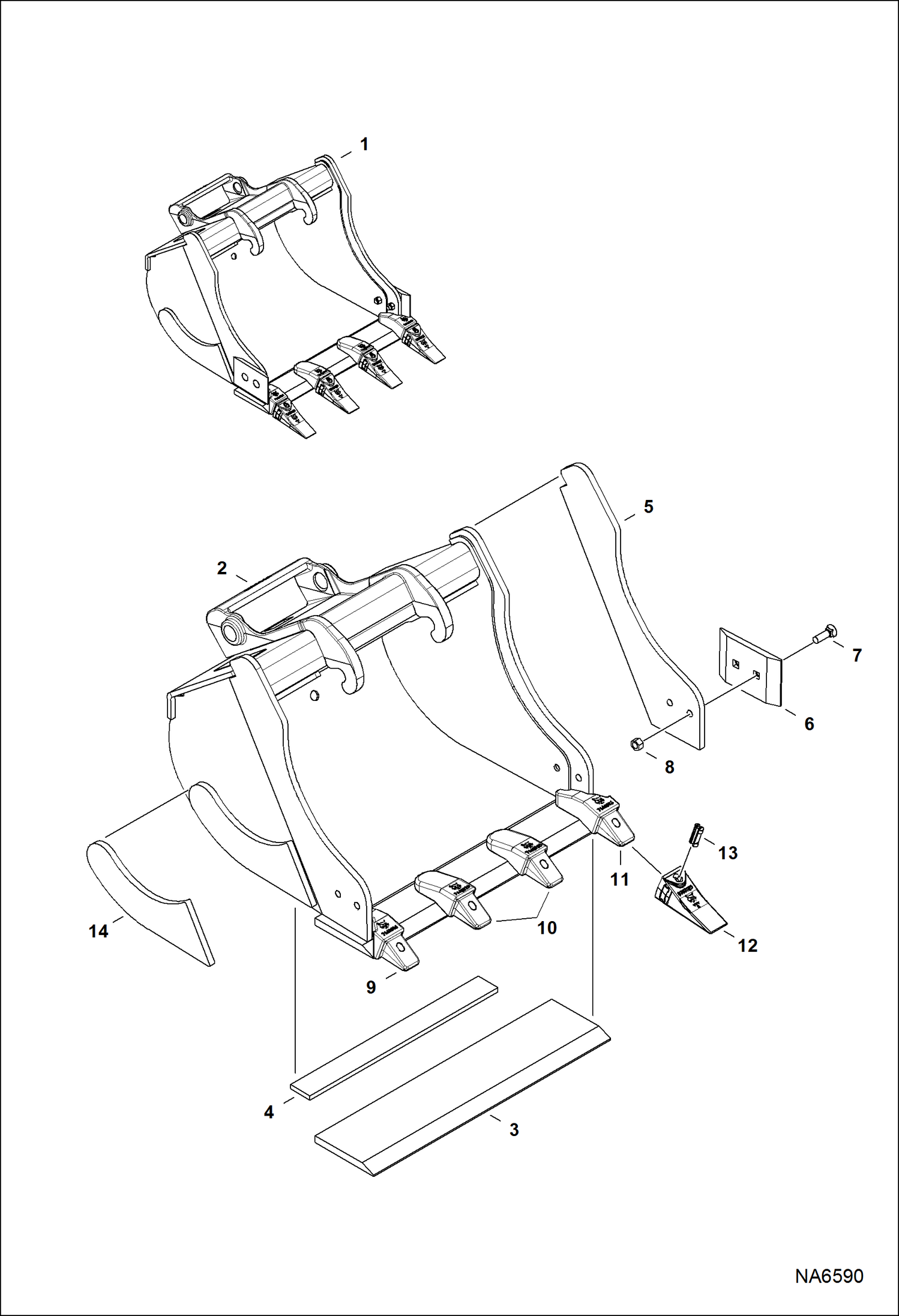

Запчасти Bobcat BUCKETS BUCKET (CL3) (X-Change) (16) (18) (20) (24) Экскаваторы

1

BUCKET SALES #M7031-R01-C01 (7178816STXT) - 16'' standard W/teeth - Ref. 2-13

1

BUCKET SALES #M7031-R01-C02 (7178816SDXT) - 16'' severe duty W/teeth - Ref. 2-14

1

BUCKET SALES #M7023-R01-C01 (7178758STXT) - 18'' standard W/teeth - Ref. 2-13

1

BUCKET SALES #M7023-R01-C02 (7178758SDXT) - 18'' severe duty W/teeth - Ref. 2-14

1

BUCKET SALES #M7023-R01-C02 (7178758STXS) - 18'' standard W/O teeth - Ref. 2-8

1

BUCKET SALES #M7027-R01-C01 (7178726STXT) - 20'' standard W/teeth - Ref. 2-13

1

BUCKET SALES #M7021-R01-C01 (7178617STXT) - 24'' standard W/teeth - Ref. 2-13

1

BUCKET SALES #M7021-R01-C02 (7178617SDXT) - 24'' severe duty W/teeth - Ref. 2-14

1

BUCKET SALES #M7021-R01-C03 (7178617STXS) - 24'' standard W/O teeth - Ref. 2-8

2

BUCKET, W/A NLA - Order Ref. 1

3

7131279

EDGE, CUTTING WELD-ON 16''

3

7131265

EDGE, CUTTING WELD-ON 18''

3

7131280

EDGE, CUTTING WELD-ON 20''

3

7136396

EDGE, CUTTING WELD-ON 24''

4

7137671

BAR, WEAR 16''

4

7140960

BAR, WEAR 18''

4

7135985

BAR, WEAR 20''

4

7135984

BAR, WEAR 24''

5

7137506

EDGE, CUTTING WELD-ON SIDE

6

6805464

EDGE, CUTTING BOLT-ON 4'' side

7

39C828

BOLT plow

8

63D8

NUT

9

7141014

SHANK, WELD-ON LH

10

7142535

SHANK, WELD-ON CENTER

11

7141013

SHANK, WELD-ON RH

12

6737325

TOOTH, BUCKET 10 140 mm (5.5'') long

13

6737326

PIN, FLEX BUCKET TOOTH

14

7137507

PLATE, SIDE severe duty - weld-on
