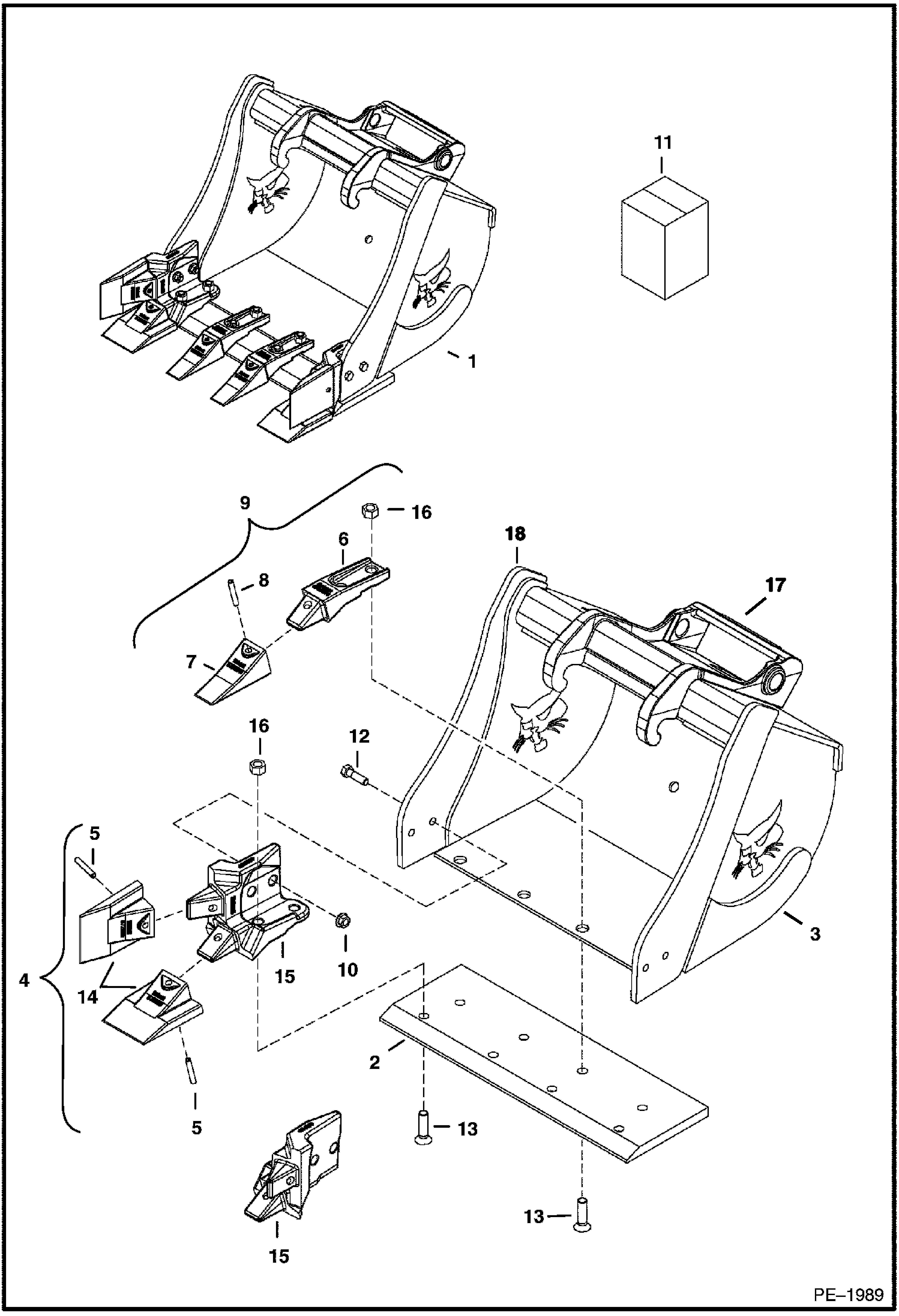

Запчасти Bobcat BUCKETS BUCKET (X-Change)(335,337,341,435) (HD Cast) Экскаваторы

1

BUCKET SALES #6813606 - 24'' - 4 teeth

1

BUCKET SALES #6813607 - 36'' - 6 teeth

2

6813941

EDGE, CUTTING, WELD-ON 24''

2

6814676

EDGE, CUTTING BOLT ON 36.25''

3

6814668

EDGE, CUTTING WELD-ON SIDE

4

7107331

TOOTH, LH side - Ref. 15 & (2) each of Ref. 5 (6737326 pin) & 14 - Was 6813414 - A

4

TOOTH ASSY, LH NLA - side - Order 7107331 LH tooth & (4) each of Ref. 13 & 16 - Was 7107338 - A

4

7107332

TOOTH, RH side - Ref. 15 & (2) each of Ref. 5 (6737326 pin) & 14 - Was 6813415 - A

4

TOOTH ASSY, RH NLA - side - Order 7107332 RH tooth & (4) each of Ref. 13 & 16 - Was 7107337 - A

5

14J3736

PIN See BTI376

5

6737326

PIN, FLEX BUCKET TOOTH See BTI376

6

SHANK NLA - order Ref. 11

7

6737325

TOOTH, BUCKET 10 See BTI376 - 140 mm (5.5'') long - Was 6728801 - A

8

14J3732

PIN, STRAIGHT 5 See BTI376

8

6737326

PIN, FLEX BUCKET TOOTH See BTI376

9

TOOTH NLA - assy - order Ref. 11

10

97D8

NUT

11

6737322

KIT, TOOTH BUCKET 8 8 pack W/bolts & nuts - Was 6732465 - A

11

KIT, TOOTH BUCKET 8 114, 3 mm (4.5'') long - 8 pack W/bolts & nuts

12

17C828

BOLT

13

6729510

BOLT Was 96G001036B - D

14

7102097

TOOTH, WIDE 4 Was 6728811 - A

15

SHANK NSS - Order Ref. 4

16

57D10

NUT Was 95D10 - B

17

6733995

MOUNT

18

6805951

CUTTING EDGE
