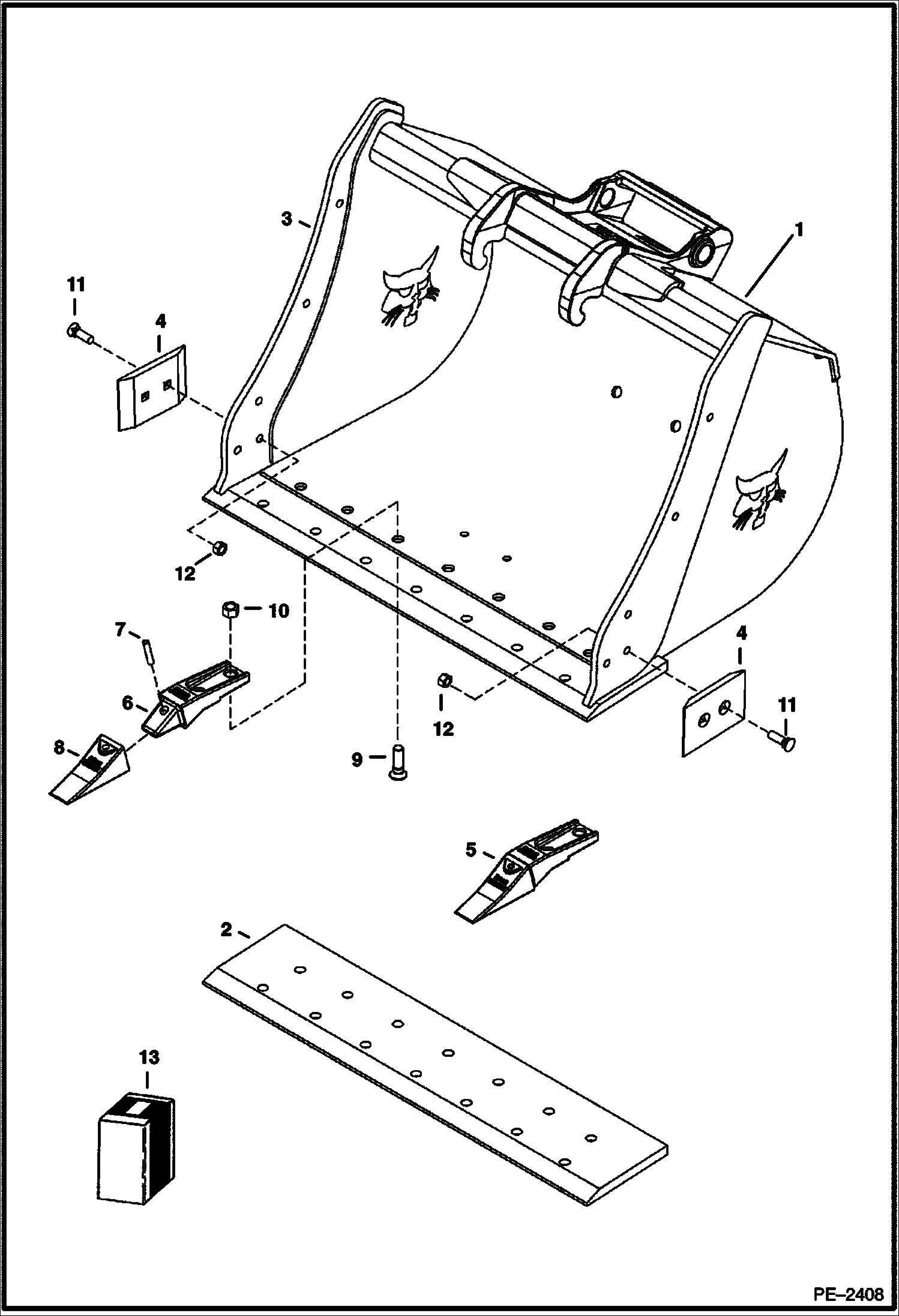

Запчасти Bobcat BUCKETS BUCKET (X-Change Mounted)(335,337,341,435) Экскаваторы

1

BUCKET SALES - 13'' (330mm) uses 3 teeth - Sales #6735350

1

BUCKET SALES - 18'' (457mm) uses 4 teeth - Sales #6735354

1

BUCKET SALES - 24'' (609mm) uses 4 teeth - Sales #6735358

1

BUCKET SALES - 30'' (762mm) uses 5 teeth - Sales #6735362

1

BUCKET SALES - 36'' (914mm) uses 7 teeth - Sales #6735366

1

BUCKET SALES - 39'' (990mm) does not use teeth Sales #6735443

1

BUCKET SALES - 52'' (1320mm) does not use teeth - Sales #6735370

2

6805937

EDGE, CUTTING WELD-ON 13''

2

6807357

EDGE, CUTTING WELD-ON 18''

2

6813941

EDGE, CUTTING, WELD-ON 24''

2

6807389

EDGE, CUTTING WELD-ON 30''

2

6814676

EDGE, CUTTING BOLT ON 36.25''

2

6805815

EDGE, CUTTING WELD ON BEVELED 39.25'' 39'' (990mm)

2

6805816

EDGE, CUTTING WELD ON BEVELED 52.25'' 52'' (1320mm)

3

6805951

CUTTING EDGE side - 13'' (330mm), 18'' (457mm), 24'' (609mm), 30'' (762mm), 36'' (914mm)

3

6805771

EDGE, CUTTING WELD-ON SIDE for 39'' & 52'' bucket

4

6805464

EDGE, CUTTING BOLT-ON 4''

5

TOOTH ASSY NLA - Order Ref. 13

6

SHANK NLA - order Ref. 13

7

14J3732

PIN, STRAIGHT 5 See BTI376

7

6737326

PIN, FLEX BUCKET TOOTH See BTI376

8

6737325

TOOTH, BUCKET 10 See BTI376 - 140 mm (5.5'') long - Was 6728801 - A

9

6729510

BOLT Was 9G001036B - A

10

95D10

NUT (2) per tooth

11

39C828

BOLT

12

63D8

NUT

13

6737322

KIT, TOOTH BUCKET 8 8 pack W/bolts & nuts - Was 6732465 - A
