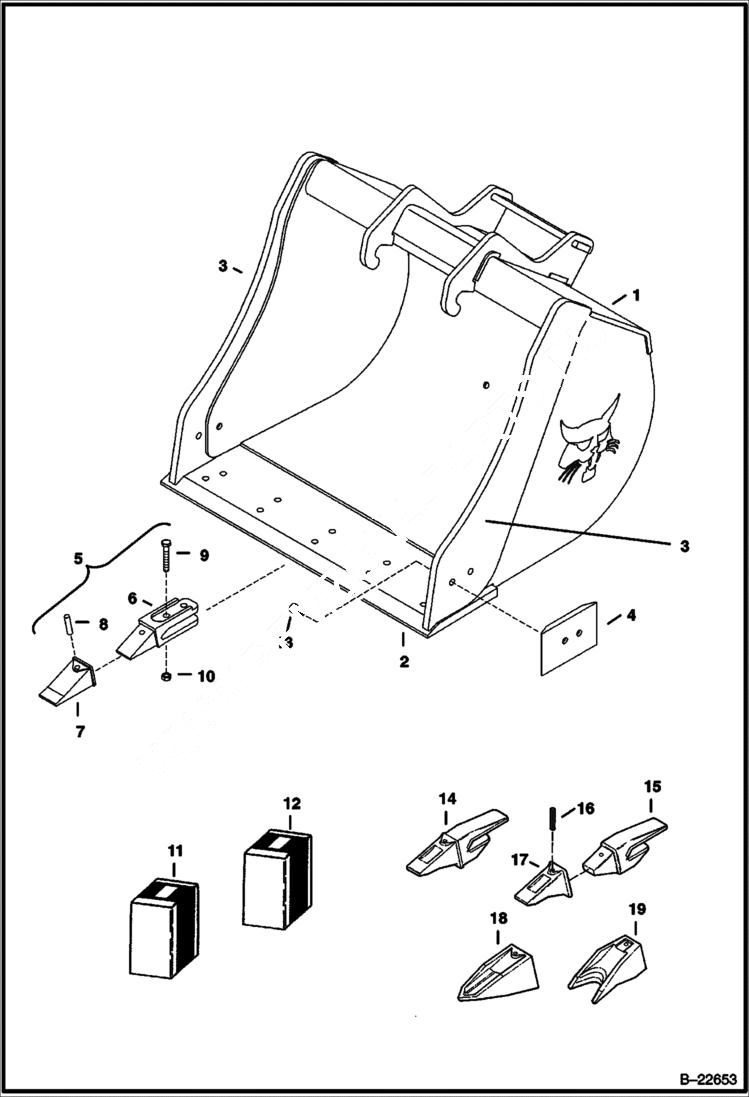

Запчасти Bobcat BUCKETS BUCKET (X-Change Mounted)(337,341) (Cast) Экскаваторы

1

BUCKET NLA - 13'' (330 mm) - uses 3 teeth - Was SALES

1

BUCKET NLA - 18'' (406 mm) - uses 4 teeth - Was SALES

1

BUCKET NLA - 24'' (609 mm) - uses 4 teeth - Was SALES

1

BUCKET NLA - 30'' (762 mm) - uses 5 teeth - Was SALES

1

BUCKET NLA - 36'' (914 mm) - uses 5 teeth - Was SALES

1

BUCKET NLA - 52'' (1321 mm) - no teeth - Was SALES

2

6805937

EDGE, CUTTING WELD-ON 13''

2

6807357

EDGE, CUTTING WELD-ON 18''

2

6807376

CUTTING EDGE 24'' (609 mm)

2

6807389

EDGE, CUTTING WELD-ON 30''

2

6807406

CUTTING EDGE 36'' (914 mm)

2

6805816

EDGE, CUTTING WELD ON BEVELED 52.25'' 52'' (1321 mm)

3

6805951

CUTTING EDGE for 13'' (330 mm), 18'' (457 mm), 24'' (609 mm), 30'' (762 mm) & 36'' (914 mm)

3

6805771

EDGE, CUTTING WELD-ON SIDE for 52'' bucket

4

6719407

EDGE, CUTTING BOLT-ON 4'' for 13'', 18'', 24'' 30'' & 36''

4

6805464

EDGE, CUTTING BOLT-ON 4'' for 39'' bucket & 52'' bucket

5

TOOTH ASSY NLA - order 7107330 assy - Was 6732465 - A

5

7107330

TOOTH ASSY

6

SHANK NLA - bolt-on assy - Order Ref. 5 (7107330 tooth assy) - Was 6732465

7

7107319

TOOTH, BUCKET 10 See BTI376 - 114,3 mm (4.5'') long - Was 6716001 - A

7

6737325

TOOTH, BUCKET 10 See BTI376 - 140 mm (5.5'') long - Was 6728801 - A

7

7102097

TOOTH, WIDE 4 See BTI376 - 140 mm (5.5'') long x 114,3 mm (4.5'') wide - Used on corners of bucket - not in kit - Was 6728811 - A

7

6728801

TOOTH Wuxi China made and serviced excavators only

8

14J3732

PIN, STRAIGHT 5 See BTI376

8

6737326

PIN, FLEX BUCKET TOOTH See BTI376

9

47C832

BOLT (2) per tooth - Was 47C828 - B

10

63D8

NUT (2) per tooth

11

KIT, TOOTH NLA - Order 6737322 - Was 6732465 - A

12

6737322

KIT, TOOTH BUCKET 8 8 pack W/bolts & nuts - Was 6732465 - A

13

47C820

BOLT for 13, 18, 24, 30 & 36'' buckets

13

39C828

BOLT for 52'' bucket

13

63D8

NUT Use W/39C-828 bolt on 52'' buckets

14

TOOTH ASSY NLA - Order Ref. 15, 16 (6737326 pin) & 17 - Was 7107329 - A

15

7107322

SHANK weld-on - Was 6672350 - A

16

14J3732

PIN, STRAIGHT 5 See BTI376 - Was 6671145 - A

16

6737326

PIN, FLEX BUCKET TOOTH See BTI376

17

7107317

TOOTH, BUCKET 5 [Hensley] - Was 6672351 - A

18

7107320

TOOTH, BUCKET 5 Was 6671147 - A

19

7107321

TOOTH, BUCKET 5 Was 6671148 - A
