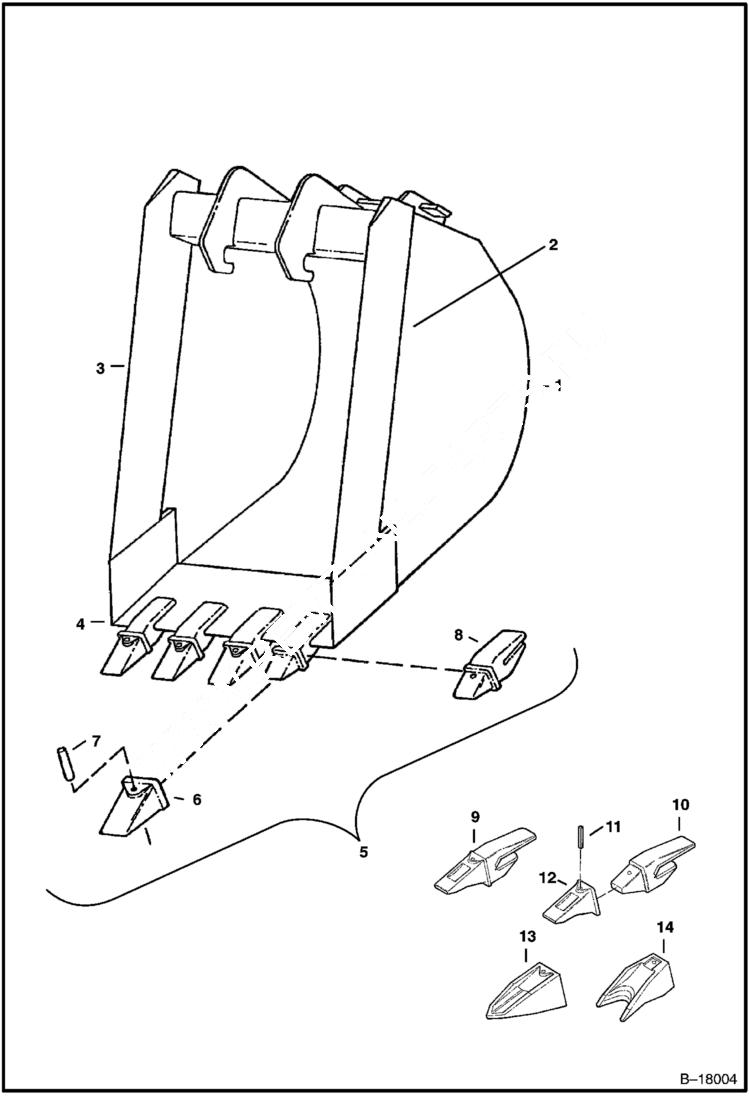

Запчасти Bobcat BUCKETS BUCKET (X-Change Mounted)(337,341) Экскаваторы

1

BUCKET NLA - 13'' (330mm) - W/Refs. 2-7 - Was SALES - A

1

BUCKET NLA - 18'' (460mm) - W/Refs. 2-7 - Was SALES - A

1

BUCKET NLA - 24'' (610mm) - W/Refs. 2-7 - Was SALES - A

1

BUCKET NLA - 30'' (760mm) - W/Refs. 2-7 - Was SALES - A

1

BUCKET NLA - 36'' (914mm) - W/Refs. 2-7 - Was SALES - A

1

BUCKET NLA - 52'' (1321mm) - W/Refs. 2-7 - Was SALES - A

2

6628330

EDGE, CUTTING WELD-ON SIDE LH - for 13'', 18'', 24'', 30'' & 36'' bucket

2

EDGE, CUTTING WELD-ON SIDE NLA - LH - for 52'' bucket - old style - Was 6537135 - A

2

6805771

EDGE, CUTTING WELD-ON SIDE LH & RH - for 52'' bucket - new style

3

6628331

EDGE, CUTTING WELD-ON SIDE RH - for 13'', 18'', 24'', 30'' & 36'' bucket

3

EDGE, CUTTING WELD-ON SIDE RH - for 52'' bucket - Was 6537134 - A

3

6805771

EDGE, CUTTING WELD-ON SIDE LH & RH - for 52'' bucket - new style

4

6713683

EDGE, CUTTING WELD ON BEVELED 10.87'' Front - Weld-on - 13''(330mm) - Bucket

4

6714143

EDGE, CUTTING WELD ON BEVELED 15.87'' Front - Weld-on - 18'' (460mm) - Bucket

4

6628332

EDGE, CUTTING WELD ON BEVELED 21.95'' Front - Weld-on - 24'' (610mm) - Bucket

4

6713865

EDGE, CUTTING WELD ON BEVELED 27.87'' Front - Weld-on - 30'' (760mm) - Bucket

4

6714797

EDGE, CUTTING WELD ON BEVELED 33.87'' Front - Weld-on-36'' (914mm) - Bucket

4

6713696

EDGE, CUTTING WELD ON BEVELED 50.12'' Front - Weld-on - 52'' (1321mm) - Bucket - Old Style

4

6805816

EDGE, CUTTING WELD ON BEVELED 52.25'' Front - Weld-on - 52'' (1321mm) - Bucket - New Style

5

TOOTH ASSY NLA - W/Refs. 6, 7 & 8 [Fabco] - order Ref. 9 - Was 6669376 - A

6

POINT See BTI376 NLA - [Fabco] - Order Ref. 12- Was 6669378 - A

7

PIN NLA - Order Ref. 11 - Was 6669379 - A

8

SHANK NLA - Weld-on - W/Ref. 5 [Fabco] - Order Ref. 10

9

TOOTHASSY NLA - Order Ref. 10, 11 (6737326 pin) & 12 - Was 7107329 - A

10

7107322

SHANK weld-on - Was 6672350 - A

11

14J3732

PIN, STRAIGHT 5 See BTI376 - Was 6671145 - A

11

6737326

PIN, FLEX BUCKET TOOTH See BTI376

12

7107317

TOOTH, BUCKET 5 Was 6672351 - A

13

7107320

TOOTH, BUCKET 5 Was 6671147 - A

14

7107321

TOOTH, BUCKET 5 Was 6671148 - A
