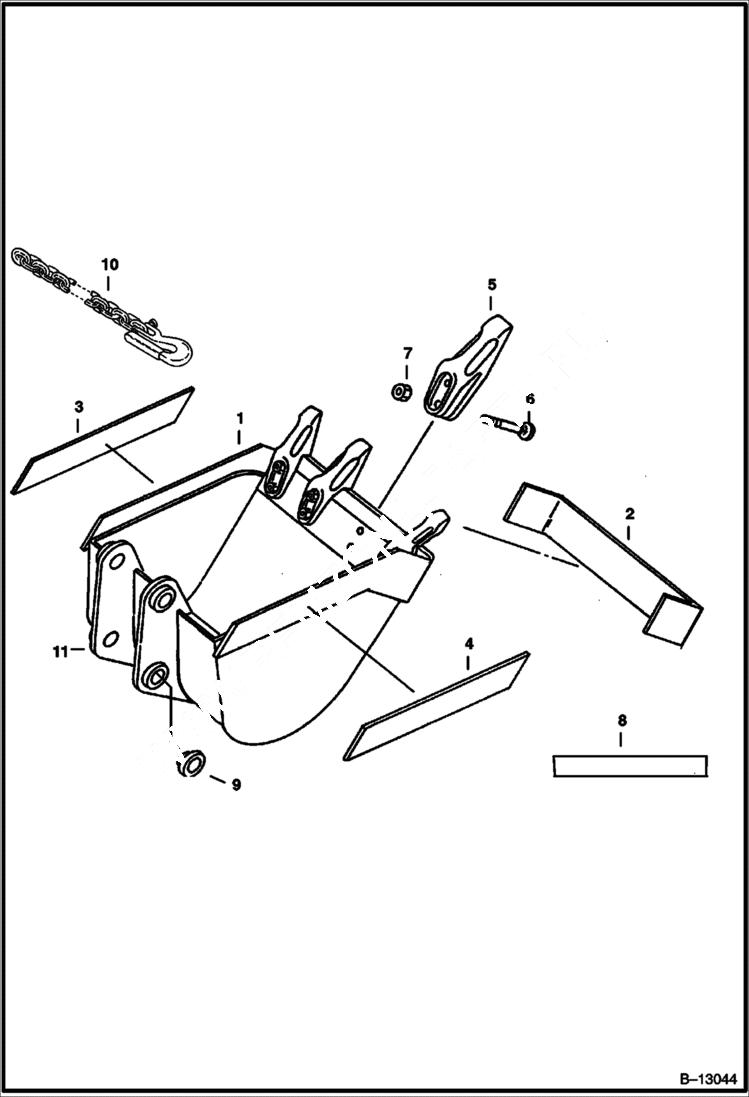

Запчасти Bobcat BUCKETS BUCKET (Pin-On)(231,331,334) (Non Current) Экскаваторы

1

BUCKET SALES - 12'' (305 mm) - SALES # 6536100

1

BUCKET SALES - 16'' (406 mm) - SALES # 6536110

1

BUCKET SALES - 20'' (508 mm) - SALES # 6536055

1

BUCKET SALES - 24'' (609 mm) - SALES # 6536120

1

BUCKET SALES - 30'' (762 mm) - SALES # 6536130

2

6534161

CUTTING EDGE 12'' (305 mm)

2

6534171

CUTTING EDGE 16'' (406 mm)

2

6534116

CUTTING EDGE 20'' (509 mm)

2

6534181

CUTTING EDGE 24'' (609 mm)

2

6536136

CUTTING EDGE 30'' (762 mm)

3

CUTTING EDGE NLA - Order Ref. 8 (6701005 Cutting Edge) - Side - L.H. - 20'' (508 mm)

4

CUTTING EDGE NLA - Order Ref. 8 (6701005 Cutting Edge) - Side - R.H. - 20'' (508 mm)

5

6684447

TOOTH Was 6667140 - A

6

1CM1245

BOLT 5

7

1DM12

LOCK NUT

8

6701005

EDGE, CUTTING BULK SINGLE BEV 66.5'' Bulk - .50'' x 4'' x 66.5''

9

6534107

BUSHING Weld on

10

6665374

CHAIN Lifting - available thru BOBCAT parts - not factory installed

11

6535986

BRACKET Also Order Ref. 9 (6534107 Bushing)
