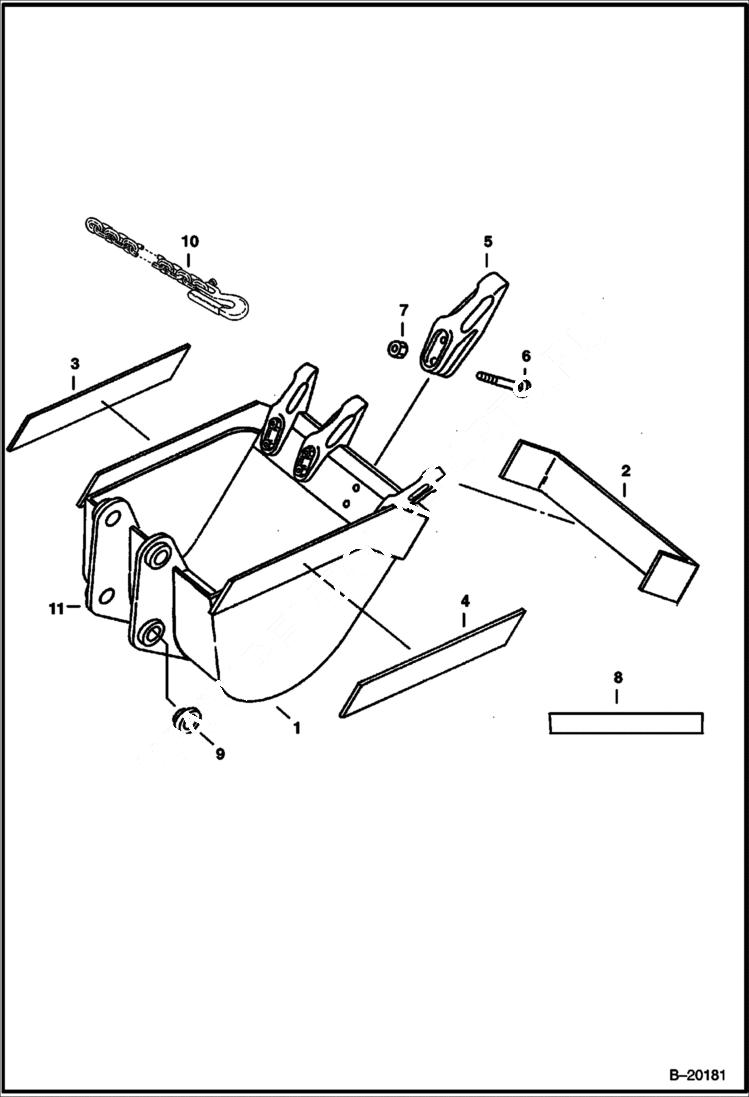

Запчасти Bobcat BUCKETS BUCKET (Pin-On)(225,325,328) (Non Current) Экскаваторы

1

BUCKET SALES - 12'' (300 mm) - SALES # 6534121

1

BUCKET SALES - 16'' (400 mm) - SALES# 6534122

1

BUCKET SALES - 20'' (500 mm) - SALES # 6534120

1

BUCKET SALES - 24'' (600 mm) - SALES # 6534123

2

6534161

CUTTING EDGE 12'' (300 mm)

2

6534171

CUTTING EDGE 16'' (400 mm) - Was 6534116 - D

2

6534116

CUTTING EDGE 20'' (500 mm) - Was 6534171 - D

2

6534181

CUTTING EDGE 24'' (600 mm)

3

CUTTING EDGE NLA - Side - L.H. - Order Ref. 8

4

CUTTING EDGE NLA - Side - R.H. - Order Ref. 8

5

6667140

TOOTH See BTI376 Was 6653724 - A

6

1CM1245

BOLT 5

7

1DM12

LOCK NUT

8

6701005

EDGE, CUTTING BULK SINGLE BEV 66.5'' Bulk .50'' x 4'' x 67.5''

9

6534107

BUSHING Weld On

10

6665374

CHAIN Lifting - Available Thru MELROE PARTS - Not Factory Installed

11

6535986

BRACKET Also Order Ref. 9
