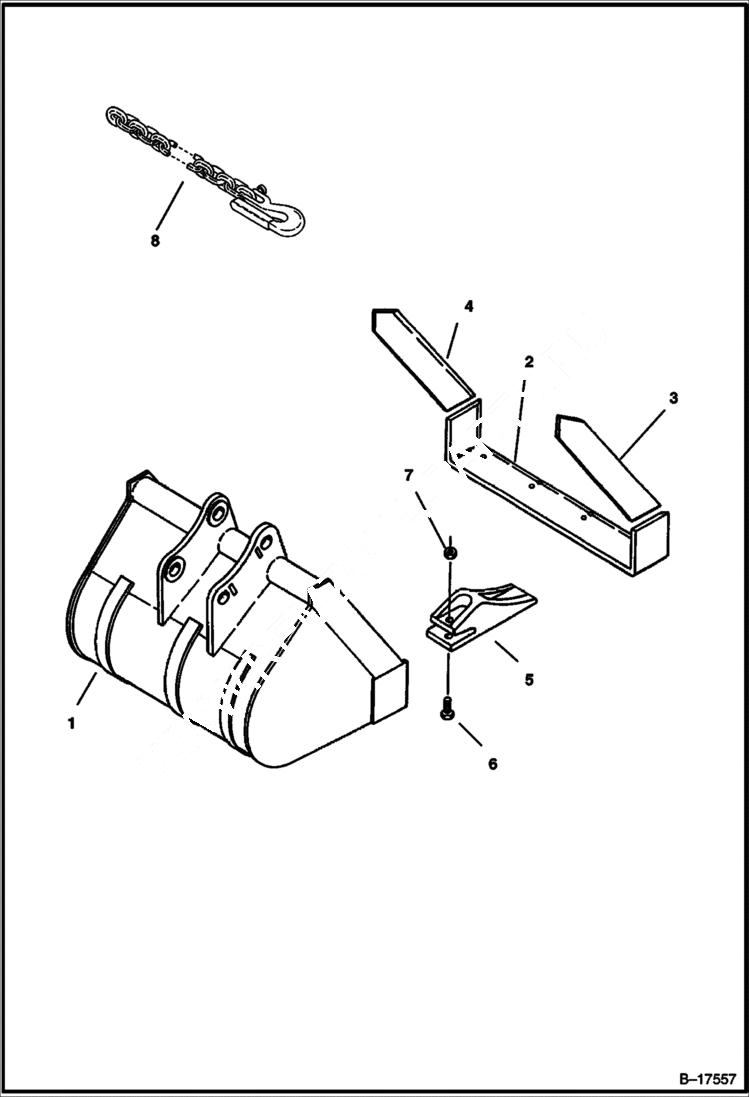

Запчасти Bobcat BUCKETS BUCKET (220,320,322) Экскаваторы

1

BUCKET NLA - 10'' (268 mm) - See Nameplate P/N 6536551 - to identify bucket order new sales bucket

1

BUCKET 12'' (318 mm) - See Nameplate P/N 6536838 - to identify bucket order new sales bucket

1

BUCKET 16'' (418 mm) - See Nameplate P/N 6536889 - to identify bucket order new sales bucket

1

BUCKET 20'' (518 mm) - See Nameplate P/N 6536842 - to identify bucket order new sales bucket

1

BUCKET SALES - 9'' (230 mm) - See Nameplate P/N 6589597 to identify bucket

1

BUCKET 12'' (318 mm) - See Nameplate P/N 6589603 to identify bucket

1

BUCKET 16'' (418 mm) - See Nameplate P/N 6589615 to identify bucket

1

BUCKET 20'' (518 mm) - See Nameplate P/N 6589609 to identify bucket

2

6586358

CUTTING EDGE 10'' (268 mm) - See Nameplate P/N 6536551 to identify bucket - no tooth holes

2

6589596

CUTTING EDGE 9'' (230 mm) - See Nameplate P/N 6589597 to identify bucket - W/tooth holes

2

6586359

CUTTING EDGE 12'' (318 mm) - See Nameplate P/N 6536838 to identify bucket - no tooth holes

2

6589608

CUTTING EDGE 12'' (318 mm) - See Nameplate P/N 6589603 to identify bucket - W/tooth holes

2

6586347

CUTTING EDGE 16'' (418 mm) - See Nameplate P/N 6536889 to identify bucket - no tooth holes

2

6589602

CUTTING EDGE 16'' (418 mm) - See Nameplate P/N 6589615 to identify bucket - W/tooth holes

2

6586360

CUTTING EDGE 20'' (518 mm) - See Nameplate P/N 6536842 - to identify bucket - no tooth holes

2

6589614

CUTTING EDGE 20'' (518 mm) - See Nameplate P/N 6589609 to identify bucket - W/tooth holes

3

6586348

EDGE, CUTTING WELD-ON SIDE L.H. side - for NLA buckets

3

6589552

CUTTING EDGE L.H. side - for SALES buckets

4

6586351

CUT EDGE R.H. side - for NLA buckets

4

6589553

CUTTING EDGE R.H. side - for SALES buckets

5

6684447

TOOTH Was 6667140 - A

6

1CM1245

BOLT 5

7

1DM12

LOCK NUT

8

6665374

CHAIN lifting - available thru BOBCAT parts - not factory installed
