BUCKET (0.05 Cubic Meters) (Mini 0.09 Cubic Meters)(100) (300 mm Wide, With Hook)

Запчасти Bobcat BUCKETS BUCKET (0.05 Cubic Meters) (Mini 0.09 Cubic Meters)(100) (300 mm Wide, With Hook) Экскаваторы

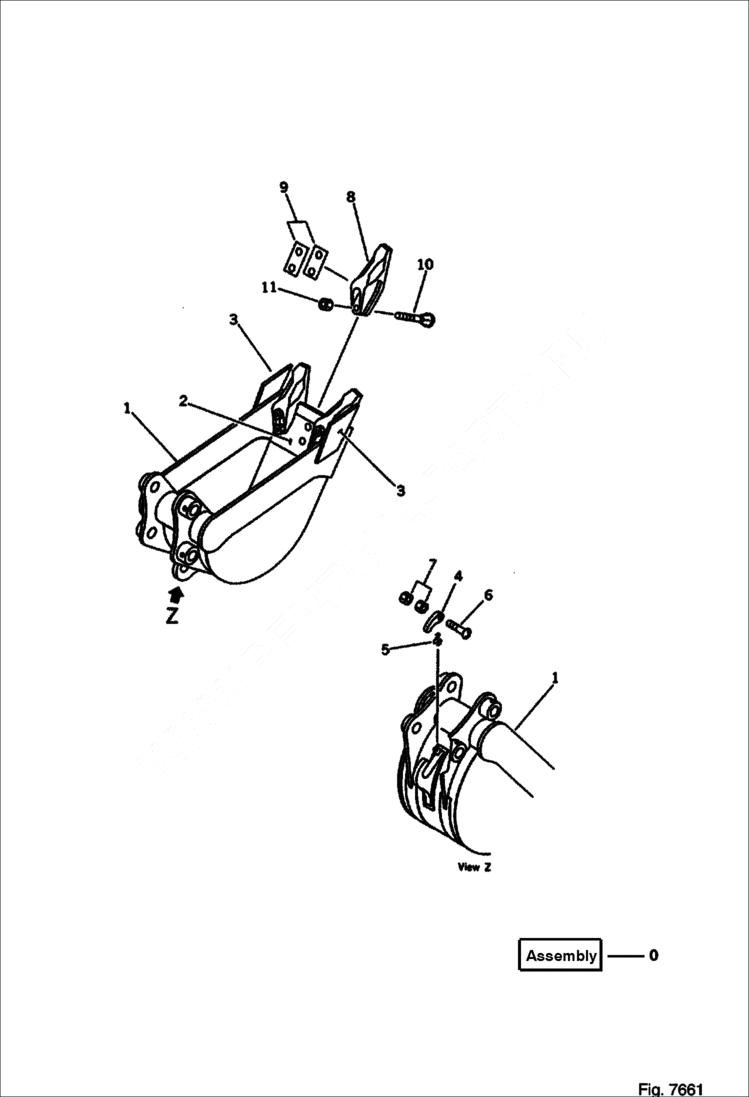

Схема запчастей Bobcat BUCKETS - BUCKET (0.05 Cubic Meters) (Mini 0.09 Cubic Meters)(100) (300 mm Wide, With Hook) Экскаваторы
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

6667182

BUCKET assy

1

BUCKET Was 20S-926-3210

2

6642879

EDGE (welded)

3

6640912

WELD/EDGE plate - welded

4

6639623

LEVER

5

6638898

SPRING

6

6637035

SCREW

7

6637105

NUT

8

6639612

TOOTH

9

6639609

KIT, SHIM assy

10

6637169

BOLT

11

6637170

NUT
