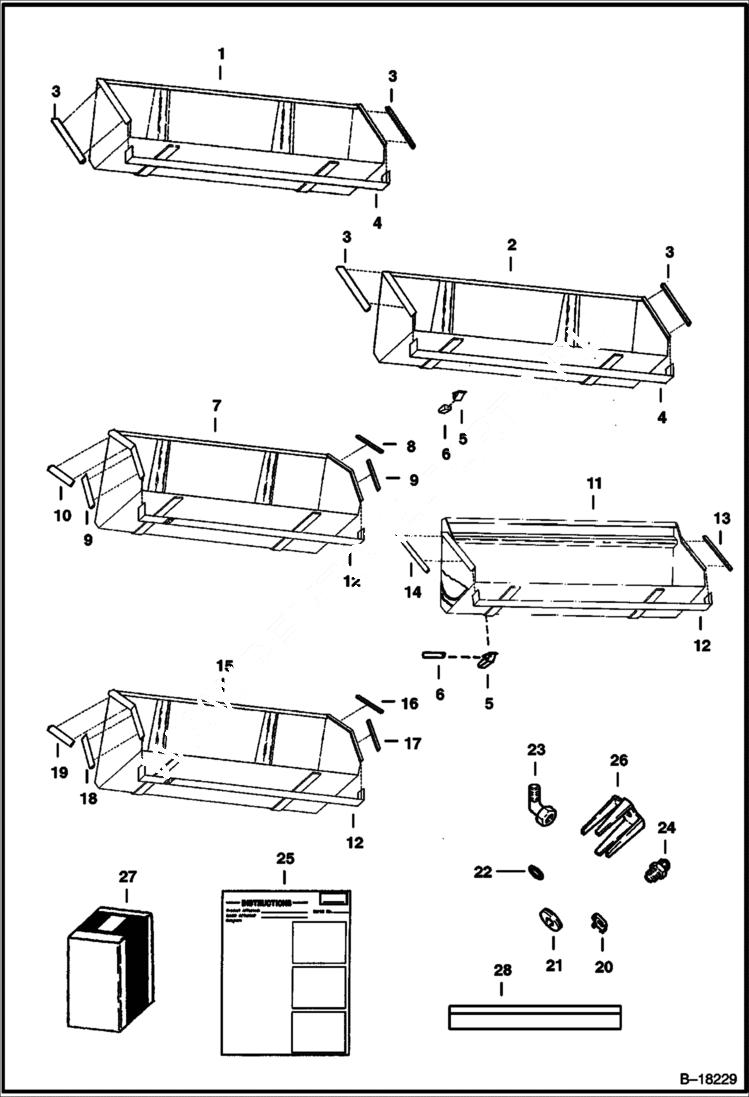

Запчасти Bobcat BUCKETS BUCKETS - 2400 Series Loader

1

BUCKET SALES - 70''(1778mm) Dirt W/O Teeth

1

BUCKET SALES - 77''(1956mm) Dirt W/O Teeth

2

BUCKET SALES - 70''(1778mm) Dirt W/Teeth

2

BUCKET SALES - 77''(1956mm) Dirt W/Teeth

3

CUTTING EDGE NLA - 30.59''(777mm) long - Order Ref. 28 - Was 6529884 - A

4

6529878

CUTTING EDGE 70'' x 6''(1778 x 152mm)

4

6529889

CUTTING EDGE 77'' x 6''(1956 x 152mm)

5

6630424

TOOTH

5

6630397

TOOTH ASSY Tooth, Shank & Pin

6

6567620

PIN

7

BUCKET SALES - 70''(1778mm) Fertilizer

7

BUCKET SALES - 77''(1956mm) Fertilizer

8

CUTTING EDGE NLA - 23.65''(601mm) long - Order Ref. 28 - Was 6531384 - A

9

CUTTING EDGE NLA - 20.50''(521mm) long - Order Ref. 28 - Was 6531383 - A

10

CUTTING EDGE NLA - 23.65''(601mm) long - Order Ref. 28 - Was 6531385 - A

11

BUCKET SALES - 70''(1778mm) Dirt - W/Rounded Bottom

11

BUCKET SALES - 77''(1956mm) Dirt - W/Rounded Bottom

11

BUCKET SALES - 87''(2210mm) Dirt - W/Rounded Bottom

12

6529878

CUTTING EDGE 70'' x 6''(1778 x 152mm)

12

6529889

CUTTING EDGE 77'' x 6''(1956 x 152mm)

12

6569428

CUTTING EDGE 87'' x 6''(2210mm x 152mm)

13

CUTTING EDGE NLA - L.H. - 30.00''(762mm) long - Order Ref. 28 - Was 6531515 - A

14

CUTTING EDGE NLA - R.H. - 30.00''(762mm) long - Order Ref. 28 - Was 6531510 - A

15

BUCKET SALES - 87''(2210mm) Light Material

16

CUTTING EDGE NLA - 25.35''(644mm) long - Order Ref. 28 - Was 6567587 - A

17

CUTTING EDGE NLA - 20.56''(522mm) long - Order Ref. 28 - Was 6567585 - A

18

CUTTING EDGE NLA - 20.56''(522mm) long - Order Ref. 28 - Was 6567586 - A

19

CUTTING EDGE NLA - 25.35''(644mm) long - Order Ref. 28 - Was 6567588 - A

20

RESTRICTOR NLA - Dump Restriction, Fertilizer Bucket - Was 6592762 - A

21

6593680

RETAINER Dump Restriction, Fertilizer Bucket

22

79K10

O RING 10 Dump Restriction, Fertilizer Bucket

23

12K7

UNION Dump Restriction, Fertilizer Bucket

24

RESTRICTOR NLA - Dump Restriction, Fertilizer Bucket - Was 6662901 - A

25

6570922

INSTRUCTIONS Dump Restriction, Fertilizer Bucket

26

6579152

RESTRICTOR Dump Restriction for Fertilizer Bucket Used on Loader With S/N 12001 & Above

27

6532606

KIT Dump Restrictor - Ref. 20-26

28

6701005

EDGE, CUTTING BULK SINGLE BEV 66.5'' Bulk - 50''(12.7mm) x 4''(102mm) x 66.40''(1687mm)
