Запчасти Bobcat BUCKETS BUCKETS - 2000 Loader

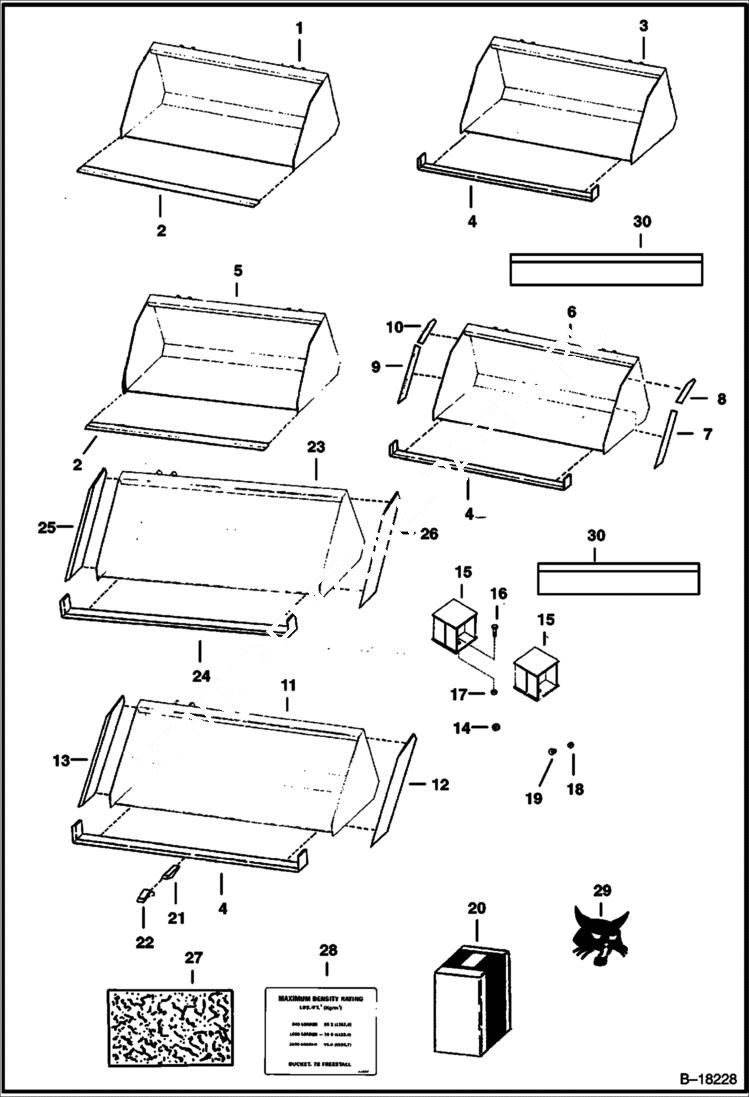

Схема запчастей Bobcat BUCKETS - BUCKETS - 2000 Loader

Артикул

Название

Примечание

Количество

1

BUCKET SALES - litter & snow - 66''(1676mm)

2

6561635

EDGE, CUTTING WELD ON BEVELED 16.78''

3

BUCKET SALES - fertilizer - 60'' (1524mm) - Used with Ref. 14 & 18-20

3

BUCKET SALES - fertilizer - 66'' (1676mm) - Used with Ref. 14 & 18-20

4

6584023

CUTTING EDGE 66''(1676mm)

4

6504321

CUTTING EDGE 60''(1524mm)

5

BUCKET NLA - utility - 66''(1676mm)

6

BUCKET SALES - utility - 66''(1676mm)

7

CUTTING EDGE NLA - 18.56'' (471,4 MM) LONG - Order Ref. 30 - WAS 6584389 - A

8

CUTTING EDGE NLA - 19.70'' (500,3 MM) LONG - Order Ref. 30 - WAS 6584389 - A

9

CUTTING EDGE NLA - 18.56'' (471,4 MM) LONG - Order Ref. 30 - WAS 6584390 - A

10

CUTTING EDGE NLA - 19.70'' (500,3 MM) LONG - Order Ref. 30 - WAS 6584391 - A

11

BUCKET SALES - dirt - 60''(1524mm)

11

BUCKET SALES - dirt - 66''(1676mm) - With or Without Teeth

12

CUTTING EDGE NLA - 30.02'' (762,5 MM) LONG - Order Ref. 30 - WAS 6584016 - A

13

CUTTING EDGE NLA - 30.02'' (762,5 MM) LONG - Order Ref. 30 - WAS 6584017 - A

14

6593680

RETAINER orifice - Bobcat Valve

15

6584784

STOP lift arm - Use W/Ref. 3

16

17C820

BOLT Use W/Ref. 3

17

85D8

NUT, 5 Use W/Ref. 3

18

6598793

ORIFICE .080/.084 - Use W/Ref. 3

19

6598690

SPRING Use W/Ref. 3

20

KIT SALES - fertilizer bucket stop - Ref. 15-19 - Use W/Ref. 3

21

6599640

SHANK

22

1550017

TOOTH, BUCKET 25

23

BUCKET SALES - free stall - 78''(1981mm)

24

6565778

CUTTING EDGE

25

CUTTING EDGE NLA - 28.50'' (723,9 MM) LONG - Order Ref. 30 - WAS 6565779 - A

26

CUTTING EDGE NLA - 28.50'' (723,9 MM) LONG - Order Ref. 30 - WAS 6565780 - A

27

6502459

SAFETY TREAD

28

6569848

DECAL density - 78''(1981mm) Freestall

29

6700191

DECAL, LOGO BOBCAT HEAD White Bobcat Head - R.H. - Was 6570599 - A

29

6700192

DECAL White Bobcat Head - L.H. - Was 6570600 - A

30

6579435

EDGE, CUTTING WELD-ON SIDE 7' (2133,6 mm) long (Cut to Fit)

Выбрано товаров: 34
