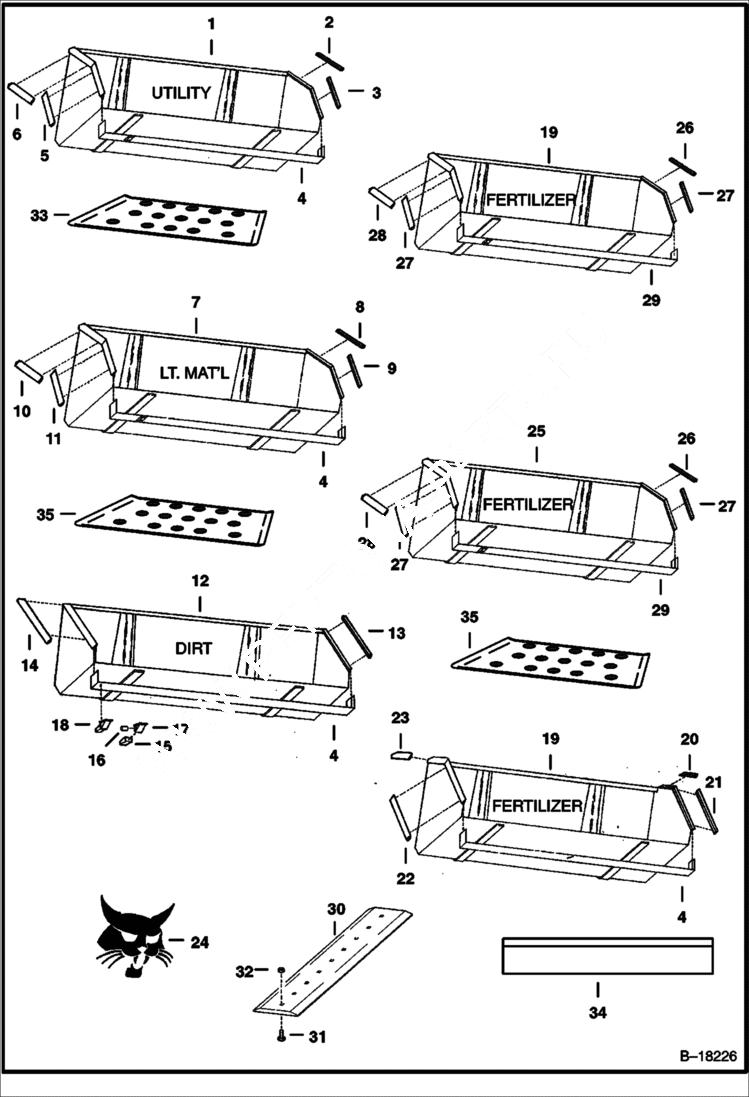

Запчасти Bobcat BUCKETS BUCKETS - 943 & 953 Loader

1

BUCKET SALES - utility - 66'', 78'', 87''

2

CUTTING EDGE NLA - 17.25'' (438,2mm) Long - Order Ref. 34 - Was 6567524 - A

3

CUTTING EDGE NLA - 19.38'' (492,3mm) Long - Order Ref. 34 - Was 6567522 - A

4

6578995

CUTTING EDGE .75'' (19,05mm) x 6.00'' (152,4mm) x 66'' (1676,4mm) Long - Was 6564161 - A

4

6565778

CUTTING EDGE .75'' (19,05mm) x 6.00'' (152,4mm) x 78'' (1981,2mm) Long

4

6569428

CUTTING EDGE .75'' (19,05mm) x 6.00'' (152,4mm) x 87'' (2209,8mm) Long

5

CUTTING EDGE NLA - 17.25'' (438,2mm) Long - Order Ref. 34 - Was 6567523 - A

6

CUTTING EDGE NLA - 19.38'' (492,3mm) Long - Order Ref. 34 - Was 6567521 - A

7

BUCKET SALES - light material - 78'' & 87''

8

CUTTING EDGE NLA - 25.35'' (643,9mm) Long - Order Ref. 34 - Was 6567588 - A

9

CUTTING EDGE NLA - 20.56'' (522,2mm) Long - Order Ref. 34 - Was 6567586 - A

10

CUTTING EDGE NLA - 25.35'' (643,9mm) Long - Order Ref. 34 - Was 6567587 - A

11

CUTTING EDGE NLA - 20.56'' (522,2mm) Long - Order Ref. 34 - Was 6567585 - A

12

BUCKET SALES - dirt - 66'', 78'', 78'' W/T & 87''

13

CUTTING EDGE NLA - 31.20'' (792,5mm) Long - Order Ref. 34 - Was 6567468 - A

14

CUTTING EDGE NLA - 31.20'' (792,5mm) Long - Order Ref. 34 - Was 6567467 - A

15

SHANK NSS - Order Ref. 18

16

6567620

PIN flex

17

6630424

TOOTH

18

6630397

TOOTH ASSY Weld On - W/Ref. 15-17

19

BUCKET NLA - fertilizer - 66'' & 78'' - Was SALES - A

20

CUTTING EDGE NLA - 21.38'' (543,1mm) Long - Order Ref. 34 - Was 6569965 - A

21

CUTTING EDGE NLA - 17.25'' (438,2mm) Long - Order Ref. 34 - Was 6569971 - A

22

CUTTING EDGE NLA - 17.25'' (438,2mm) Long - Order Ref. 34 - Was 6569972 - A

23

CUTTING EDGE NLA - 21.38'' (543,1mm) Long - Order Ref. 34 - Was 6569966 - A

24

6700191

DECAL, LOGO BOBCAT HEAD R.H. White Bobcat Head - Was 6570599 - A

24

6700192

DECAL L.H. White Bobcat Head - Was 6570600 - A

25

BUCKET SALES - fertilizer - 70'' - Sales 6531822

25

BUCKET SALES - fertilizer - 77'' - Sales 6531818

26

CUTTING EDGE NLA - 23.65'' (600,7mm) Long - Order Ref. 34 - Was 6531384 - A

27

CUTTING EDGE NLA - 20.50'' (520,7mm) Long - Order Ref. 34 - Was 6531383 - A

28

CUTTING EDGE NLA - 23.65'' (600,7mm) Long - Order Ref. 34 - Was 6531385 - A

29

6529889

CUTTING EDGE 77'' (1955,8mm) Long x 1 X 6'' w

29

6529878

CUTTING EDGE 70'' (1778mm) Long x 1 X 6'' w

30

6661453

EDGE, CUTTING BOLT-ON 68'' Bolt on - 66'' (1676,4mm) Long

30

6661454

EDGE, CUTTING BOLT ON REV 70.08'' Bolt on - 70'' (1778mm) Long

30

6661455

CUTTING EDGE Bolt on - 78'' (1981,2mm) Long

30

6661456

CUTTING EDGE Bolt on - 87'' (2209,8mm) Long

31

39C1032

BOLT Was 6660297 - A

32

85D10

NUT, 5 Was 6660298 - A

33

6568696

PLATE

34

6701005

EDGE, CUTTING BULK SINGLE BEV 66.5'' Bulk - .50'' (12,7mm) x 4'' (101,6mm) x 66.4'' (1686,56mm) Long

35

6568697

PLATE
