Запчасти Bobcat BUCKETS HYDRAULIC CYLINDER - 900 Series High Dump Bucket Loader

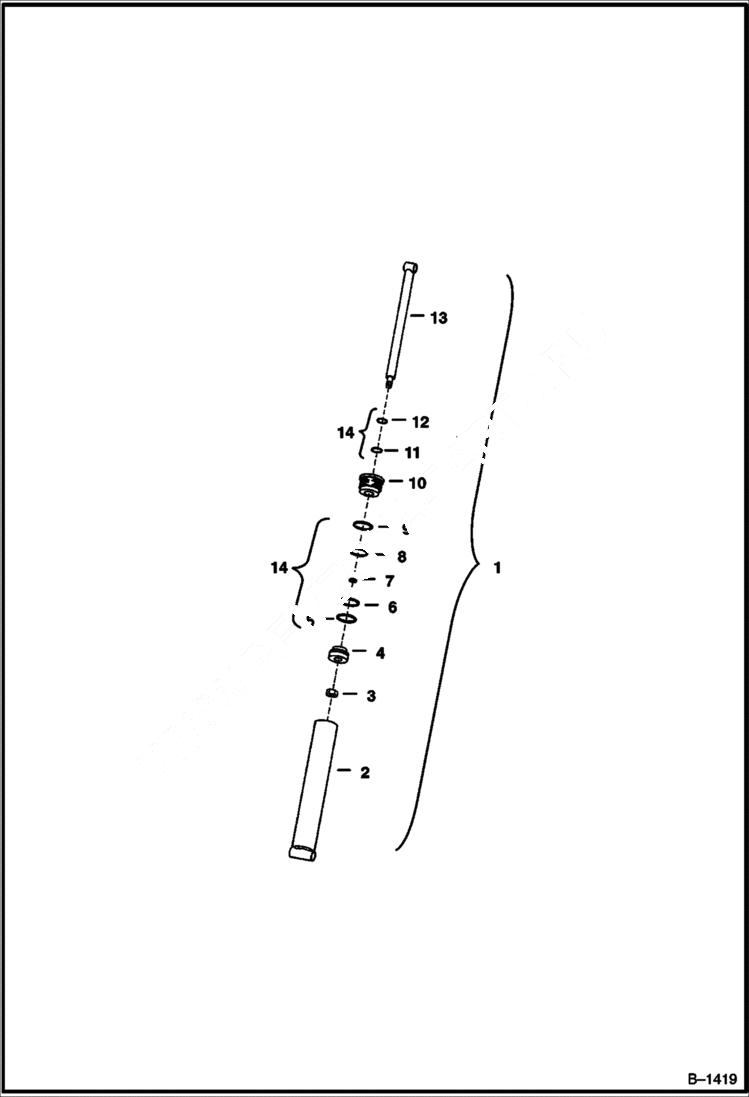

Схема запчастей Bobcat BUCKETS - HYDRAULIC CYLINDER - 900 Series High Dump Bucket Loader

Артикул

Название

Примечание

Количество

1

6541407

CYLINDER

2

CASE NLA

3

92D12

NUT Was 82D-12 - B

4

6516200

PISTON

5

6516229

PISTON SEAL

6

25K30210

O-RING

7

25K20020

O RING 10

8

25K60212

O RING 10

9

73K332

RING back-up - Was 80K000332B - B

10

6529998

HEAD Was 6516199 - A

11

6665184

SEAL Was 6519519 - A

12

6665208

SEAL wiper - Was 1657085B - A

13

6516198

ROD piston

14

6589871

SEAL KIT Ref. 3, 5 - 9, 11 & 12 - Was 6589489 - A

Выбрано товаров: 14
