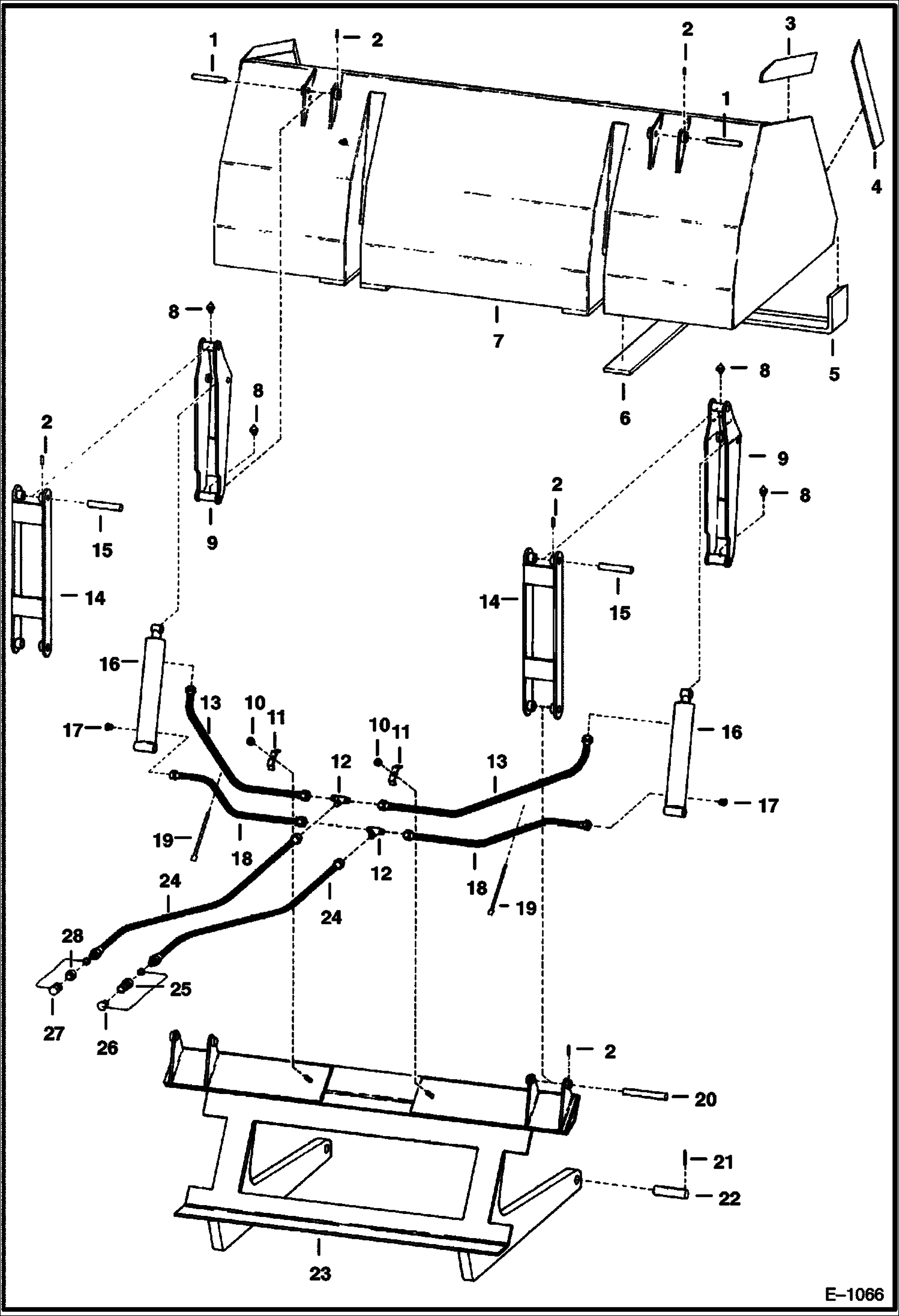

Запчасти Bobcat BUCKETS HIGH DUMP BUCKET - 900 Series Loader

1

6540346

PIN hinge

2

654619

PIN

3

6540353

CUTTING EDGE Upper Right Hand

3

6540352

CUTTING EDGE Upper Left Hand

4

CUTTING EDGE NLA - Lower Right Hand - Order 657935 bulk edge - Was 6507496 - A

4

6507697

CUTTING EDGE Lower Left Hand

5

6503813

EDGE, CUTTING WELD ON BEVELED 84'' 84'' (2133,6mm) bucket

5

6541398

CUTTING EDGE 96'' (2438,4mm) bucket

6

6540362

BAR skid

7

BUCKET NLA - high dump, 84'' (2133,6mm)

7

BUCKET NLA - high dump, 96'' (2438,4mm)

8

12H25

FITTING

9

6540365

LINK front

10

81D6

NUT Was 6515307 - A

11

6502203

CLAMP

12

712556

TEE

13

6540455

HOSE

14

6540364

LINK rear

15

6540347

PIN hinge

16

6541407

CYLINDER See Illustration HYDRAULIC CYLINDER - 900 Series/ B1419 HYDRAULIC

17

36K6

CAP

18

6540456

HOSE

19

6515196

STRAP

20

6540350

PIN hinge

21

730131

PIN

22

6540349

PIN hinge

23

6509965

MAIN FRAME

24

6540457

HOSE

25

6515596

QUICK COUPLER female

25

25K40110

O RING 10

25

73K219

BK UP RG

26

6515598

PLUG W/Chain

27

6515599

CAP W/Chain

28

6515597

QUICK COUPLER male
