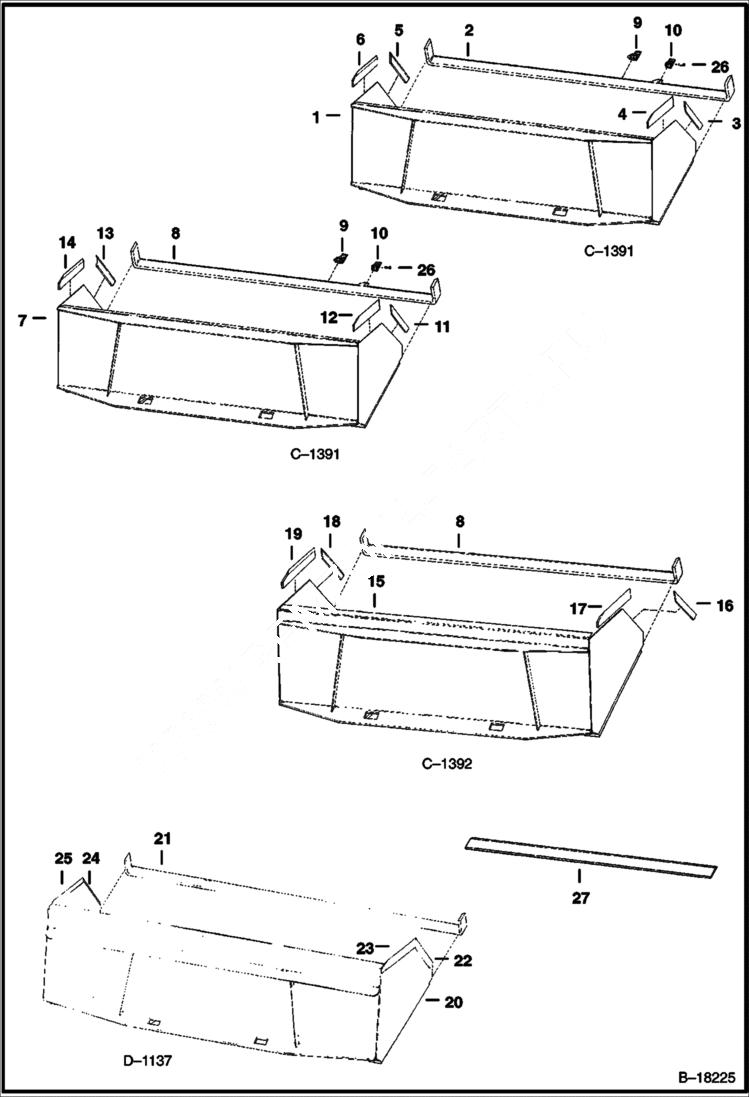

Запчасти Bobcat BUCKETS BUCKETS - 900 Series 1 x 6 Cutting Edge Loader

1

BUCKET SALES - dirt - 93'' (2362,2mm)

1

BUCKET SALES - dirt - 93'' (2362,2mm) W/Teeth

2

6529863

CUTTING EDGE 93'' x 6'' x 1'' (2362,2mm x 152,4mm x 25,4mm)

3

CUTTING EDGE NLA - 19.38''(492,3mm) long - Order Ref. 27 - Was 6529267 - A

4

CUTTING EDGE NLA - 13.62''(345,9mm) long - Order Ref. 27 - Was 6529265 - A

5

CUTTING EDGE NLA - 19.38''(492,3mm) long - Order Ref. 27 - Was 6529266 - A

6

CUTTING EDGE NLA - 13.62''(345,9mm) long - Order Ref. 27 - Was 6529264 - A

7

BUCKET SALES - dirt - 84'' (2133,6mm)

7

BUCKET SALES - dirt - 84'' (2133,6mm) W/Teeth

8

6531225

CUTTING EDGE 84'' x 6'' x 1'' (2133,6mm x 152,4mm x 25,4mm)

9

TOOTH ASSY See Illustration BUCKETS - 943 & 953/ B18226 NLA - Order 6630397 - (9) for 84'' - (10) for 93'' - Was 6650623 - A

10

6630424

TOOTH

11

CUTTING EDGE NLA - 17.25''(438,2mm) long - Order Ref. 27 - Was 6531229 - A

12

CUTTING EDGE NLA - 19.12''(485,6mm) long - Order Ref. 27 - Was 6531227 - A

13

CUTTING EDGE NLA - 17.25''(438,2mm) long - Order Ref. 27 - Was 6531228 - A

14

CUTTING EDGE NLA - 19.12''(485,6mm) long - Order Ref. 27 - Was 6531226 - A

15

BUCKET SALES - utility - 84'' (2133,6mm)

16

CUTTING EDGE NLA - 18.88''(479,6mm) long - Order Ref. 27 - Was 6531219 - A

17

CUTTING EDGE NLA - 24.25''(616,0mm) long - Order Ref. 27 - Was 6531217 - A

18

CUTTING EDGE NLA - 18.88''(479,6mm) long - Order Ref. 27 - Was 6531218 - A

19

CUTTING EDGE NLA - 24.25''(616,0mm) long - Order Ref. 27 - Was 6531216 - A

20

BUCKET SALES - light material - 106'' (2692,4mm)

21

6529875

EDGE, CUTTING WELD ON 106.33'' 106'' x 6'' x 1'' (2692,4mm x 152,4mm x 25,4mm)

22

CUTTING EDGE NLA - 20.50''(520,7mm) long - Order Ref. 27 - Was 6529235 - A

23

CUTTING EDGE NLA - 26.88''(682,8mm) long - Order Ref. 27 - Was 6529243 - A

24

CUTTING EDGE NLA - 20.50''(520,7mm) long - Order Ref. 27 - Was 6529239 - A

25

CUTTING EDGE NLA - 26.88''(682,8mm) long - Order Ref. 27 - Was 6529247 - A

26

6567620

PIN

27

6701005

EDGE, CUTTING BULK SINGLE BEV 66.5'' Bulk - 66.4'' x 4'' x .50'' (1686,56mm x 101,6mm x 12,7mm)
