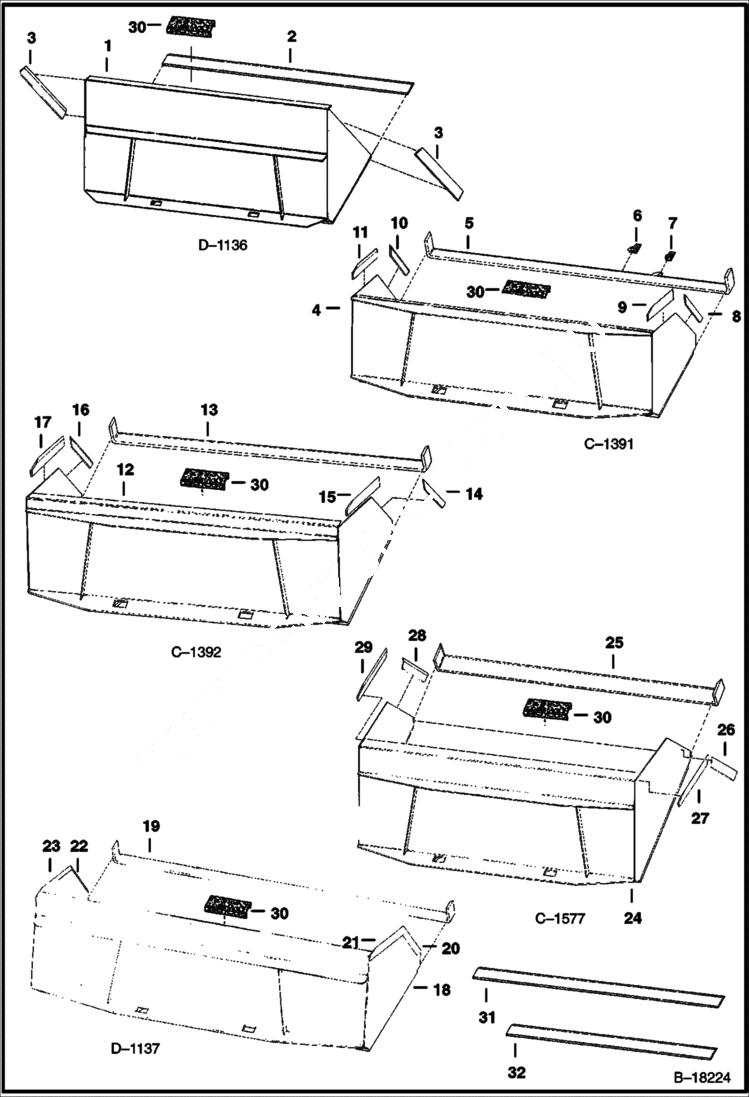

Запчасти Bobcat BUCKETS BUCKETS - 900 Series 3/4 x 6 Cutting Edge Loader

1

BUCKET NLA - barge - 78'' (1981,2mm)

1

BUCKET SALES - barge - 84'' (2133,6mm) - Was NLA - A

2

6505799

CUTTING EDGE 78'' x 6'' x .75'' (1981,2mm x 152,4mm x 19,05mm)

2

6507492

EDGE, CUTTING WELD ON BEVELED 85.53'' 85.5'' x 6'' x .75'' (2171,7mm x 152,4mm x 19,05mm)

3

CUTTING EDGE NLA - L.H. - 48.06''(1220,7mm) long - Order Ref. 32 - Was 6505797 - A

3

CUTTING EDGE NLA - R.H. - 48.06''(1220,7mm) long - Order Ref. 32 - Was 6505798 - A

4

BUCKET NLA - digging - 84'' (2133,6mm) - Was SALES - A

4

BUCKET NLA - digging - 84'' (2133,6mm) - W/Teeth - Was SALES - A

4

BUCKET NLA - digging - 93'' (2362,2mm) - Was SALES - A

5

6503813

EDGE, CUTTING WELD ON BEVELED 84'' 84'' x 6'' x .75'' (2133,6mm x 152,4mm x 19,05mm)

5

6509723

EDGE, CUTTING WELD ON BEVELED 91.52'' 93'' x 6'' x .75'' (2362,2mm x 152,6mm x 19,05mm)

6

6501986

SHANK & TOOTH

7

TOOTH NLA - Order 7107333 Tooth Assy. - Was 1550041B - A

8

CUTTING EDGE NLA - 17.44''(443,0mm) long - Order Ref. 31 - Was 6503814 - A

9

CUTTING EDGE NLA - 18.62''(472,9mm) long - Order Ref. 31- Was 6503816 - A

10

CUTTING EDGE NLA - 17.44''(443,0mm) long - Order Ref. 31- Was 6503815 - A

11

CUTTING EDGE NLA - 18.62''(472,9mm) long - Order Ref. 31- Was 6503817 - A

12

BUCKET NLA - utility - 84'' (2133,6mm) - Was SALES - A

13

6503813

EDGE, CUTTING WELD ON BEVELED 84'' 84'' x 6'' x .75'' (2133,6mm x 152,4mm x 19,05mm)

14

CUTTING EDGE NLA - 18.88''(479,6mm) long - Order Ref. 31 - Was 6503804 - A

15

CUTTING EDGE NLA - 23.81''(604,8mm) long - Order Ref. 31 - Was 6503806 - A

16

CUTTING EDGE NLA - 18.88''(479,6mm) long - Order Ref. 31- Was 6503805 - A

17

CUTTING EDGE NLA - 23.81''(604,8mm) long - Order Ref. 31 - Was 6503807 - A

18

BUCKET NLA - light material - 84'' (2133,6mm) - Was SALES - A

18

BUCKET NLA - light material - 94'' (2387,6mm) - Was SALES - A

18

BUCKET NLA - light material - 106'' (2692,4mm) - Was SALES - A

19

6503813

EDGE, CUTTING WELD ON BEVELED 84'' 84'' x 6'' x .75'' (2133,6mm x 152,4mm 19,05mm)

19

6503823

EDGE, CUTTING WELD ON 94.25'' 94'' x 6'' x .75'' (2387,6mm x 152,4mm x 19,05mm)

19

6504100

EDGE, CUTTING WELD ON BEVELED 106.39'' 106'' x 6'' x .75'' (2692,4mm x 152,4mm x 19,05mm)

20

CUTTING EDGE NLA - 20.00''(508,0mm) long - Order Ref. 31 - Was 6503827 - A

21

CUTTING EDGE NLA - 27.38''(695,5mm) long - Order Ref. 31 - Was 6503825 - A

22

CUTTING EDGE NLA - 20.00''(508,0mm) long - Order Ref. 31 - Was 6503826 - A

23

CUTTING EDGE NLA - 27.38''(695,5mm) long - Order Ref. 31 - Was 6503824 - A

24

BUCKET NLA - loose material - 84'' (2133,6mm) - Was SALES - A

25

6503813

EDGE, CUTTING WELD ON BEVELED 84'' 84'' x 6'' x .75'' ( 2133,6mm x 152,4mm x 19,05mm)

26

CUTTING EDGE NLA - 23.25''(590,6mm) long - Order Ref. 31 - Was 6548976 - A

27

CUTTING EDGE NLA - 23.81''(604,8mm) long - Order Ref. 31 - Was 6503806 - A

28

CUTTING EDGE NLA - 23.25''(590,6mm) long - Order Ref. 31 - Was 6549877 - A

29

CUTTING EDGE NLA - 23.81''(604,8mm) long - Order Ref. 31 - Was 6503807 - A

30

6502459

SAFETY TREAD

31

6579435

EDGE, CUTTING WELD-ON SIDE 7' x 3'' x 3/8'' (2133,6mm x 76,2mm x 9,53mm) - Cut to fit

32

6701005

EDGE, CUTTING BULK SINGLE BEV 66.5'' Bulk - 66.4'' x 4'' x .50'' (1686.56mm x 101,6mm x 12,7mm)
