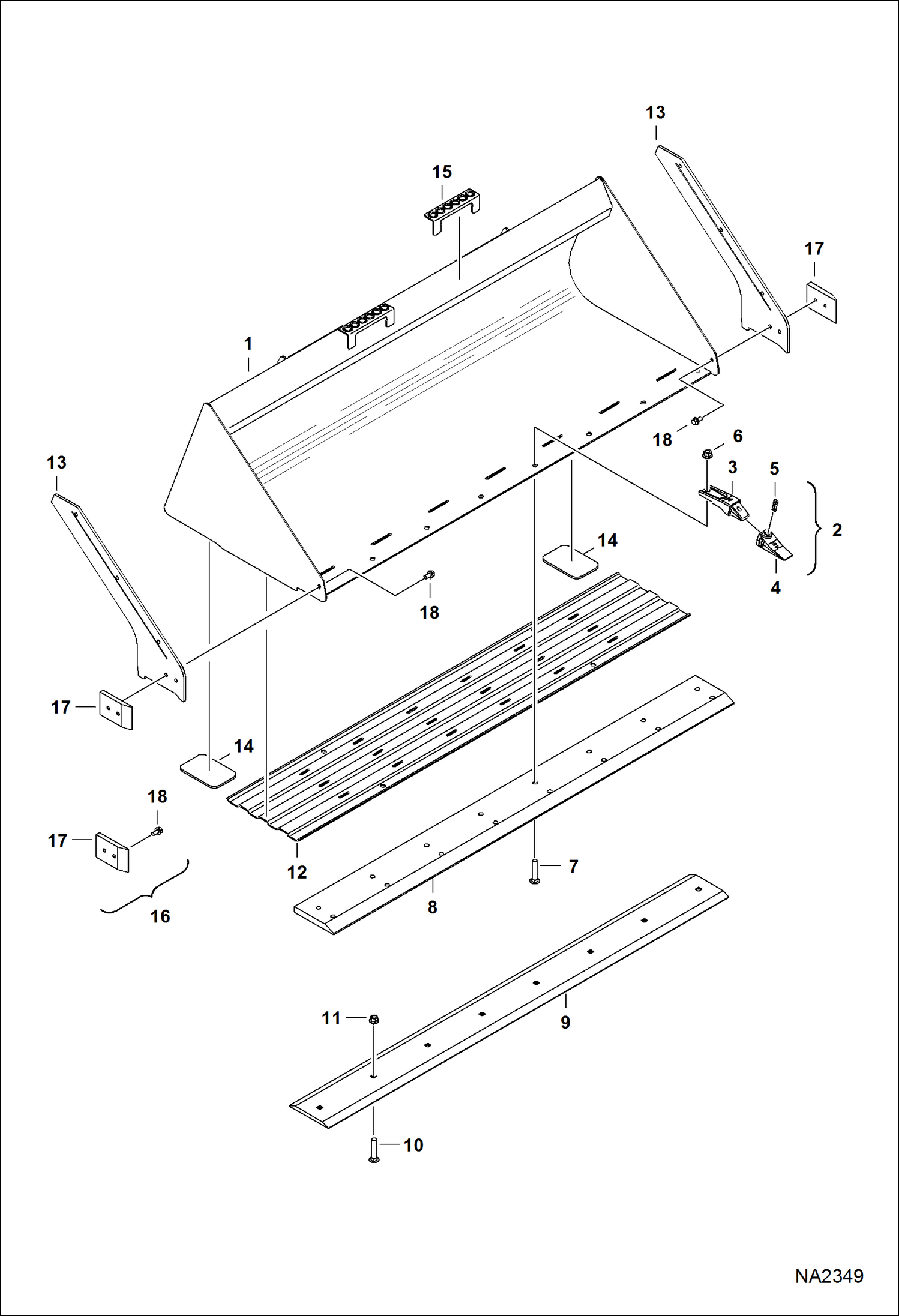

Запчасти Bobcat BUCKETS BUCKETS - SEVERE DUTY 82 & 88 Loader

1

BUCKET SALES #7173162 - severe duty 82''

1

BUCKET SALES #7173161- severe duty 88''

2

7173896

KIT, TOOTH BUCKET 8 W/Ref. 3-7 - contains 8 tooth assy's W/ hardware

3

SHANK NSS - Order Ref. 2

4

6737325

TOOTH, BUCKET 10 See BTI376 - 140 mm (5.5'') long - (8) for 82'', (9) for 88''

5

6737326

PIN, FLEX BUCKET TOOTH qty. 8 for 82'', qty. 9 for 88''

6

57D10

NUT qty. 16 for 82'', qty. 18 for 88''

7

95G1040

BOLT qty. 16 for 82'', qty. 18 for 88''

8

7154590

EDGE, CUTTING WELD-ON 82'' for 82'' bucket - weld on

8

7156103

EDGE, CUTTING WELD-ON 88'' for 88'' bucket - weld on

9

7172352

EDGE, CUTTING BOLT-ON 82'' bolt on - for 82'' bucket

9

6727317

EDGE, CUTTING BOLT-ON 88''

10

39C1036

BOLT (8) for 82'', (9) for 88''

11

85D10

NUT, 5 (8) for 82'', (9) for 88'' - Was 85D8 - B,D

12

7155111

BRACE, BOTTOM for 82'' bucket

12

6732749

SKID PLATE for 88'' bucket

13

7156102

EDGE, CUTTING WELD-ON SIDE

14

7172350

PLATE, WEAR

15

6716014

STEP

16

6729084

KIT, EDGE CUTTING side cutter - W/ qty. (2) of Ref. 17, qty. (4) of Ref. 18

17

6719407

EDGE, CUTTING BOLT-ON 4''

18

31C816

BOLT
