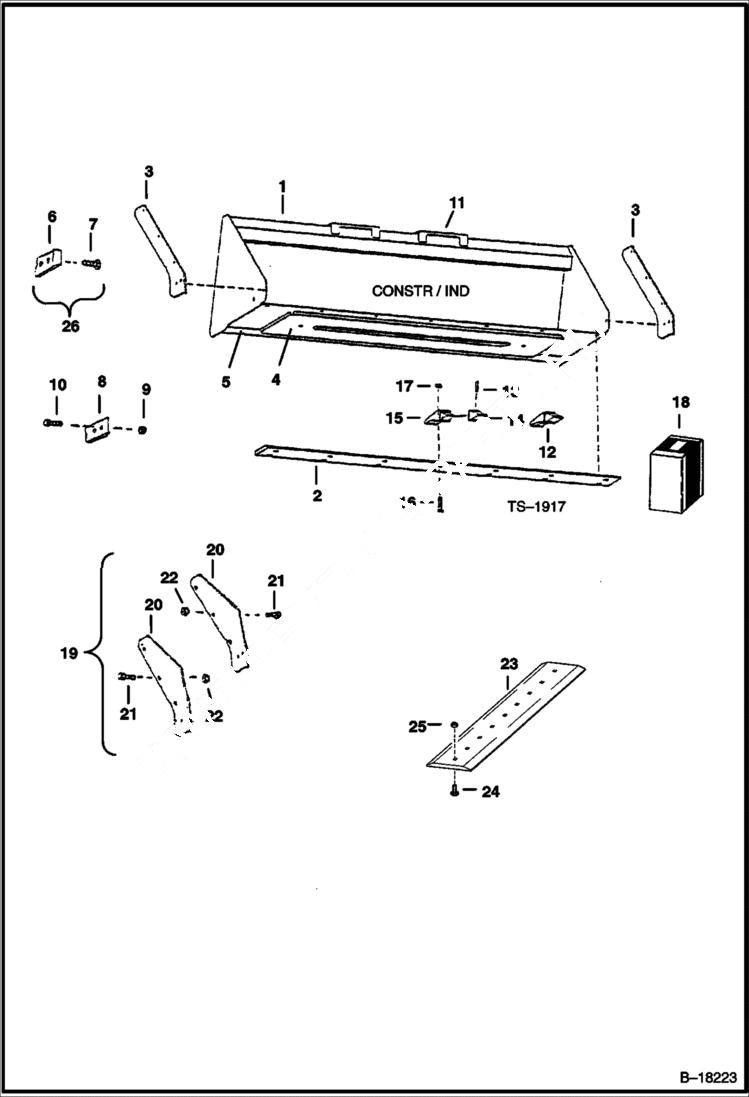

Запчасти Bobcat BUCKETS BUCKETS - HD Construction/Industrial 68, 74, 80, 84 & 88 Loader

1

BUCKET SALES - 68''(1727mm) HD Constr / Ind - Sales #7124426

1

BUCKET SALES - 74''(1880mm) HD Constr / Ind - Sales # 6732305

1

BUCKET SALES - 80''(2032mm) HD Constr / Ind - Sales #6726344

1

BUCKET SALES - 84''(2134mm) HD Constr / Ind - Sales #7125917

1

BUCKET SALES - 88''(2235mm) HD Constr / Ind - Sales #6726328

2

7124425

EDGE, CUTTING WELD-ON 68'' W/HOLES front - 68'' (1727 mm) - weld-on

2

6732311

EDGE, CUTTING WELD-ON 74'' W/HOLES front - 74'' (1880 mm) long x 8'' (203 mm) wide- weld on

2

6729371

EDGE, CUTTING WELD-ON 80'' W/HOLES front - 80'' (2032 mm) - weld-on

2

7125923

EDGE, CUTTING BOLT ON BEVELED 84'' front - 84''(2134mm) - weld on

2

6729372

EDGE, CUTTING WELD-ON SIDE front - 88''(2235mm) - weld on

3

6726339

CUTTING EDGE

4

6729373

SKID PLATE Use on earlier 80'' & 88'' buckets

4

6732746

SKID PLATE Use on 68'' buckets

4

6732747

SKID PLATE Use on 74'' buckets

4

6732748

SKID PLATE Use on 80'' buckets

4

7125925

SKID PLATE 84 Use on 84'' buckets

4

6732749

SKID PLATE Use on 88'' buckets

5

6728341

WEAR BAR rear - 80''(2032mm) - used on earlier buckets - Was 6729378 - A

5

6729379

WEAR BAR rear - 88''(2235mm) - used on earlier buckets

6

6719407

EDGE, CUTTING BOLT-ON 4'' side - W/threaded holes

7

31C816

BOLT Use W/Ref. 6

8

6805464

EDGE, CUTTING BOLT-ON 4'' side - W/countersunk thru holes

9

97D8

NUT Use with Ref. 8

10

39C828

BOLT Use with Ref. 8

11

6716014

STEP

12

TOOTH ASSY NLA- W/Ref. 13 - 15 - Order Ref. 18

13

14J3732

PIN, STRAIGHT 5 See BTI376

13

6737326

PIN, FLEX BUCKET TOOTH See BTI376

14

7107319

TOOTH, BUCKET 10 See BTI376 - 114,3 mm (4.5'') long - Was 6716001 - A

14

6737325

TOOTH, BUCKET 10 See BTI376 - 140 mm (5.5'') long - Was 6728801 - A

14

7102097

TOOTH, WIDE 4 See BTI376 - 140 mm (5.5'') long x 114,3 mm (4.5'') wide - Used on corners of bucket - not in kit - Was 6728811 - A

15

SHANK NLA - Order Ref. 18

16

6729510

BOLT

17

57D10

NUT

18

6737322

KIT, TOOTH BUCKET 8 with 8 tooth assy's & hardware - Was 6732465 - A

18

KIT NLA - 48 tooth - Order 6737322 - Was 6680599 - A

19

6728353

KIT side edge - W/Ref. 20 - 22

20

6728354

EDGE, CUTTING BOLT-ON SIDE bolt on

21

31C816

BOLT

22

57D8

NUT 10

23

6718006

EDGE, CUTTING BOLT-ON 68''

23

6718007

EDGE, CUTTING BOLT ON 74''

23

6718008

EDGE, CUTTING BOLT-ON 80''

23

7125924

EDGE, CUTTING BOLT-ON 84''

23

6727317

EDGE, CUTTING BOLT-ON 88''

24

39C1032

BOLT

25

85D10

NUT, 5

26

6729084

KIT, EDGE CUTTING side edges - W/Ref 6 & 7
