Запчасти Bobcat BUCKETS BUCKETS - Snow / Lt Matl 68, 74, 80, 88 & 100 Loader

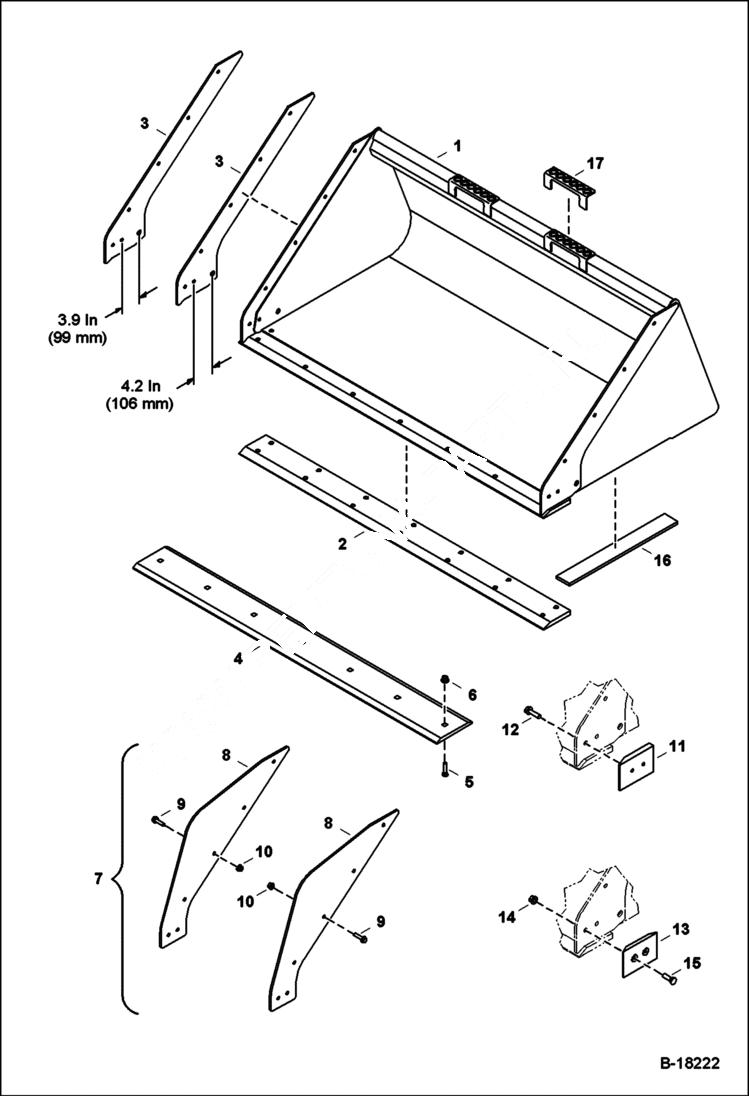

Схема запчастей Bobcat BUCKETS - BUCKETS - Snow / Lt Matl 68, 74, 80, 88 & 100 Loader

Артикул

Название

Примечание

Количество

1

BUCKET SALES #7184103 - 1727 mm (68'') snow/light material

1

BUCKET SALES #7184105 - 1880 mm (74'') snow/light material - Was 6727549 - A

1

BUCKET SALES #7184110 - 2032 mm (80'') snow/light material - Was 6727568 - A

1

BUCKET SALES #7184098 - 2235 mm (88'' mm) snow/light material - Was 6727571 - A

1

BUCKET SALES #6727787 - 2540 mm (100'') snow/light material

2

6729368

EDGE, CUTTING WELD-ON 68'' front - 14 hole - Was 6716015 - A

2

7218895

EDGE, CUTTING front - 9 hole

2

6729369

EDGE, CUTTING WELD-ON 74'' front - 16 hole - Was 6727564 - A

2

7218895

EDGE, CUTTING front - 10 hole

2

6729370

EDGE, CUTTING WELD-ON 80'' front - 16 hole - Was 6727565 - A

2

7218897

EDGE, CUTTING front - 10 hole

2

6731642

EDGE, CUTTING WELD-ON 88'' W/HOLES front - 11 hole - Was 6727566 - A

2

6731673

EDGE, CUTTING WELD-ON 100'' W/HOLES front - 19 hole - Was 6715421 - A

3

6727553

CUTTING EDGE, SIDE weld-on - 99 mm (3.9'') hole spacing - for 74'', 80'' & 88'' buckets

3

6727792

CUTTING EDGE, SIDE weld-on - 99 mm (3.9'') hole spacing - for 100'' buckets

3

7183866

EDGE, CUTTING WELD-ON SIDE 106 mm (4.2'') hole spacing - for 68'', 74'', 80'' & 88'' bucket

4

6718006

EDGE, CUTTING BOLT-ON 68''

4

6718007

EDGE, CUTTING BOLT ON 74''

4

6718008

EDGE, CUTTING BOLT-ON 80''

4

6727317

EDGE, CUTTING BOLT-ON 88''

4

6715464

EDGE, CUTTING BOLT-ON 100''

5

39C1032

BOLT

6

85D10

NUT, 5

7

6727778

KIT side edge - W/Ref. 8-10 - for 74'', 80'' & 88'' buckets

7

6729325

KIT side edge - W/Ref. 8-10 - for 100'' bucket

8

6727577

EDGE, CUTTING WELD ON SIDE for 74'', 80'' & 88'' buckets

8

6727798

EDGE, CUTTING WELD-ON SIDE for 100'' bucket

9

31C820

BOLT

10

83D8

NUT 5

11

6719407

EDGE, CUTTING BOLT-ON 4'' side - W/threaded holes

12

31C816

BOLT Use W/Ref. 11

13

6805464

EDGE, CUTTING BOLT-ON 4'' side - W/countersunk thru holes

14

97D8

NUT Use W/Ref. 13

15

39C828

BOLT Use W/Ref. 13

16

6727576

SKID BAR for 74'', 80'' & 88'' buckets

16

6727799

SKID BAR for 100'' bucket

17

6716014

STEP

Выбрано товаров: 37
