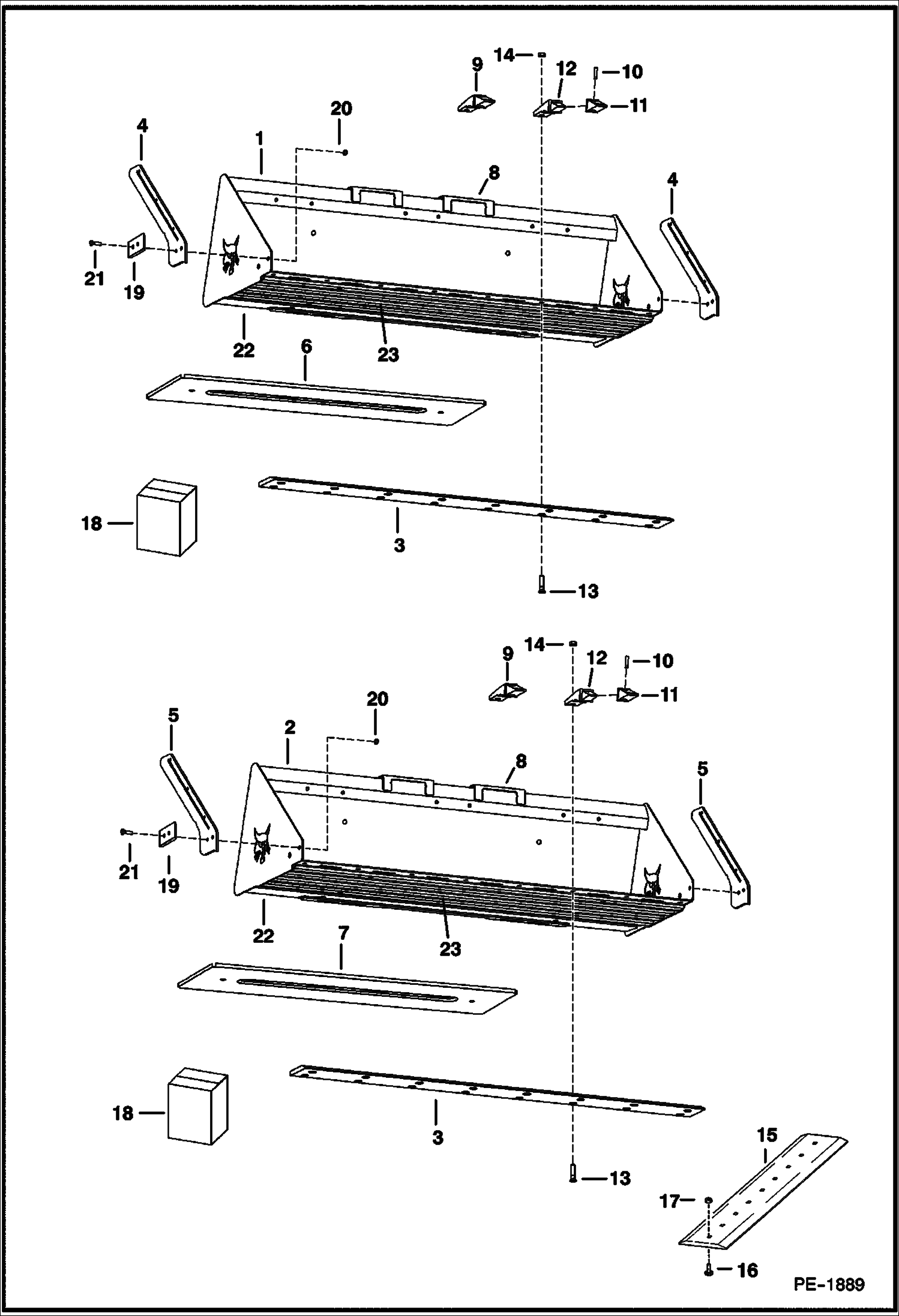

Запчасти Bobcat BUCKETS BUCKETS - ROUND BACK 50, 56, 62, 68, 74 & 80 C/1 & L/P Loader

1

BUCKET SALES - Constr/Ind - Used on T100 - 50'' (1270 mm) - Sales #7160274

1

BUCKET SALES - Constr/Ind - 56'' (1422mm) - Sales # 6737399

1

BUCKET SALES - Constr / Ind - 62''(1575mm) - Sales #6716018 & 6731403

1

BUCKET SALES - Constr/Ind - 68''(1727mm) - Sales #6715631 & 6731406

1

BUCKET SALES - Constr/Ind - 74''(1880mm) - Sales #6716023 & 6731409

1

BUCKET SALES - Constr/Ind - 80''(2032mm) - Sales #6716028 & 6731412

2

BUCKET SALES - Low Profile - Used on T100 - 50'' (1270 mm) - Sales #7161031

2

BUCKET SALES - Low profile - 56'' (1422mm) - Sales #7101903

2

BUCKET SALES - Low Profile - 62''(1575mm) - Sales #6716034 & 6731415

2

BUCKET SALES - Low Profile - 68''(1727mm) - Sales #6716040 & 6731418

2

BUCKET SALES - Low Profile - 74''(1880mm) - Sales #6716043 & 6731421

2

BUCKET SALES - Low Profile - 80''(2032mm) - Sales #6716048 & 6731424

3

7160263

EDGE, CUTTING WELD-ON 50'' front - 50'' (1270 mm) - weld on

3

6737403

EDGE, CUTTING WELD-ON 56'' W/HOLES front - 56'' (1422mm) - weld on

3

6729367

EDGE, CUTTING WELD-ON 62'' Was 6716049 - A

3

6729368

EDGE, CUTTING WELD-ON 68'' Was 6716015 - A

3

6729369

EDGE, CUTTING WELD-ON 74'' front - Was 6716050 - A

3

6729370

EDGE, CUTTING WELD-ON 80'' front - Was 6716051 - A

4

6715634

CUTTING EDGE Side - for Constr/Ind bucket - weld on

5

6716037

CUTTING EDGE Side - for Low Profile bucket - weld on

6

6729373

SKID PLATE for Constr/Ind bucket - used on earlier buckets - Was 6715639 - A

7

6729374

SKID PLATE for Low Profile bucket - Used on earlier buckets - Was 6717353 - A

8

6716014

STEP

9

TOOTH ASSY NLA - W/Ref. 10-12 - Order Ref. 18 - Was 6717209 - A

10

14J3732

PIN, STRAIGHT 5 See BTI376

10

6737326

PIN, FLEX BUCKET TOOTH See BTI376

11

7107319

TOOTH, BUCKET 10 See BTI376 - 114,3 mm (4.5'') long - Was 6716001 - A

11

6737325

TOOTH, BUCKET 10 See BTI376 - 140 mm (5.5'') long - Was 6728801 - A

11

7102097

TOOTH, WIDE 4 See BTI376 - 140 mm (5.5'') long x 114,3 mm (4.5'') wide - Used on corners of bucket - not in kit - Was 6728811 - A

12

SHANK NLA - Order Ref. 18 - Was 6716017 - A

13

6729510

BOLT Was 6718199 - A

14

57D10

NUT 95D000010B - B

15

7160267

EDGE, CUTTING BOLT-ON 50'' 6 hole - double edge

15

6718005

EDGE, CUTTING BOLT-ON 62'' 7 holes - double edge

15

6718006

EDGE, CUTTING BOLT-ON 68'' 7 holes - double edge

15

6718007

EDGE, CUTTING BOLT ON 74'' 8 holes - double edge

15

6718008

EDGE, CUTTING BOLT-ON 80'' 8 holes - double edge

15

7102450

EDGE, CUTTING BOLT-ON 56'' 6 holes - double edge

16

39C1032

BOLT Was 6660297 - A

17

85D10

NUT, 5 Was 6660298 - A

18

6737322

KIT, TOOTH BUCKET 8 with 8 tooth assy's & hardware - Was 6732465 - A

18

KIT NLA - 48 tooth - w/nuts & bolts - Order 6737322 - Was 6680599 - A

19

6805464

EDGE, CUTTING BOLT-ON 4'' side

20

95D8

NUT

21

39C828

BOLT

22

6729375

WEAR BAR rear - 62''(1575mm) - used on earlier buckets

22

6729376

WEAR BAR rear - 68''(1727mm) - used on earlier buckets

22

6728340

WEAR BAR,74'' rear - 74''(1880mm) - used on earlier buckets - Was 6729377 - A

22

6728341

WEAR BAR rear - 80''(2032mm) - used on earlier buckets - Was 6729378 - A

23

7160270

SKID PLATE, 50'' 50'' - C/I or L/P bucket

23

6737407

SKID PLATE 56'' 56'' - C/I or L/P bucket

23

6732745

SKID PLATE 62'' 62'' - C/I or L/P bucket

23

6732746

SKID PLATE 68'' - C/I or L/P bucket

23

6732747

SKID PLATE 74'' - C/I or L/P bucket

23

6732748

SKID PLATE 80'' - C/I or L/P bucket
