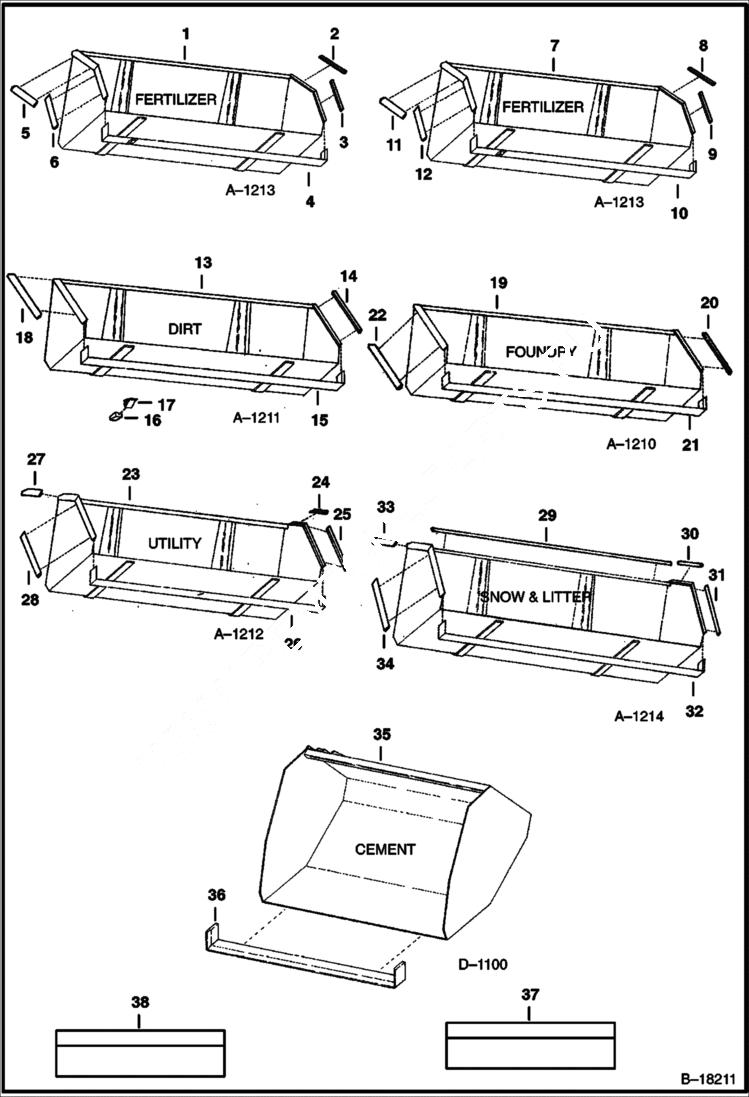

Запчасти Bobcat BUCKETS BUCKETS - 600 & 700 Series Loader

1

BUCKET SALES - fertilizer 54'' (1372mm) - see serviceletter dated 2 Nov. 1994

1

BUCKET SALES - fertilizer 60'' (1524mm)

2

CUTTING EDGE NLA - 19.20'' (488MM) LONG - Order Ref. 37 - WAS 6543899 - A

3

CUTTING EDGE NLA - 13.87'' (352MM) LONG - Order Ref. 37 - WAS 6543896 - A

4

6578956

EDGE, CUTTING BOLT ON BEVELED 54.02'' 54'' (1372mm) long - 4'' (102mm) wide - Was 6502333 - A

4

6578966

CUTTING EDGE 60'' (1524mm) long - 4'' (102mm) wide- with holes for bolt-on cutting edge - Was 6502805 - A

5

CUTTING EDGE NLA - 19.20'' (488MM) LONG - Order Ref. 37 - WAS 6543898 - A

6

CUTTING EDGE NLA - 13.87'' (352MM) LONG - Order Ref. 37 - WAS 6543897 - A

7

BUCKET SALES - fertilizer 60'' (1524mm)

7

BUCKET SALES - fertilizer 66'' (1676mm)

8

CUTTING EDGE NLA - 19.62'' (498MM) LONG - Order Ref. 37 - WAS 6560730 - A

9

CUTTING EDGE NLA - 14.75'' (375MM) LONG - Order Ref. 37 - WAS 6560732 - A

10

6578966

CUTTING EDGE 60'' (1524mm) long - 4'' (102mm) wide - with holes for bolt-on cutting edge- Was 6502805 - A

10

6578995

CUTTING EDGE 66'' (1676mm) long - 6'' (152mm) wide - Was 6502365 - B

10

CUTTING EDGE 66'' (1676,mm) long - 3'' (76mm) wide

11

CUTTING EDGE NLA - 19.62'' (498MM) LONG - Order Ref. 37 - WAS 6560729 - A

12

CUTTING EDGE NLA - 14.75'' (375MM) LONG - Order Ref. 37 - WAS 6560731 - A

13

BUCKET SALES - 54'' (1372mm) dirt - W or W/O Teeth

13

BUCKET SALES - 60'' (1524mm) dirt - W or W/O Teeth

14

CUTTING EDGE NLA - 24'' (610MM) LONG - Order Ref. 37 - WAS 6548261 - A

15

6577903

EDGE, CUTTING WELD ON BEVELED 54.05'' 54'' (1372mm) long - 6'' (152mm) wide - Without holes- Was 6504322 - A

15

6713710

EDGE, CUTTING BOLT ON BEVELED 54.02'' 54'' x 6'' - with holes for bolt-on cutting edge

15

6577904

CUTTING EDGE 60'' (1524mm) long - 6'' (152mm) wide

16

6560375

SHANK Welds Under Cutting Edge

16

6599640

SHANK Welds on Top of Cutting Edge

16

6707129

SHANK Welds on Top of Cutting Edge - with roll pin hole

17

1550017

TOOTH, BUCKET 25 pin on

17

TOOTH 25 NLA - clamp on - Order 1550017 tooth - Was 6682026 - A

17

18J2028

PIN, ROLL for shank & tooth with hole

18

CUTTING EDGE NLA - 25''(635mm) long - Order Ref. 37 - Was 6548260 - A

19

BUCKET SALES - foundry 54'' (1372mm)

20

CUTTING EDGE NLA - 21.37'' (543MM) LONG - Order Ref. 37 - WAS 6502795

21

6577903

EDGE, CUTTING WELD ON BEVELED 54.05'' 54'' (1372mm) long - 6'' (152,4mm) wide - Was 6504322 - A

22

CUTTING EDGE NLA - 21.37'' (543MM) LONG - Order Ref. 37 - WAS 6502796 - A

23

BUCKET SALES - utility 54'' (1372mm)

23

BUCKET SALES - utility 60'' (1524mm)

24

CUTTING EDGE NLA - 12.18'' (309MM) LONG - Order Ref. 37 - WAS 6502928 - A

25

CUTTING EDGE NLA - 18.68'' (474MM) LONG - Order Ref. 37 - WAS 6502927 - A

26

6578956

EDGE, CUTTING BOLT ON BEVELED 54.02'' 54'' (1372mm) long - 4'' (102mm) wide - Was 6502333 - A

26

6578966

CUTTING EDGE 60'' (1524mm) long - 4'' (102mm) wide - with holes for bolt-on cutting edge - Was 6502805 - A

27

CUTTING EDGE NLA - 12.18'' (309MM) LONG - Order Ref. 37 - WAS 6502930 - A

28

CUTTING EDGE NLA - 18.68'' (474MM) LONG - Order Ref. 37 - WAS 6502926 - A

29

BUCKET SALES - Snow and Litter 66'' (1676mm)

30

CUTTING EDGE NLA - 17.25'' (438MM) LONG - Order Ref. 37 - WAS 6503670 - A

31

CUTTING EDGE NLA - 18.25'' (464MM) LONG - Order Ref. 37 - WAS 6503668 - A

32

6578995

CUTTING EDGE 66'' (1676mm) long - 6'' (152,4mm) wide - Was 6502365 - B

32

6579085

CUTTING EDGE 66'' (1676mm) long - 4'' (101mm) wide

32

6578202

EDGE,CUTTING WELD ON BEVELED 66.18'' 66.18'' (1681mm) long - 4'' (102mm) wide - Was 6578208 - B

33

CUTTING EDGE NLA - 17.25'' (438MM) LONG - Order Ref. 37 - WAS 6503609 - A

34

CUTTING EDGE NLA - 18.25'' (464MM) LONG - Order Ref. 37 - WAS 6503667 - A

35

BUCKET SALES - cement - 38'' (865mm)

36

6502713

EDGE,CUTTING WELD ON BEVELED 39.42''

37

6701003

EDGE, CUTTING BULK SINGLE BEV 60'' bulk - .50'' x 6'' x 60'' (12,7mm x 152mm x 1524mm)

37

6701004

EDGE, CUTTING BULK SINGLE BEV 66.3'' bulk - .75'' x 6'' x 66.20'' (19mm x 152mm x 1682mm)

37

6701005

EDGE, CUTTING BULK SINGLE BEV 66.5'' bulk - .50'' x 4'' x 66.40''(12,7mm x 101mm x 1687mm)

38

6579435

EDGE, CUTTING WELD-ON SIDE 7' (2134mm) Long - Cut to Fit - 3/8'' x 3'' (9,5mm x 76,2mm)
