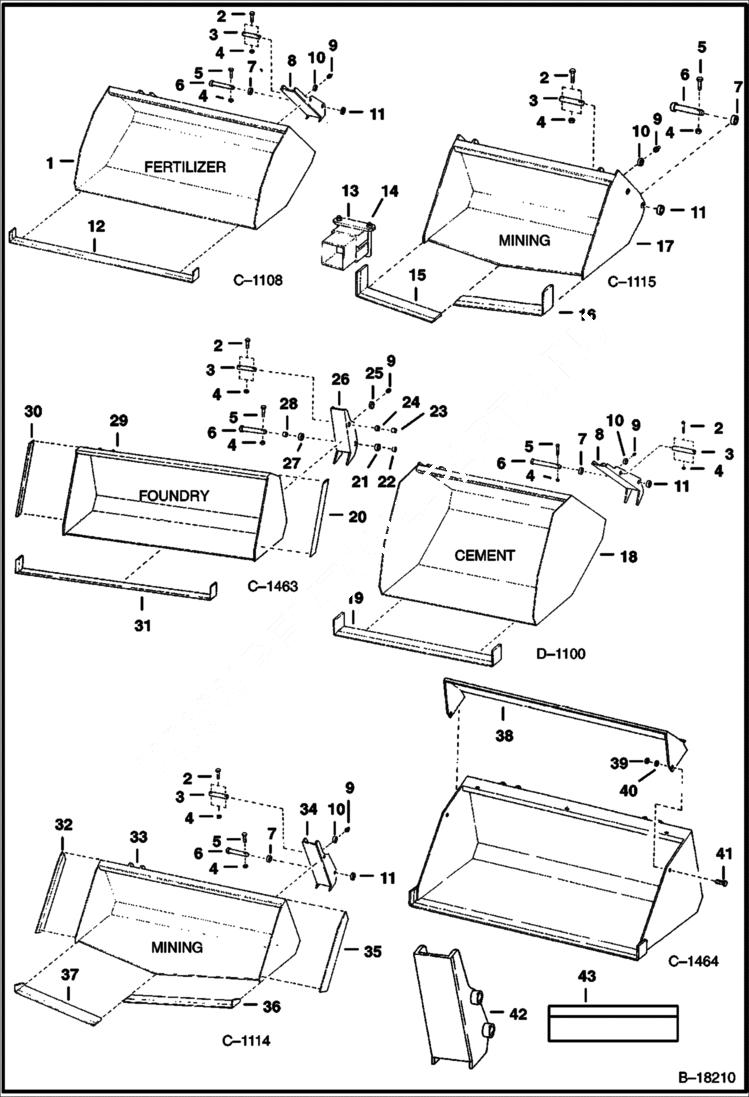

Запчасти Bobcat BUCKETS BUCKETS - 444 & 500 Direct Mount Loader

1

BUCKET NLA - fertilizer

2

17C532

BOLT 5

3

6502783

PIN

4

91D5

NUT 5 Was 81D000005B - A

5

17C536

BOLT

6

6502779

PIN

7

SPACER NLA - weld-on - Was 6502487

8

6504723

CHANNEL L.H. - W/Bushings

8

6504722

CHANNEL R.H. - W/Bushings

9

10H35

FITTING, GREASE 10

10

6502332

BUSHING Weld On

11

6502898

COLLAR lock - Weld On - Was 6502998 - A

12

6578956

EDGE, CUTTING BOLT ON BEVELED 54.02'' 54''L x 4''W - Was 6502333 - A

13

6501217

STOP lift arm - W/Ref. 14

14

4E8

WASHER

14

61D8

NUT 5

15

6504952

EDGE, CUTTING

16

6504953

CUTTING EDGE

17

BUCKET NLA - mining, 38'' wide

18

BUCKET NLA - cement

19

6502713

EDGE,CUTTING WELD ON BEVELED 39.42'' 38''L x 4''W

20

CUTTING EDGE NLA - 21.37 Long - Order Ref. 43 - Was 6502795 - A

21

6502785

BUSHING lock - Weld On

22

6502822

BUSHING Press Fit - Notched

23

6502798

BUSHING Notched

24

6502802

BUSHING Press Fit

25

6502797

BUSHING Weld On

26

6504768

CHANNEL L.H. - W/Bushings

26

6504769

CHANNEL R.H. - W/Bushings

27

6502801

BUSHING Weld On

28

6502762

BUSHING Press Fit

29

BUCKET NLA - foundry

30

CUTTING EDGE NLA - 21.37 Long - Order Ref. 43 - Was 6502796 - A

31

6577903

EDGE, CUTTING WELD ON BEVELED 54.05'' 54''L x 6''W - Was 6504322 - A

32

CUTTING EDGE NLA - 22.87 Long - Order Ref. 43 - Was 6502870 - A

33

BUCKET NLA - mining

34

6504774

CHANNEL L.H. (W/Bushings)

34

6504775

CHANNEL R.H. (W/Bushings)

35

CUTTING EDGE NLA - 22.87 Long - Order Ref. 43 - Was 6502871 - A

36

6502873

EDGE,CUTTING WELD ON BEVELED 54'' 54'' Bucket

36

6506636

CUTTING EDGE 60'' Bucket

37

6502872

CUTTING EDGE 54'' Bucket

37

6506637

CUTTING EDGE 60'' Bucket

38

6504693

SPILL GUARD 54'' Bucket

38

6504837

SPILL GUARD 60'' Bucket

38

6504838

SPILL GUARD 66'' Bucket

39

61D6

NUT 5

40

4E6

WASHER

41

17C616

BOLT 5

42

6509190

BRACKET to change from Bob-Tach to standard

43

6579435

EDGE, CUTTING WELD-ON SIDE 7' long - cut to fit
