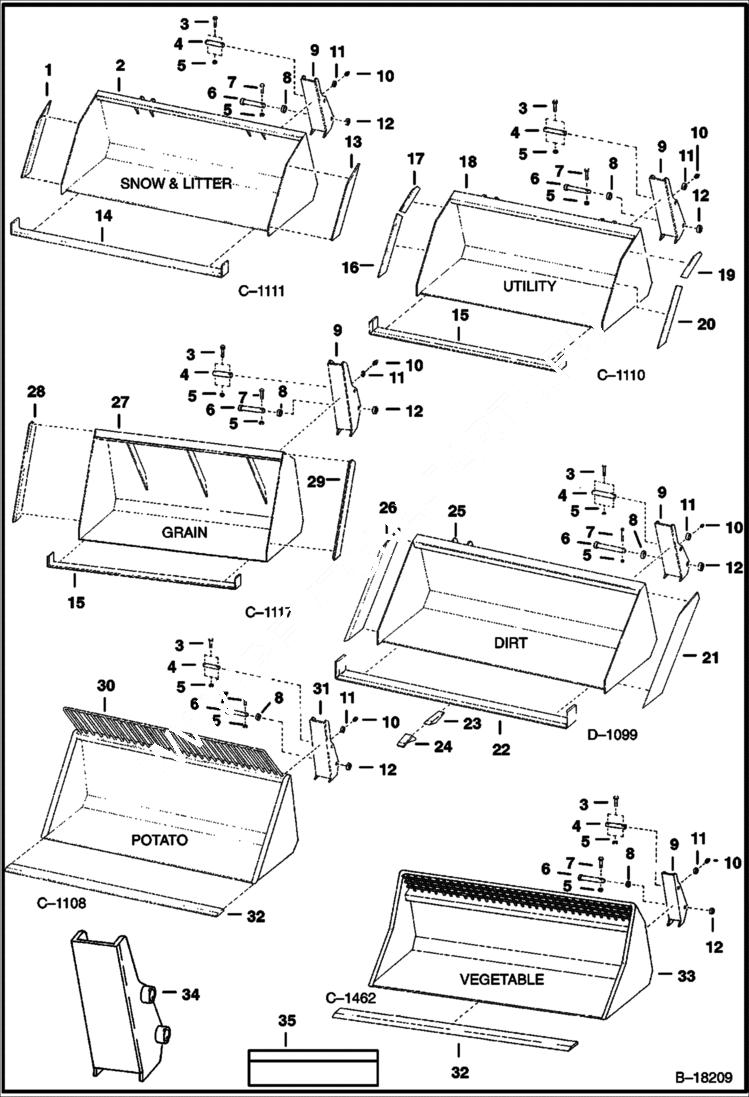

Запчасти Bobcat BUCKETS BUCKETS - 444 & 500 Direct Mount Loader

1

CUTTING EDGE NLA

2

BUCKET NLA - snow & litter

3

17C532

BOLT 5

4

6502783

PIN

5

91D5

NUT 5 Was 81D000005B - A

6

6502779

PIN

7

17C536

BOLT

8

SPACER NLA - weld-on - Was 6502487

9

6504734

CHANNEL L.H. - W/Bushings

9

6504719

CHANNEL R.H. - W/Bushings

10

10H35

FITTING, GREASE 10

11

6502332

BUSHING Weld On

12

6502898

COLLAR lock - Weld On - Was 6502998 - A

13

CUTTING EDGE NLA

14

6578202

EDGE,CUTTING WELD ON BEVELED 66.18'' 66''L x 4''W

15

6578956

EDGE, CUTTING BOLT ON BEVELED 54.02'' 54''L x 4''W

15

6578966

CUTTING EDGE 60''L x 4''W - with holes for bolt-on cutting edge

16

CUTTING EDGE NLA - 18.68 Long - Order Ref. 35

17

CUTTING EDGE NLA - 12.18 Long - Order Ref. 35

18

BUCKET NLA - utility

19

CUTTING EDGE NLA - 18.68 Long - Order Ref. 35

20

CUTTING EDGE NLA - 12.18 Long - Order Ref. 35

21

CUTTING EDGE NLA - 24.50 Long - Order Ref. 35

22

6577903

EDGE, CUTTING WELD ON BEVELED 54.05'' 54''L x 6''W - W/O Holes

22

6713710

EDGE, CUTTING BOLT ON BEVELED 54.02'' W/holes for Bolt-on edge

22

6504321

CUTTING EDGE 60''L x 6''W

23

6560375

SHANK tooth mounting

24

1550017

TOOTH, BUCKET 25

25

BUCKET NLA - dirt

26

CUTTING EDGE NLA - 24.50 LONG - Order Ref. 35

27

BUCKET NLA - grain

28

CUTTING EDGE NLA - 29.56 LONG - Order Ref. 35

29

CUTTING EDGE NLA - 29.56 LONG - Order Ref. 35

30

BUCKET NLA - potato

31

6541361

CHANNEL L.H. - W/Bushings - Was 6506529 - A

31

6506530

CHANNEL R.H. - W/Bushings

32

6504083

EDGE, CUTTING WELD ON 66.31''

33

BUCKET NLA - vegetable

34

6509190

BRACKET to change from Bob-Tach to standard

35

6579435

EDGE, CUTTING WELD-ON SIDE 7' long - cut to length
