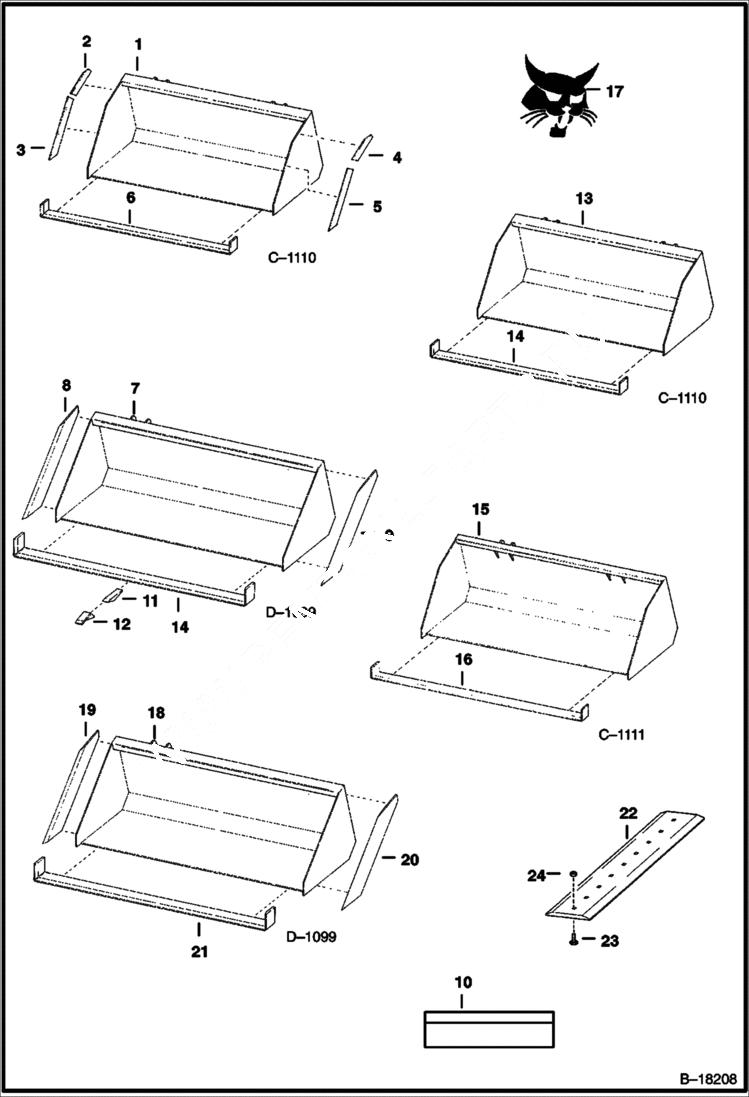

Запчасти Bobcat BUCKETS BUCKETS- 500 Series Loader

1

BUCKET SALES - fertilizer 52''(1321 mm)

2

CUTTING EDGE NLA - 12.12 (308 MM) LONG - Order Ref. 10 - WAS 6557668 - A

3

CUTTING EDGE NLA - 17.87 (454 MM) LONG - Order Ref. 10 - WAS 6557670 - A

4

CUTTING EDGE NLA - 12.12 (308 MM) LONG - Order Ref. 10 - WAS 6557669 - A

5

CUTTING EDGE NLA - 17.87 (454 MM) LONG - Order Ref. 10 - WAS 6557671 - A

6

6554613

EDGE, CUTTING WELD ON BEVELED 53.45''

7

BUCKET SALES - 48'' dirt w/o teeth - Sales #6576882 - Uses 7 teeth

7

6576882

DIRT BUCK SALES - 48'' dirt w/o teeth - Sales #6576882 - Uses 7 teeth

7

6576883

DIRT BUCK SALES - 48'' dirt w/ teeth - Sales #65768835

8

CUTTING EDGE NLA - 21.12 (535 MM) LONG Order Ref. 10 - WAS 6557653 - A

9

CUTTING EDGE NLA - 21.12 (536 MM) LONG Order Ref. 10 - WAS 6557654 - A

10

6579435

EDGE, CUTTING WELD-ON SIDE 7' (2134 mm) Length

11

6560375

SHANK Welds under cutting edge

11

6599640

SHANK Welds on top of cutting edge

11

6707129

SHANK Welds on top of cutting edge - with roll pin hole

12

1550017

TOOTH, BUCKET 25 pin on

12

TOOTH 25 NLA - clamp on - Order 1550017 tooth - Was 6682026 - A

12

18J2028

PIN, ROLL for shank and tooth with hole

13

BUCKET SALES - utility 48'' (1219 mm)

14

6554474

EDGE,CUTTING WELD ON BEVELED 49.45'' 48'' L (1219 mm) x 3'' W (76 mm)

14

6579040

EDGE, CUTTING WELD ON BEVELED 49.42'' 48'' L (1219 mm) x 4'' W (102 mm)

15

BUCKET SALES - lt. mtl. 54'' (1372 mm)

16

6578956

EDGE, CUTTING BOLT ON BEVELED 54.02''

17

6700191

DECAL, LOGO BOBCAT HEAD R.H. - White Bobcat Head - Was 6570599 - A

17

6700192

DECAL L.H. - White Bobcat Head - Was 6570600 - A

18

BUCKET SALES - 54'' (1372 mm) Dirt - W or W/O Teeth - Uses 8 Teeth

19

CUTTING EDGE NLA - 24.80'' (630mm) long - Order Ref. 10

20

CUTTING EDGE NLA - 24.80'' (630mm) long - Order Ref. 10

21

6577903

EDGE, CUTTING WELD ON BEVELED 54.05'' 54.00'' (1372 mm) long x 6.00'' (152 mm) wide

21

6713710

EDGE, CUTTING BOLT ON BEVELED 54.02'' 54.00'' (1372 mm) long x 6.00'' (152 mm) wide - with holes for bolt on cutting edge

22

6661450

EDGE, CUTTING BOLT ON REV 49.39'' Bolt On - 48'' (1219mm)

22

6661451

EDGE, CUTTING BOLT-ON 55'' See BTI279

23

39C1032

BOLT Was 6660297 - A

24

85D10

NUT, 5 Was 6660298 - A
