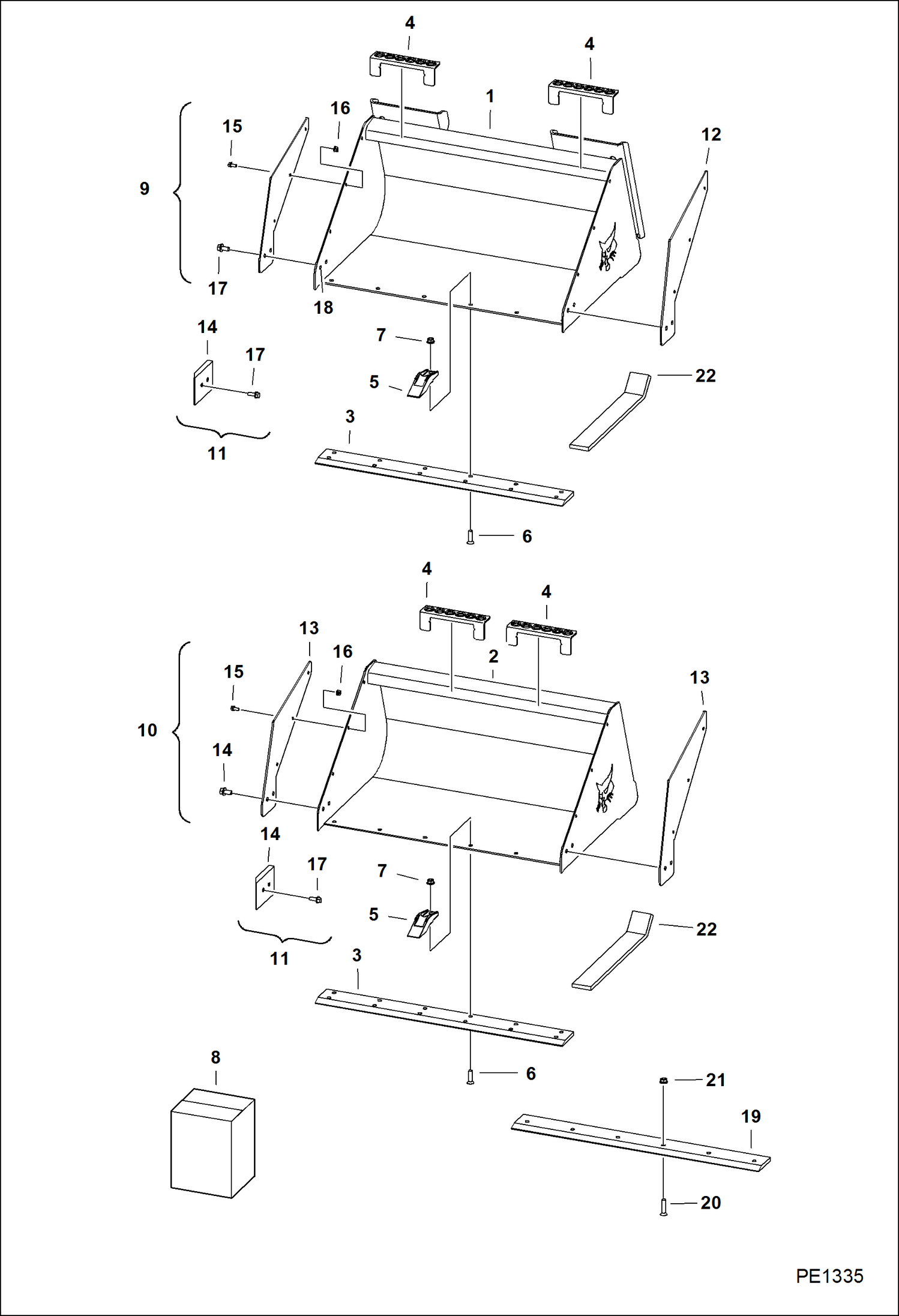

Запчасти Bobcat BUCKETS BUCKETS- 463 Loader

1

BUCKET SALES - contr/ind. - 36'' (914mm) - SALES #6728249

1

BUCKET SALES - constr/ind. - 44'' (1118mm) - SALES #6728250

2

BUCKET SALES - Utility - 36'' (914mm) - SALES #6728251

2

BUCKET SALES - Utility - 44'' (1118mm) - SALES #6728252

3

6726877

EDGE, CUTTING WELD-ON 36''

3

6727237

EDGE, CUTTING WELD-ON 44''

4

6716014

STEP

5

TOOTH NSS - Order Ref. 8 - (6) for 36

6

9G828

BOLT

7

97D8

NUT

8

6728247

KIT, TOOTH BUCKET 7 7 tooth - contains 7 teeth W/nuts & bolts

8

KIT NLA - 50 tooth - contains 50 teeth with nuts & bolts - Was 6728248 - A

9

6729085

KIT side edges-for constr/ind. bucket with (2) of Ref. 12 , (6) of Ref. 15, (6) of Ref. 16, (4) of Ref. 17 & (4) of Ref. 18

10

6729086

KIT side edge - for utility bucket - W/ (2) of Ref. 13, (6) of Ref. 15, (6) of Ref. 16,(4)of Ref. 17&(4)of Ref. 18

11

6729084

KIT, EDGE CUTTING side cutter - with (2) of Ref. 14 & (4) each of Ref. 17

12

6729066

EDGE, CUTTING WELD-ON SIDE for constr/ind bucket

13

6729087

EDGE, CUTTING WELD-ON SIDE for utility bucket

14

6719407

EDGE, CUTTING BOLT-ON 4''

15

17C612

BOLT 5 Was 35C000614B - B

16

57D6

NUT 5 Was 55D000006B - B

17

17C816

BOLT Was 35C000814B - B

18

57D8

NUT 10 Was 97D000008B - B

19

6729042

EDGE, CUTTING BOLT-ON 36''

19

6729043

EDGE, CUTTING BOLT-ON 44''

20

9G824

SCREW (6) for 36'' & (7) for 44'' buckets

21

97D8

NUT (6) for 36'' & (7) for 44'' buckets

22

6726873

SKID BAR
