Запчасти Bobcat BUCKETS BUCKETS - MT50, MT52, MT55 Loader

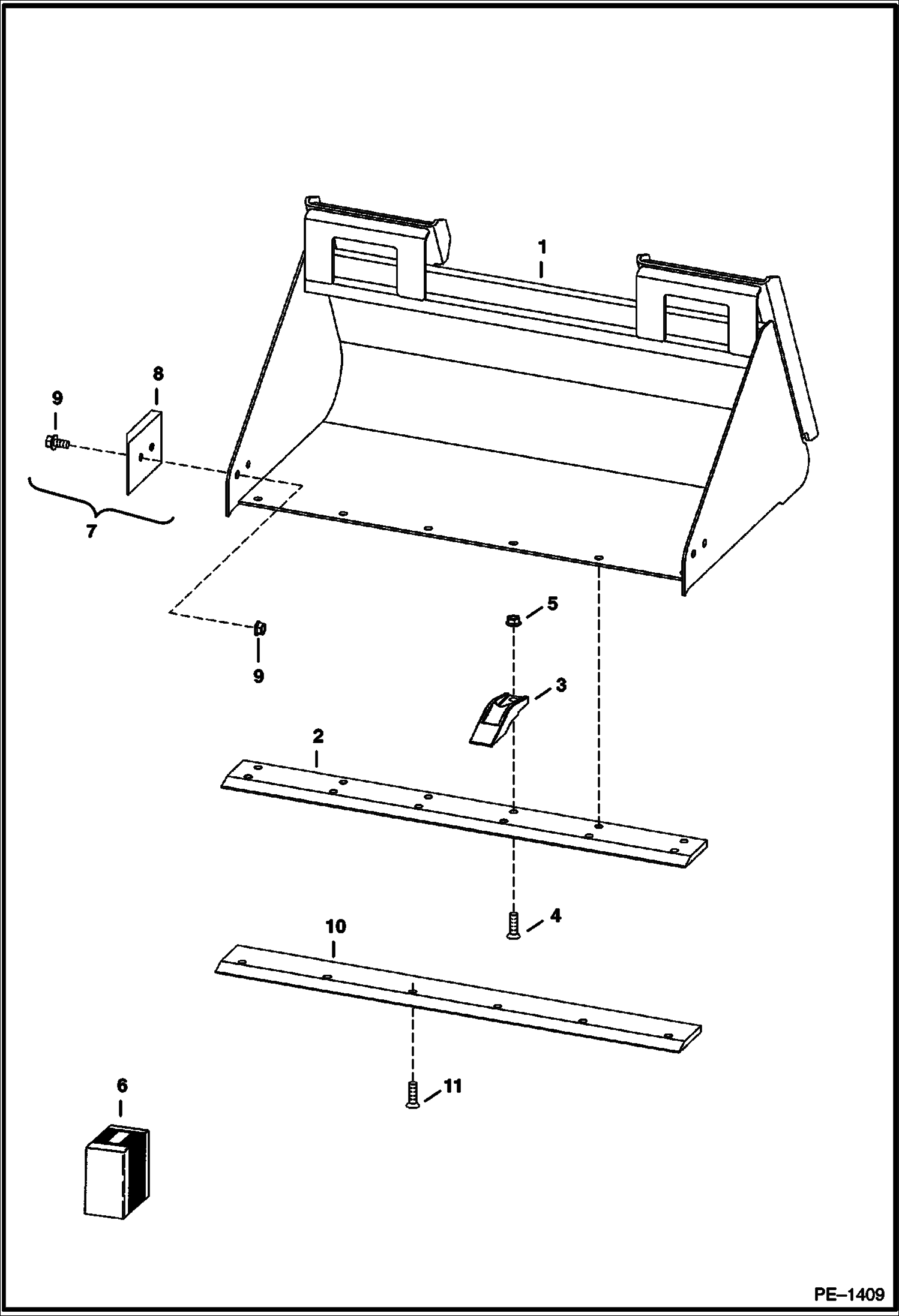

Схема запчастей Bobcat BUCKETS - BUCKETS - MT50, MT52, MT55 Loader

Артикул

Название

Примечание

Количество

1

BUCKET SALES #6731520 - 36'' const/ind - MT50, MT52

1

BUCKET SALES #6728251 - 36'' utility - MT50, MT52

1

BUCKET SALES #6728250 - 44'' const/ind - MT55

1

BUCKET SALES #6728252 - 44'' utility - MT55

2

6726877

EDGE, CUTTING WELD-ON 36''

2

6727237

EDGE, CUTTING WELD-ON 44''

3

TOOTH NSS - Order Ref. 6, (6) for 36'' & (7) for 44'' buckets

4

9G828

BOLT

5

97D8

NUT

6

6728247

KIT, TOOTH BUCKET 7 7 tooth - contains 7 teeth W/nuts & bolts

6

KIT NLA - 50 tooth - contains 50 teeth with nuts & bolts - Was 6728248 - A

7

6729084

KIT, EDGE CUTTING side cutter - with (2) of Ref. 8 & (4) each of Ref. 9

8

6719407

EDGE, CUTTING BOLT-ON 4''

9

BOLT NLA - used without side edges - Order either 31C816 or 17C816 - Was 31C000814B - A

9

31C816

BOLT Use with side edges

10

6729042

EDGE, CUTTING BOLT-ON 36''

10

6729043

EDGE, CUTTING BOLT-ON 44''

11

9G824

SCREW (6) for 36''

Выбрано товаров: 18
