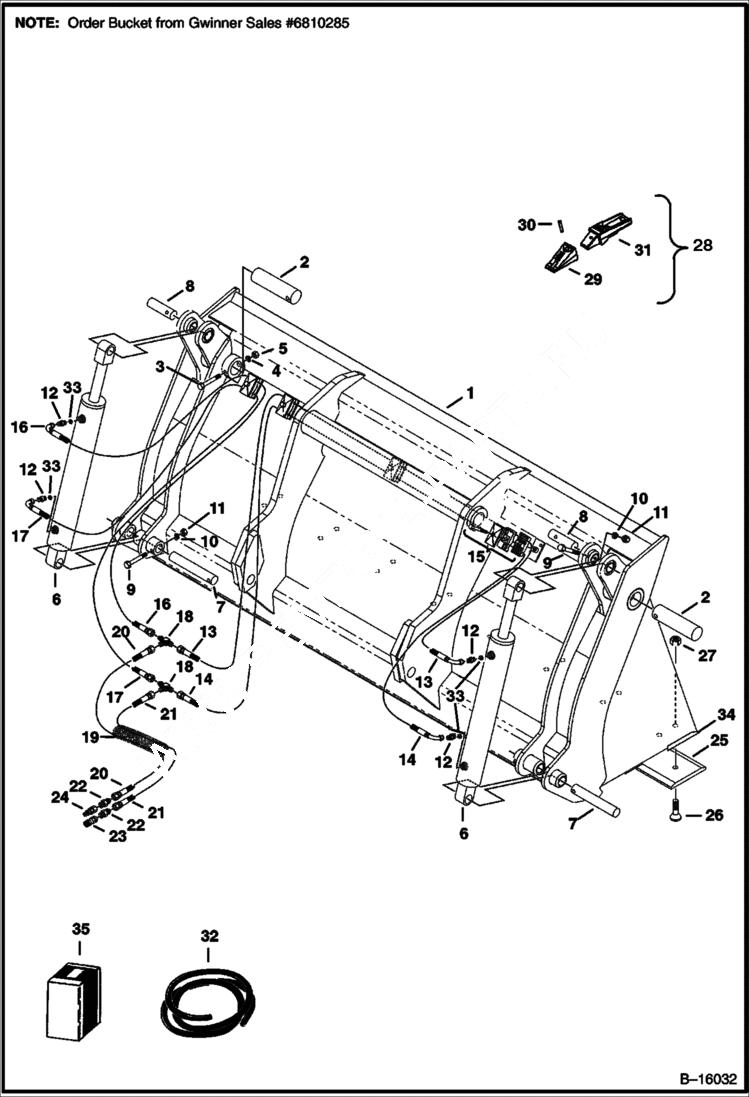

Запчасти Bobcat BUCKETS 80 COMBINATION BUCKET (028500101 - 102) Телескопические мини-погрузчики

1

BUCKET SALES #6810285 - combination - 2032 mm (80'') - wide

2

6678180

PIN pivot

3

18C856

SCREW

4

4E8

WASHER

5

86D8

NUT

6

CYLINDER See Illustration CYLINDER/ B16041

7

6678181

PIN

8

6678182

PIN

9

17C640

BOLT 5

10

4E6

WASHER

11

85D6

NUT, 5

12

15KB0606

FITTING, HYD CONNECTOR W/Ref. 33

12

97K6

O RING

13

6678168

HOSE

14

6678171

HOSE

15

6678193

CLAMP ASSY

16

6678162

HOSE

17

6678164

HOSE

18

10K5

TEE Was 10KN00005B - A

18

97K6

O RING

19

SLEEVE NLA - 762 mm (30'') long - Order Ref. 32

20

6678160

HOSE

21

6678161

HOSE

22

6578812

ADAPTER

22

79K12

O RING 10

23

6672960

COUPLER, FF FEMALE straight

24

6674688

COUPLER, FF MALE straight

25

6678191

EDGE, CUTTING BOLT-ON 80''

26

6729510

BOLT

27

57D10

NUT

28

TOOTH ASSY NLA - W/Ref. 29-31 - Order Ref. 35

29

7107319

TOOTH, BUCKET 10 See BTI376 - 114,3 mm (4.5'') long - Was 6716001 - A

30

14J3732

PIN, STRAIGHT 5 See BTI376

30

6737326

PIN, FLEX BUCKET TOOTH See BTI376

31

SHANK NLA - Order Ref. 35

32

6652367

HOSE COVER bulk - Sold Per Foot

33

99K6

O RING

34

6679704

EDGE, CUTTING WELD-ON 80''

35

6737322

KIT, TOOTH BUCKET 8 8 tooth - contains 8 tooth assy's with nuts and bolts - Was 6717946 - A
