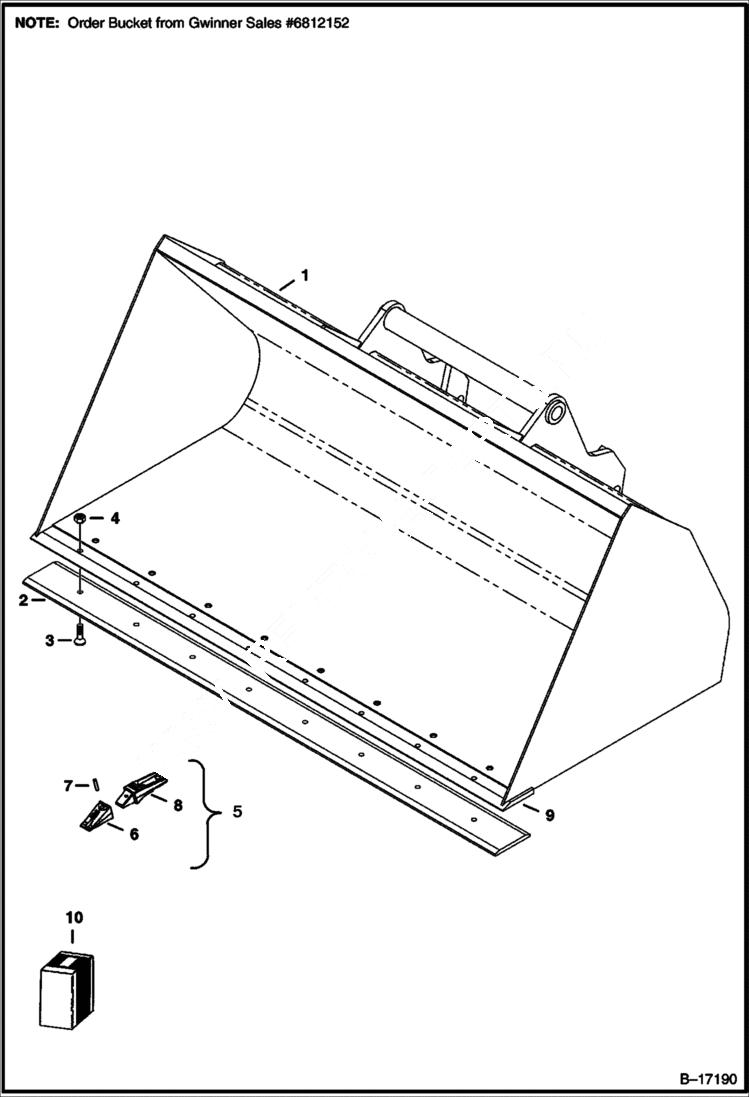

Запчасти Bobcat BUCKETS 96 BUCKET (215200101 & Above) Телескопические мини-погрузчики

1

BUCKET SALES #6810283 - 2438,4 mm (96'') wide

2

6680982

EDGE, CUTTING BOLT-ON 96'' 3/4'' holes

3

39C1240

BOLT Was 6729510 - B

4

85D12

NUT, 5 Was 57D000010B - A

5

TOOTH ASSY NLA - W/Ref. 6-8 - Order Ref. 10

6

7107319

TOOTH, BUCKET 10 See BTI376 - 114,3 mm (4.5'') long - Was 6716001 - A

7

14J3732

PIN, STRAIGHT 5 See BTI376

7

6737326

PIN, FLEX BUCKET TOOTH See BTI376

8

SHANK NLA - Order Ref. 10

9

6680983

EDGE, CUTTING WELD-ON 96''

10

6737322

KIT, TOOTH BUCKET 8 8 tooth - contains 8 tooth assy's with nuts and bolts - Was 6717946 - A
