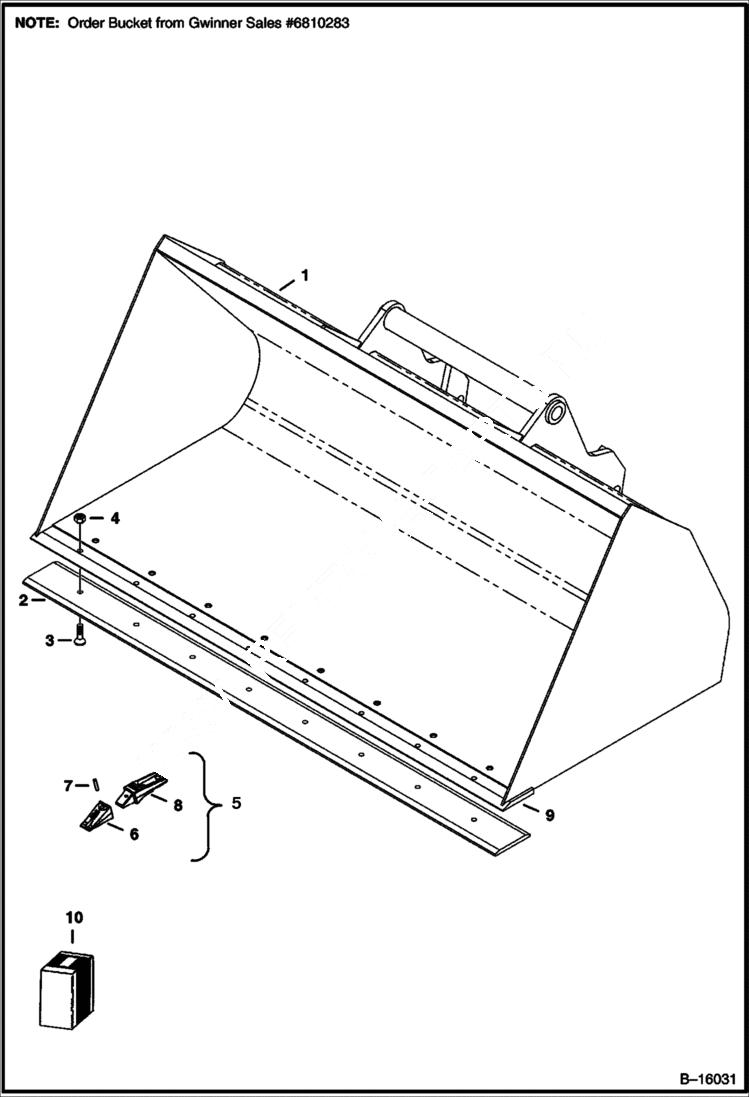

Запчасти Bobcat BUCKETS 90 UTILITY BUCKET (028300101 & Above) Телескопические мини-погрузчики

1

BUCKET SALES #6810283 - 2286 mm (90'') wide

2

6678192

EDGE, CUTTING, BOLT-ON 90'' 8 hole

3

6729510

BOLT

4

57D10

NUT

5

TOOTH ASSY NLA - W/Ref. 6-8 - Order Ref. 10

6

7107319

TOOTH, BUCKET 10 See BTI376 - 114,3 mm (4.5'') long - Was 6716001 - A

7

14J3732

PIN, STRAIGHT 5 See BTI376

7

6737326

PIN, FLEX BUCKET TOOTH See BTI376

8

SHANK NLA - Order Ref. 10

9

6679705

EDGE, CUTTING WELD-ON 90''

10

6737322

KIT, TOOTH BUCKET 8 8 tooth - contains 8 tooth assy's with nuts and bolts - Was 6717946 - A
