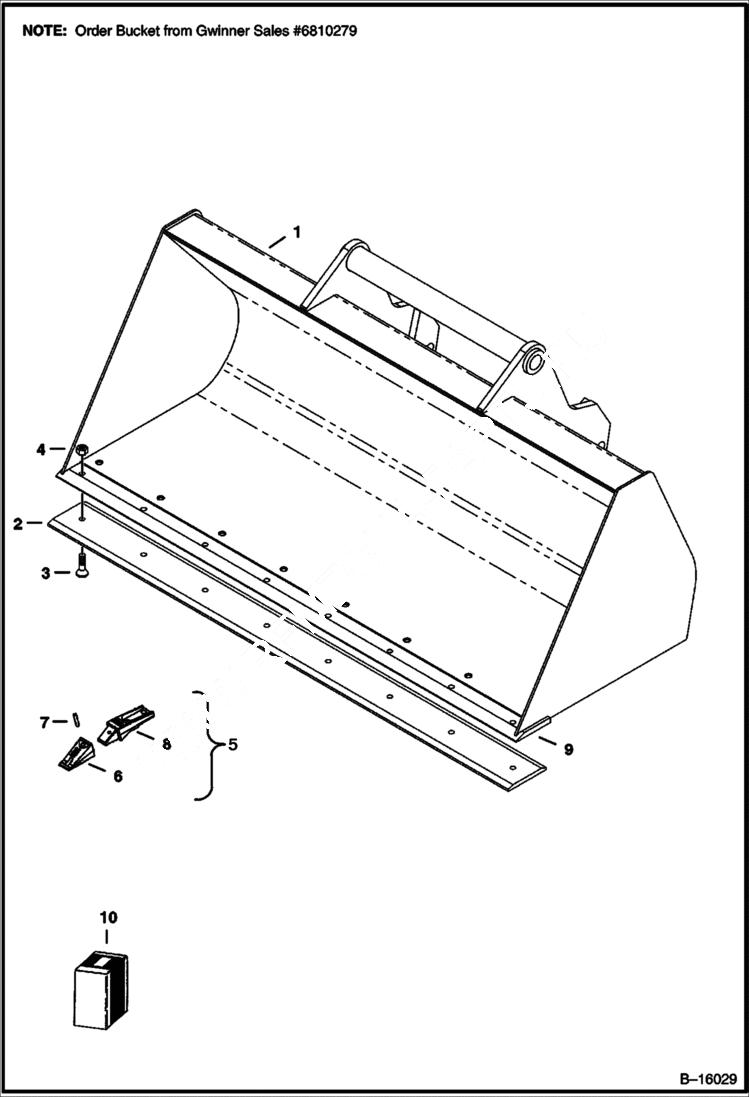

Запчасти Bobcat BUCKETS 80 BUCKET (027900101 & Above) Телескопические мини-погрузчики

1

BUCKET SALES #6810279 - 2032 mm (80'') wide

2

6678191

EDGE, CUTTING BOLT-ON 80''

3

6729510

BOLT

4

57D10

NUT

5

TOOTH, BUCKET ASSY NLA - W/Ref. 6-8 - Order Ref. 10

6

6737325

TOOTH, BUCKET 10 See BTI376 140 mm (5.5'') long

6

7107319

TOOTH, BUCKET 10 See BTI376 - 114,3 mm (4.5'') long - Was 6716001 - A

7

PIN See BTI376

8

SHANK See BTI376 NLA - Order Ref. 10

9

6679704

EDGE, CUTTING WELD-ON 80''

10

6737322

KIT, TOOTH BUCKET 8 See BTI376 Ref. 3-5, 6 (6737325 tooth), 7 & 8 - Was 6717946 - A

10

7107336

KIT, TOOTH BUCKET 8 See BTI376 Ref. 3-5, 6 (7107319 tooth) 7 & 8
