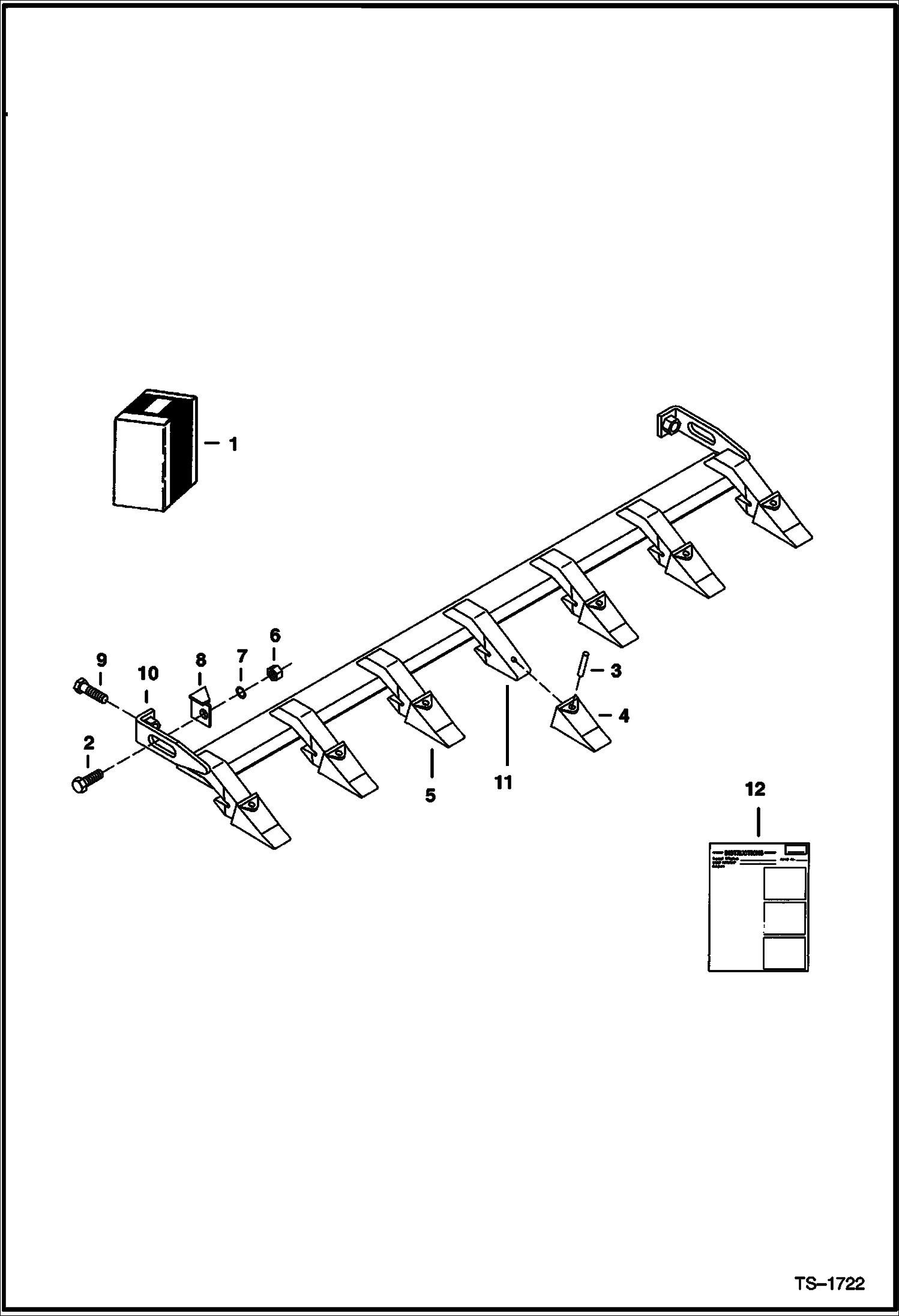

Запчасти Bobcat BUCKET BITE BUCKET BITE Teeth Mounted With Vertical Pin Loader

1

7115543

KIT, BUCKET BITE 44'' (1118 mm) - Ref. 2-12 - 6 teeth - Used on C/I & Utility Buckets

1

7125548

KIT, BUCKET BITE 44'' (1118 mm) - Ref. 2-12 - 6 teeth - Used on General Purpose & Dirt Buckets

1

6905521

KIT, BUCKET BITE 48'' (1219 mm) - Ref. 2-12 - 6 teeth

1

7125549

KIT, BUCKET BITE 50'' (1270 mm) - Ref. 2-12 - 6 teeth

1

6905522

KIT, BUCKET BITE 54'' (1372 mm) - Ref. 2-12 - 7 teeth

1

7125550

KIT, BUCKET BITE 56'' (1422 mm) - Ref. 2-12 - 7 teeth

1

6905523

KIT, BUCKET BITE 60'' (1524 mm) - Ref. 2-12 - 7 teeth - Also for 60'' Combo Bucket

1

6905314

KIT, BUCKET BITE 62'' (1575 mm) - Ref. 2-12 - 7 teeth

1

6905315

KIT, BUCKET BITE 68'' 66'' (1676 mm) / 68'' (1727 mm) - Ref. 2-12 - 8 teeth - will fit on 66'' Bucket, 68'' Round Back Bucket or 66'' Combo Bucket

1

6905316

KIT, BUCKET BITE 72'' (1829 mm) / 74'' (1880 mm) - Ref. 2-12 - 9 teeth - will fit on 72'' Bucket or 74'' Round Back Bucket

1

6905524

KIT, BUCKET BITE 74'' (1880 mm) - 9 teeth - Combo Bucket

1

6905525

KIT, BUCKET BITE 77'' (1956 mm) - Ref. 2-12 - 9 teeth

1

6905526

KIT, BUCKET BITE 78'' (1981 mm) - Ref. 2-12 - 9 teeth

1

6905317

KIT, BUCKET BITE 80'' (2032 mm) - Ref. 2-12 - 9 teeth

2

17C1232

BOLT

3

14J3732

PIN, STRAIGHT 5 See BTI376

3

6737326

PIN, FLEX BUCKET TOOTH See BTI376

4

7107319

TOOTH, BUCKET 10 See BTI376 - 114,3 mm (4.5'') long - Was 6716001 - A

5

7107333

TOOTH ASSY Ref. 3, 4 & 11 - Was 6905300 - A

6

61D12

NUT

7

25E27

WASHER flat

7

23E12

WASHER Was 4E12 - A

8

6958357

MOUNT, SLIDE L.H. - Was 6656384 - A

8

6958357

MOUNT, SLIDE R.H. - Was 6656385 - A

9

6657025

BOLT 2.50'' long

9

6665905

BOLT 3.00'' long

10

6958356

BRACKET Was 6661519 - A

11

SHANK NSS - Order Ref. 5

12

6900922

INSTRUCTIONS
