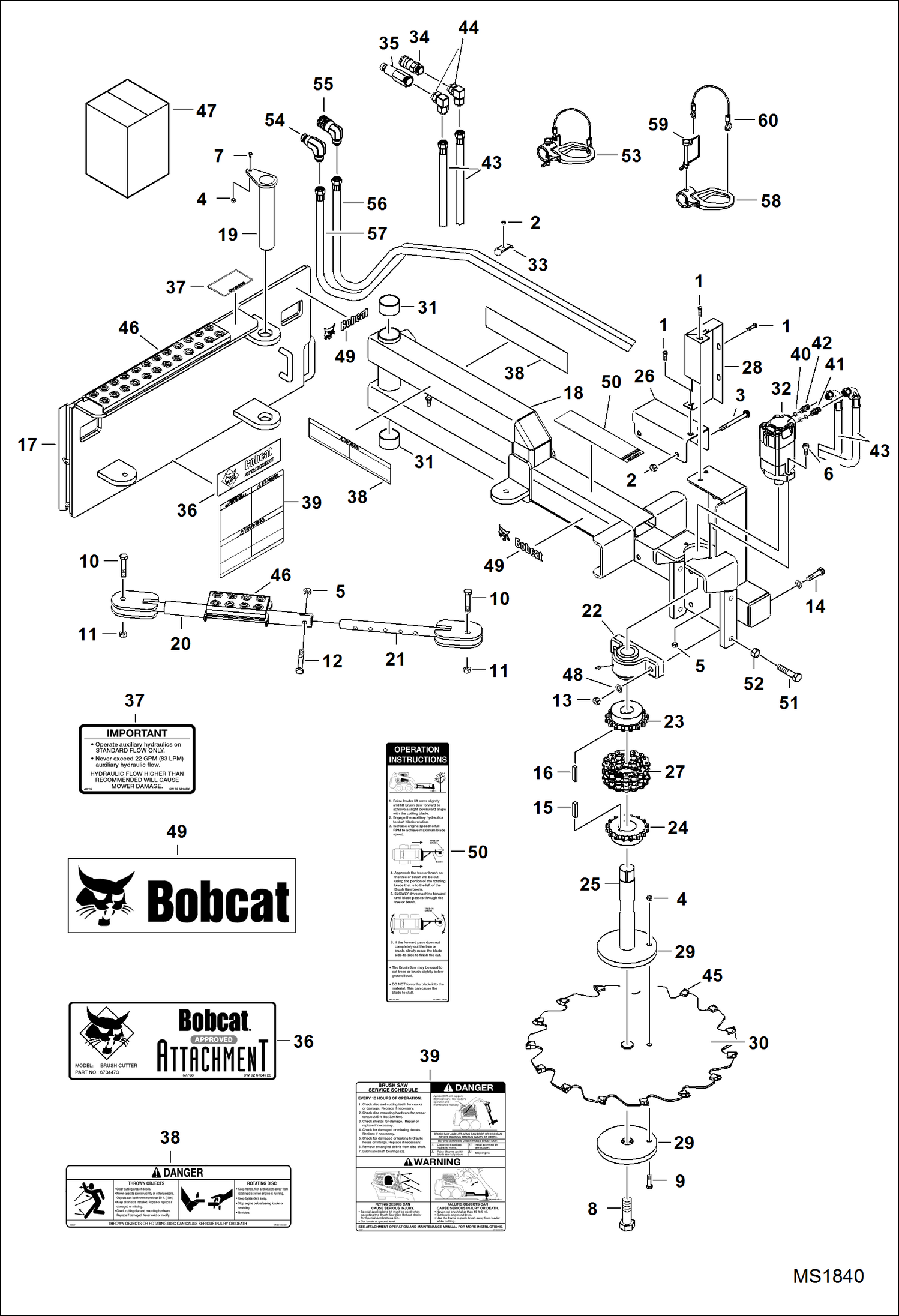

Запчасти Bobcat BRUSH SAW BRUSH SAW (0055) (A13P) Loader

1

17C610

BOLT

2

89D6

NUT

3

37C680

BOLT

4

89D8

NUT

5

87D8

NUT

6

73G828

BOLT

7

17C828

BOLT

8

18C1224

BOLT

9

17C836

BOLT

10

17C1236

BOLT

11

89D12

NUT

12

17C840

BOLT

13

89D10

NUT

14

17C1048

BOLT

15

7J5104

KEY

16

7J4102

KEY 28 mm (1.12'') long (3/8'' key)

16

7J4110

KEY 41 mm (1.62'') long (5/16'' key)

17

6682220

MOUNT

18

6682221

BOOM

19

6682222

PIN

20

6682223

TUBE

21

6682224

LINK

22

6682205

BEARING

23

6682206

SPROCKET motor (5/16'' key way)

24

6682207

SPROCKET shaft (3/8'' key way)

25

6682225

SHAFT

26

6682226

SHIELD

27

6682213

CHAIN

28

6682227

SHIELD

29

6682210

HUB

30

BLADE, CIRCULAR CARBIDE TIP NLA - W/Ref. 45 - 8 teeth

30

6682228

BLADE, CIRCULAR CARBIDE TIP W/Ref. 45 - 15 teeth

31

6682214

BUSHING

32

6682215

MOTOR, DRIVE HYD See Illustration BRUSH SAW/ B18965D

33

6682216

BRACKET

34

6672960

COUPLER, FF FEMALE straight

35

6674688

COUPLER, FF MALE straight

36

6734725

DECAL Bobcat approved attachment

37

7152860

DECAL, FLOW MAX See Illustration BRUSH SAW/ NA6218 - Was 6814635 - C

37

7152861

DECAL, FLOW MAX See Illustration BRUSH SAW/ NA6218 - no-text

38

6734723

DECAL, DANGER See Illustration BRUSH SAW/ NA6218

38

7199334

DECAL, DANGER See Illustration BRUSH SAW/ NA6218 - no-text

39

6734724

DECAL, OPERATION See Illustration BRUSH SAW/ NA6218

39

7199335

DECAL, OPERATION See Illustration BRUSH SAW/ NA6218 - no-text

40

79K10

O RING 10

41

6653685

RESTRICTOR

42

15KB1010

FITTING, HYD CONNECTOR

43

6682193

HOSE Use with straight couplers

44

17KB1212

FITTING, HYD ELBOW

45

TOOTH NLA - straight shank

45

6682212

TOOTH curved shank

46

6905990

STEP

47

6734478AR

TRANSLATION KIT

47

6734478BR

TRANSLATION KIT

47

6734479AR

DECAL KIT

47

6734479BR

DECAL KIT

47

6734479JP

DECAL KIT

47

7121050AR

TRANSLATION KIT

47

7121050BR

TRANSLATION KIT

47

7121051AR

DECAL KIT

47

7121051BR

DECAL KIT

47

7121051JP

DECAL KIT

48

25E26

WASHER

49

7109473

DECAL, LOGO BOBCAT AND HEAD

50

7123921

DECAL, OPERATION See Illustration BRUSH SAW/ NA6218

50

7199336

DECAL, OPERATION See Illustration BRUSH SAW/ NA6218 - no-text

51

17C1228

BOLT

52

61D12

NUT

53

7161953

GUIDE, HOSE ASSY Ref. 58-60

54

7168432

COUPLER, FF MALE 90 degree

55

7168433

COUPLER, FF FEMALE 90 degree

56

7185732

HOSE, HYD 3353 mm (132'') long - 90 degree fitting (.875'' thread) & 1.0625'' thread - Use 90 degree couplers

57

7185733

HOSE, HYD 3175 mm (125'') long - 90 degree fitting (.875'' fitting) & 1.0625'' fitting - Use 90 degree couplers

58

GUIDE NLA - Order Ref. 53

59

7161559

PIN, SNAPPER

60

CABLE ASSY NSS - 304,8 mm (12'') long - Order 6558309 wire rope & (2) 6558310 sleeve - Was 7167775 - D

60

6558309

WIRE ROPE bulk - sold per foot

60

6558310

SLEEVE
