Запчасти Bobcat BREAKERS BREAKER (Breaker Mount) (Use on 907) Loader

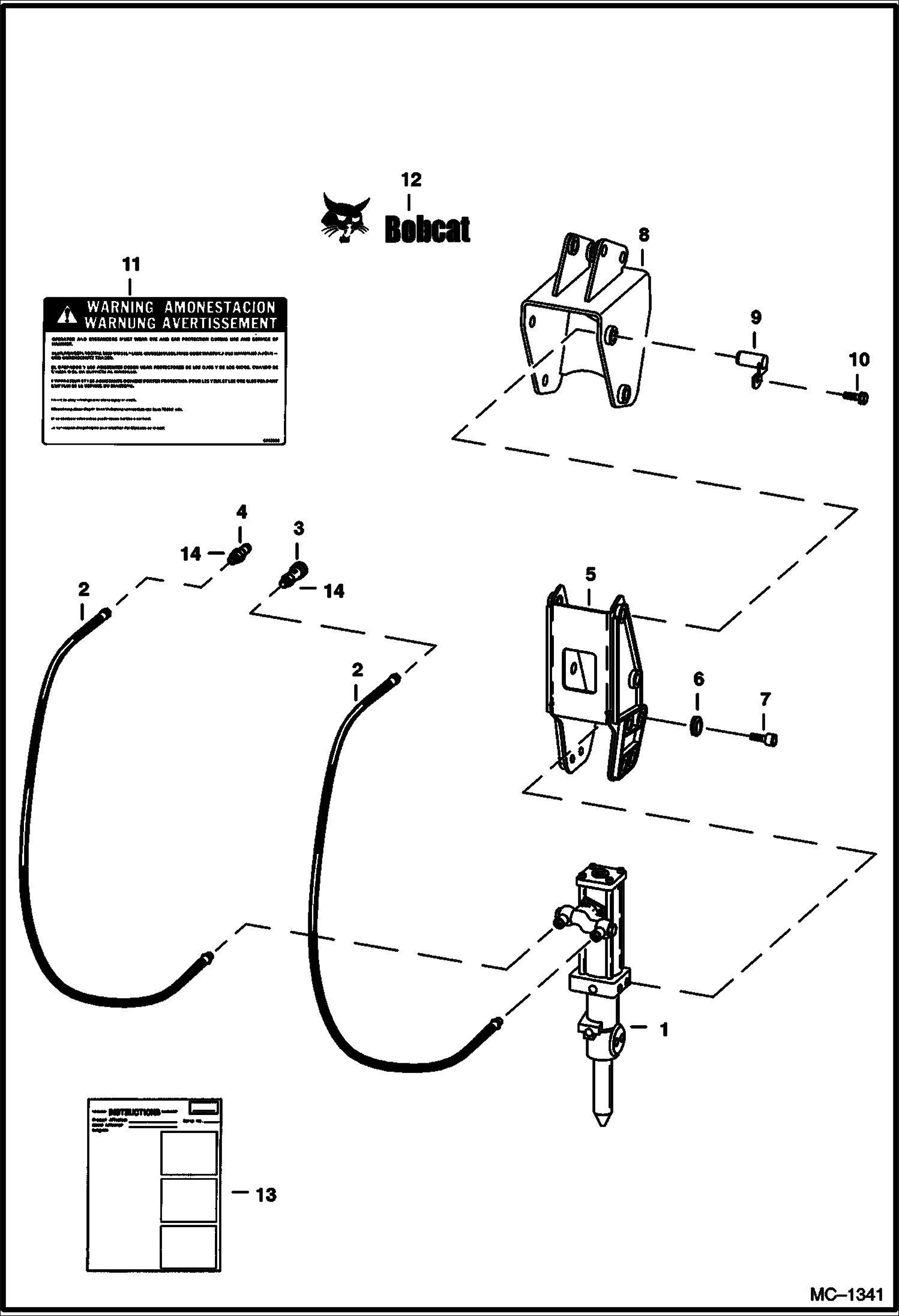

Схема запчастей Bobcat BREAKERS - BREAKER (Breaker Mount) (Use on 907) Loader

Артикул

Название

Примечание

Количество

1

6649335

BREAKER See Illustration BREAKER/ B12467

2

6536308

HOSE

3

6598758

COUPLER, POPPET FEMALE straight

3

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

3

6680017

COUPLER, FF FEMALE heavy duty

4

6598757

COUPLER, POPPET MALE straight

4

6674688

COUPLER, FF MALE straight - Was 6667808 - A

4

6679841

SEAL Was 6672026 - A

5

6530572

FRAME

6

WASHER NLA - Was 6650272 - A

7

BOLT NLA - Was 6665424 - A

8

6530569

FRAME ASSY

9

6575689

PIN

10

84G3716

SCREW 5

11

6572074

DECAL warning - Was 6563596 - A

12

6727323

DECAL, LOGO BOBCAT AND HEAD L.H. - Was 6567987 - A

12

6727324

DECAL, LOGO BOBCAT AND HEAD R.H. - Was 6567988 - A

13

6720318

INSTRUCTIONS

14

15K7

FITTING Use with poppet couplers

14

15KB1012

FITTING, HYD CONNECTOR Use with flush face couplers - Was 755055B - A

Выбрано товаров: 20
